3623506C91
PANEL SIDE RH 12V SINGLE C
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$214.95
$257.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL, SIDE SINGLE CAB RIGHT 12 VOLT

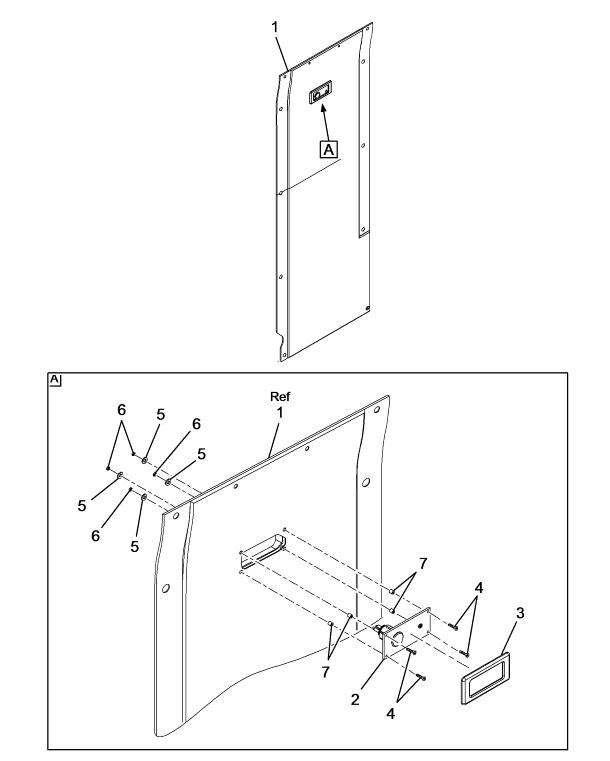

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL RIGHT HAND FILLER ASSEMBLY, * W/CABINETS | 1 | 3623598C1 |
| PANEL CONNECTOR 12VDC SINGLE CABLE | 1 | 3598900C1 |
| BEZEL, TRIM TV ADAPTER AND ANTENNA | 1 | 3601138C1 |
| FLAT HD MACH #6-32 UNC X 1/4 LG | 4 | 28204R1 |
| WASHER .06" THICK .194" I.D. X 1 1/16" O.D. | 4 | 250097R1 |
| NUT, TERMINAL | 4 | 107361H |
| SPACER, FILLER TRIM | 4 | 3623721C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
