3616830C92
PANEL, DOOR, LEFT HAND REAR UPGRADE POWER
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$144.95
$173.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
PANEL, DOOR, LEFT HAND REAR UPGRADE POWER

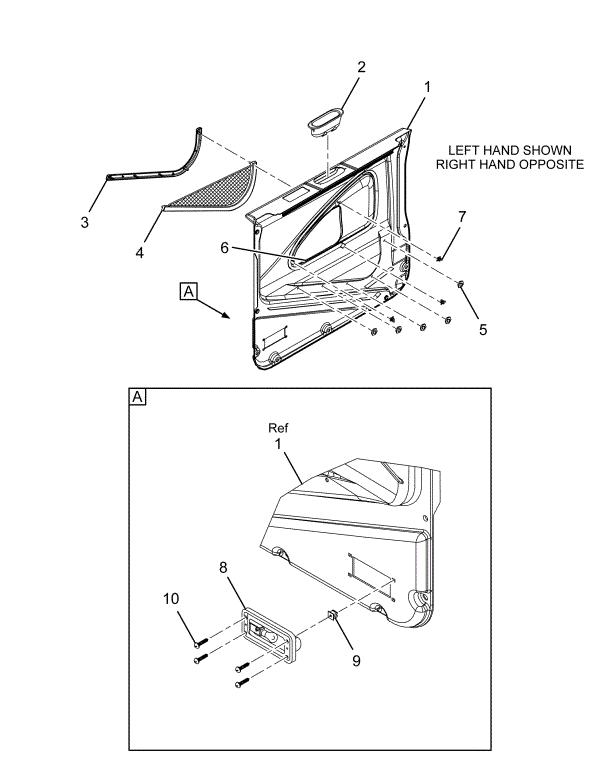

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL, REAR DOOR TRIM, LEFT HAND UPGRADE POWER | 1 | 3741603C1 |
| SCREW, SELF TAPPING OVAL HEAD #8 X 3/4" | 4 | 504183C1 |
| HANDLE, DOOR INSIDE, PULL CUP | 1 | 3627819C2 |
| PANEL, MAP POCKET, LEFT HAND | 1 | 3742138C1 |
| NET RESTRAINT MAP POCKET NET ASSEMBLY LH | 1 | 3742183C1 |
| NUT, PAL | 5 | 3742178C1 |
| PANEL, CLOTH BOLSTER INSERT, LEFT HAND | 1 | 3742136C1 |
| FASTENER, SPRING CLIP | 3 | 3616801C1 |
| LIGHT, DOOR COURTESY | 1 | 1658560C91 |
| NUT, TAPPING SPEED #8 OR #10 | 4 | 498935C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
