3612556C92

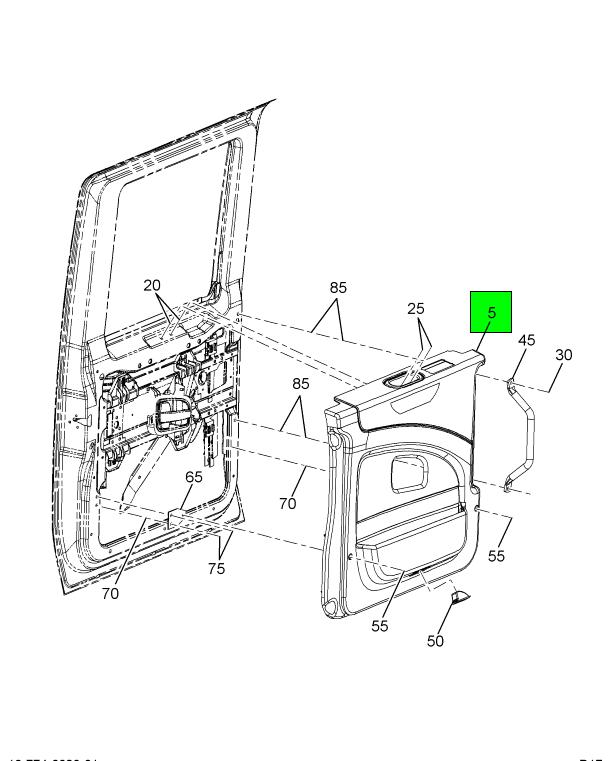

PANEL ASSEMBLY, DOOR TRIM RIGHT HAND REAR STANDARD POWERED
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$149.95
$179.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL ASSEMBLY, DOOR TRIM RIGHT HAND REAR STANDARD POWERED
Weight
23.9998 lbs

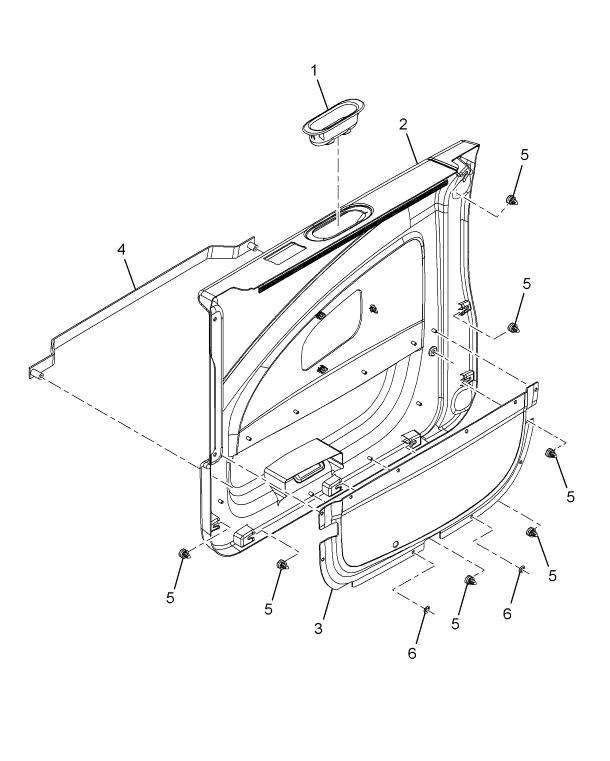

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| HANDLE, DOOR INSIDE PULL CUP | 1 | 3611337C1 |
| PANEL DOOR SUBSTRATE, REAR RIGHT HAND, POWER LAMP | 1 | 3612378C1 |
| POCKET, DOOR REAR CLOSEOUT RIGHT HAND | 1 | 3611861C1 |
| REINFORCEMENT, DOOR POCKET REAR RIGHT | 1 | 3612190C1 |
| FASTENER, DOOR TRIM RETAINER | 7 | 3805943C1 |
| FASTENER, PUSH NUT | 10 | 3621473C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
