3612539C93

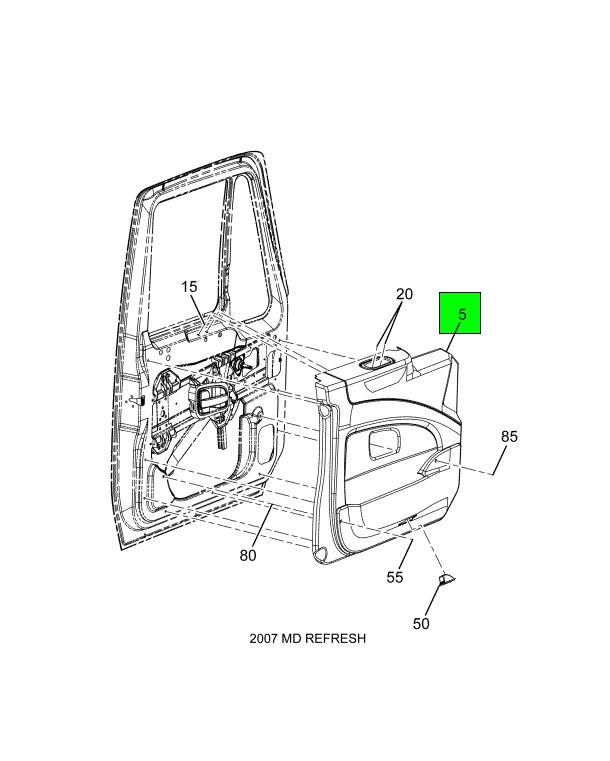

PANEL DOOR TRIM LEFT HAND FRONT STANDARD MAN PKT POWER MIRROR
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$789.95
$947.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL DOOR TRIM LEFT HAND FRONT STANDARD MAN PKT POWER MIRROR
Weight
7.02 lbs

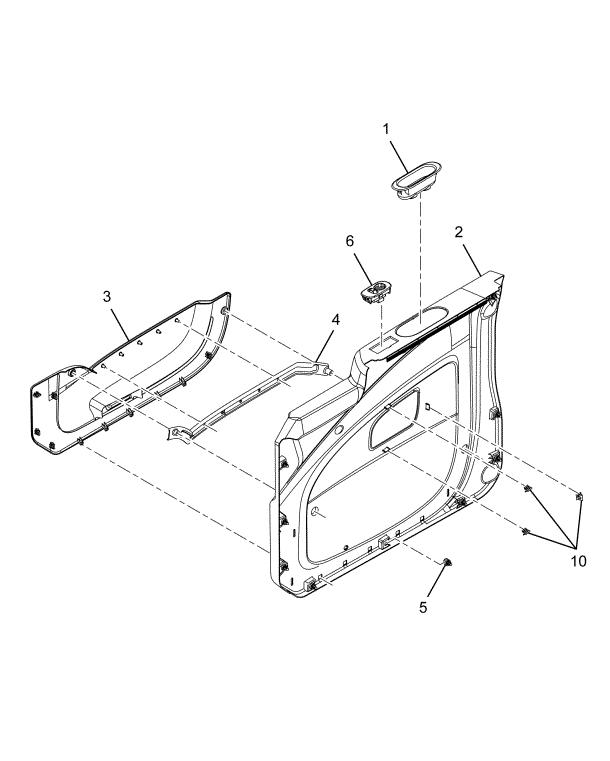

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| HANDLE, DOOR INSIDE, PULL CUP | 1 | 3611337C2 |
| FASTENER, SPRING CLIP | 3 | 3616801C1 |
| PANEL DOOR SUBSTRATE FR LEFT HAND MANUAL POWER MIRROR | 1 | 3612268C2 |
| POCKET, DOOR FRONT MAP LEFT | 1 | 3611862C1 |
| REINFORCEMENT, DOOR POCKET LEFT HAND | 1 | 3612035C1 |
| FASTENER, DOOR TRIM RETAINER | 9 | 3805943C1 |
| SWITCH, MIRROR ADJUSTMENT | 1 | 2505204C1 |
| SWITCH, MIRROR ADJUSTMENT | 1 | 3599972C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
