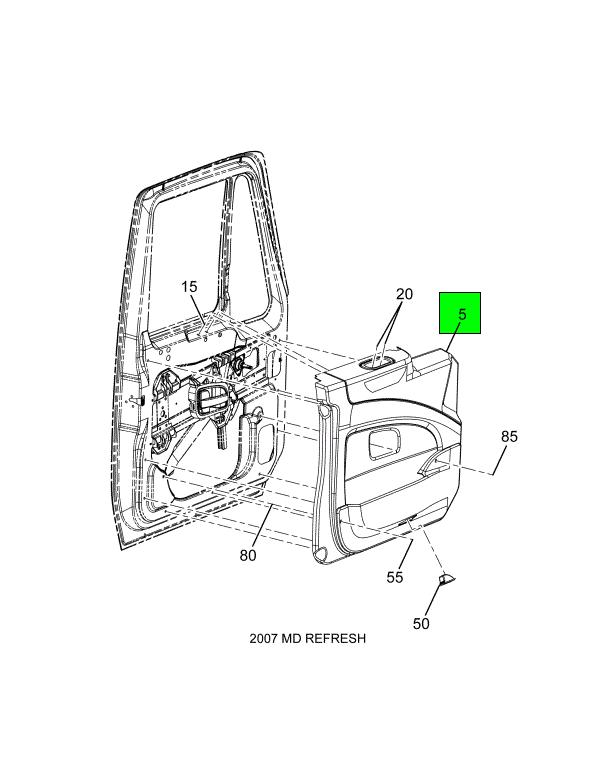

3612539C92
PANEL ASSEMBLY, DOOR TRIM FRONT STANDARD MANUAL LEFT HAND
Navistar International®
DISCONTINUED
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL ASSEMBLY, DOOR TRIM FRONT STANDARD MANUAL LEFT HAND
Weight
11 lbs

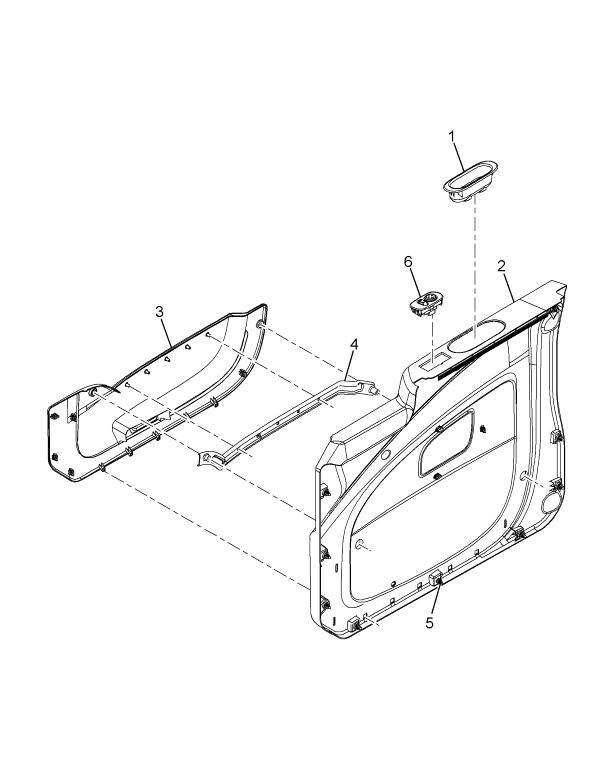

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| HANDLE, DOOR INSIDE PULL CUP | 1 | 3611337C1 |
| PANEL DOOR SUBSTRATE, FR LEFT HAND, MANUAL, POWER MIRROR | 1 | 3612268C1 |
| POCKET, DOOR FRONT MAP LEFT | 1 | 3611862C1 |
| REINFORCEMENT, DOOR POCKET LEFT HAND | 1 | 3612035C1 |
| FASTENER, DOOR TRIM RETAINER | 9 | 3805943C1 |
| SWITCH, MIRROR ADJUSTMENT | 1 | 2505204C1 |
| SWITCH, MIRROR ADJUSTMENT | 1 | 3599972C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
