3585794C2

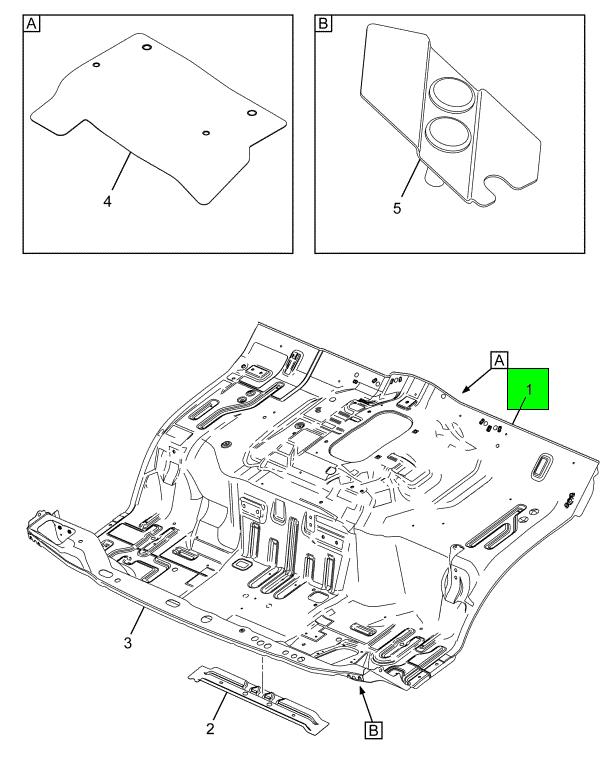

PANEL, CAB UNDERBODY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,199.95
$1,439.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
002-017-000
OEM Description
PANEL CAB UNDERBODY ASSY WLDD
Weight
118.25 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL STAMPING | 1 | 6020450C1 |
| REINFORCEMENT ASSEMBLY | 1 | 3585795C1 |
| REINFORCEMENT BRACKET ASSEMBLY | 2 | 3585801C1 |
| SUPPORT ASSEMBLY | 1 | 3585805C1 |
| PLATE SEAT MOUNTING ASSEMBLY | 5 | 3586914C1 |
| SUPPORT RIGHT HAND REAR REINFORCEMENT | 1 | 6020075C1 |
| SUPPORT REAR RIGHT HAND | 1 | 6020076C1 |
| PLATE ASSEMBLY | 5 | 3593056C1 |
| PANEL W/BRACKETS, W/O TOE BOARD | 1 | 6020609C1 |
CROSS REFERENCES
- FORDPRD 6E7O 2011140AA
- FORDSVC 6E7Z 2011135BA
- MAZDA WV9053600
- MAZDA WV9053600
- MAZDA WV9053600A
- MAZDA WV9053600A
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
