3580979C91
PANEL, CAB BACK OUTER
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$789.95
$947.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL, CAB BACK OUTER
Weight
100.21 lbs

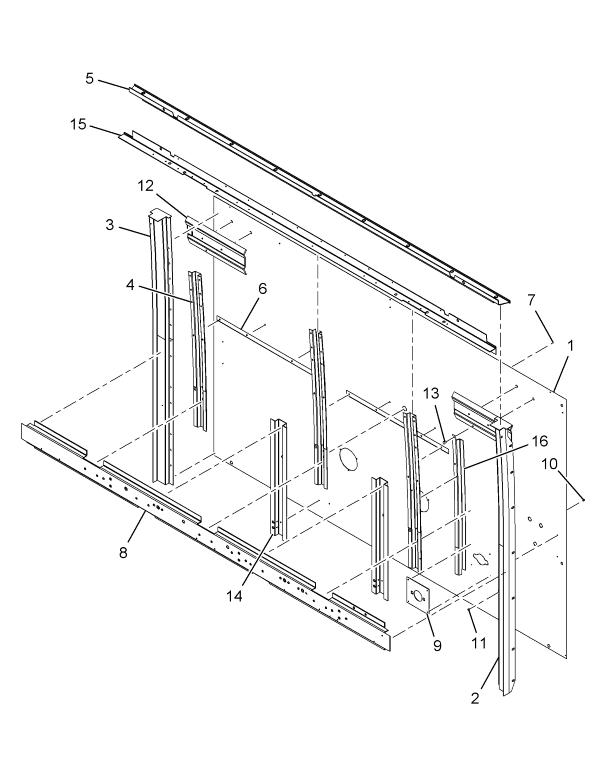

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL, CAB BACK OUTER | 1 | 3581688C1 |
| RIVET, STEEL BLIND 3/16" .062-.270 GRIP | 20 | 2040955C1 |
| NUT, SELF-ANCHORING | 2 | 503105C1 |
| SUPPORT CHANNEL MOUNTING | 2 | 3571396C1 |
| RIVET, ALUMINUM BLIND 1/4" .080-.375 GRIP | 7 | 2040958C1 |
| STRAINER, CAB BACK PANEL | 2 | 2011126C2 |
| HEADER, ROOF | 1 | 3531431C2 |
| STRAINER, CAB BACK PANEL VERTICAL | 1 | 3572772C1 |
| PILLAR, REAR CORNER BODY SIDE LEFT HAND CORNER REAR | 1 | 2011133C5 |
| PILLAR, REAR CORNER BODY SIDE LEFT HAND CORNER REAR | 1 | 2011133C2 |
| PILLAR, REAR CORNER BODY SIDE | 1 | 2011135C2 |
| STRAINER, CAB BACK PANEL VERTICAL UPPER | 3 | 2011127C1 |
| HEADER, ROOF DRIP RAIL | 1 | 3534553C1 |
| STRAINER, CAB BACK PANEL HORIZONTAL | 2 | 497043C1 |
| RIVET, SPECIAL SOLID 3/16" X 7/16" | 139 | 9401792 |
| STRAINER, CAB BACK PANEL HORIZONTAL | 1 | 3571111C1 |
| BRACKET, MOUNTING TRAILER SOCKET | 1 | 497121C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
