3580977C92
Panel, Side
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$299.95
$359.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
Navistar Group Code
16
OEM Description
PANEL, RIGHT REAR SIDE BODY 97"

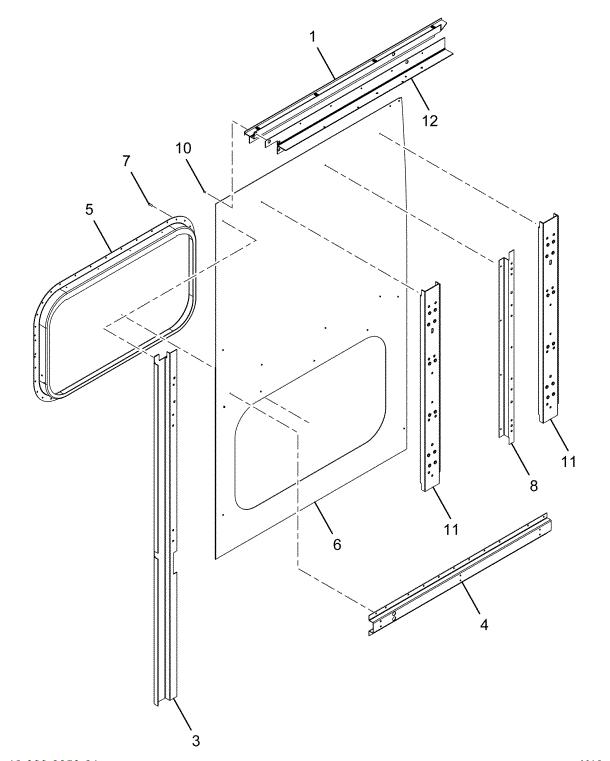

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| HEADER, SIDE PANEL RIGHT, OUTER | 1 | 3526158C1 |
| RIVET, STEEL BLIND 3/16" .062-.270 GRIP | 16 | 2040955C1 |
| STRAINER, SIDE PANEL UPPER VERTICAL | 2 | 3570844C2 |
| HEADER, ROOF SIDE PANEL RIGHT, INNER | 1 | 2011737C4 |
| PILLAR, FRONT CORNER BODY SIDE LEFT | 1 | 2011153C3 |
| STRAINER, SIDE PANEL HORIZONTAL 97" | 1 | 2011158C2 |
| FR DOOR OPENING LUGGAGE COMPARTMENT | 1 | 1653738C1 |
| PANEL, SIDE BODY OUTER RIGHT HAND 97" | 1 | 3574344C1 |
| RIVET, SPECIAL SOLID 3/16" X 7/16" | 64 | 9401792 |
| STRAINER, SIDE PANEL UPPER VERTICAL | 1 | 2011162C5 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
