3575513C91

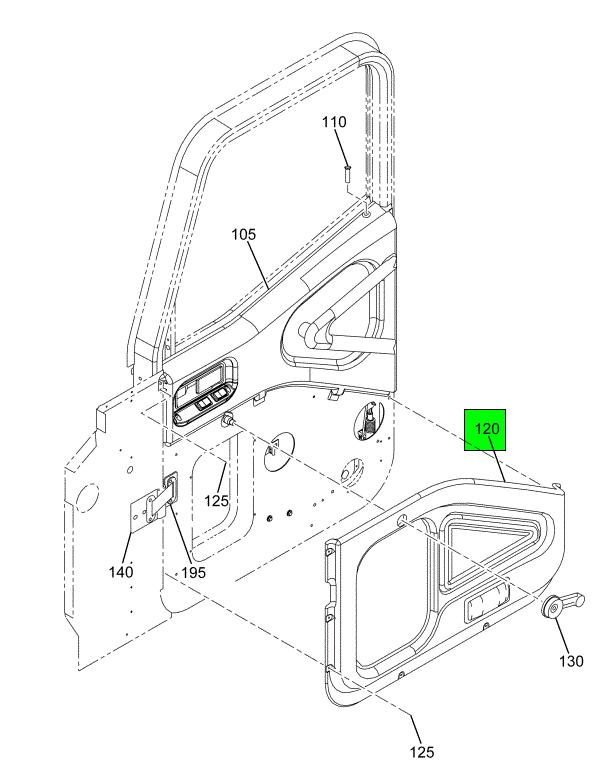

PANEL DR TRM LWR RH BRG E/WNDW
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$289.95
$347.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL, LOWER RIGHT DOOR TRIM BURGUNDY POWER WINDOW
Weight
5.9994 lbs

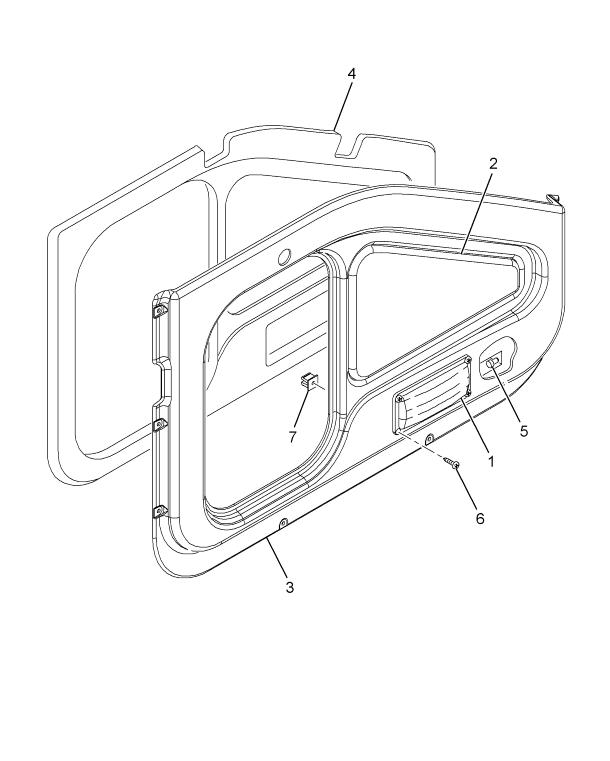

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| LIGHT, DOOR COURTESY | 1 | 1658560C91 |
| INSERT, TRIM PANEL DOOR POCKET-RIGHT HAND BURGUNDY PREMIUM | 1 | 3578301C1 |
| PANEL LOWER RIGHT HAND MED TAN-ELECTRICAL. WINDOW | 1 | 3578187C1 |
| INSULATOR, DOOR PANEL LOWER RIGHT | 1 | 3525451C1 |
| CLIP, CONNECTOR BODY MOUNTING | 1 | 3527531C1 |
| SCREW, SELF TAPPING OVAL HEAD #8 X 3/4" | 4 | 504183C1 |
| NUT, TAPPING SPEED #8 OR #10 | 4 | 498935C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
