3575501C94
PANEL, DOOR TRIM POWER WINDOW UPPER RIGHT HAND
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,049.95
$1,259.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL, DOOR TRIM POWER WINDOW UPPER RIGHT HAND
Package Dimensions
41.0 x 35.0 x 6.0 in
Weight
24.05 lbs

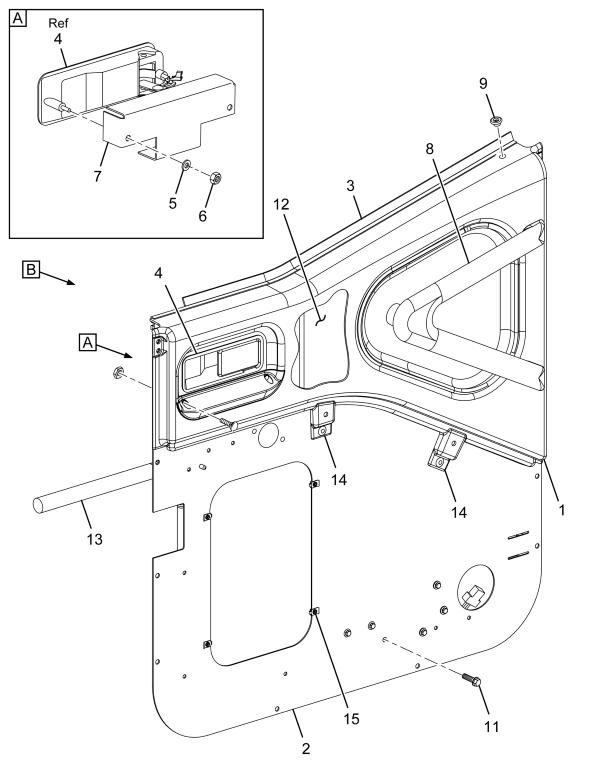

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL, UPPER RIGHT DOOR TRIM WITH POWER WINDOWS | 1 | 3578323C1 |
| REGULATOR, POWER DOOR WINDOW RIGHT HAND | 1 | 3515113C92 |
| SCREW, MACHINE HEXAGON HEAD 1/4"-28 UNF X 3/4" | 13 | 3521935C1 |
| INSULATOR, DOOR PANEL UPPER RIGHT | 1 | 3525447C1 |
| HARNESS, BODY ACCESSORY POWER WINDOW RIGHT DOOR | 1 | 3530932C95 |
| FASTENER, PINETREE NATURAL FLAT DOME | 2 | 3525973C1 |
| NUT SPRING U-BOLT | 4 | 445435 |
| ROD, DOOR CONTROL RIGHT | 1 | 3539686C1 |
| BAFFLE DOOR INSULATION MANUAL LOCKS | 1 | 3555728C1 |
| TAPE, TRIM 2 INCHES WIDE, 3179 * POLYETHYLENE | 1 | 3599933C1 |
| PANEL, RIGHT INNER DOOR PANEL INNER RIGHT | 1 | 3519433C3 |
| FOAM, PAD DOOR LATCH | 1 | 3608289C1 |
| SEAL, DOOR GLASS INNER RIGHT | 1 | 3513549C1 |
| HANDLE, DOOR INSIDE REMOTE RIGHT | 1 | 3518517C91 |
| WASHER, LOCK # 10 NOM STEEL /ZNC | 2 | 120217 |
| NUT #10 UNC | 2 | 120361 |
| SUPPORT HANDLE DOOR* | 1 | 498720C1 |
| HANDLE, GRAB DOOR RIGHT | 1 | 3518424C1 |
| FERRULE, LOCK BUTTON | 1 | 508332C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
