3575492C92
Panel, Door Trim Assembly
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$559.95
$671.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
Navistar Group Code
16
OEM Description
PANEL DR TRM LWR LH TAN E/WNDW
Package Dimensions
34.0 x 18.0 x 1.0 in
Weight
3.01 lbs

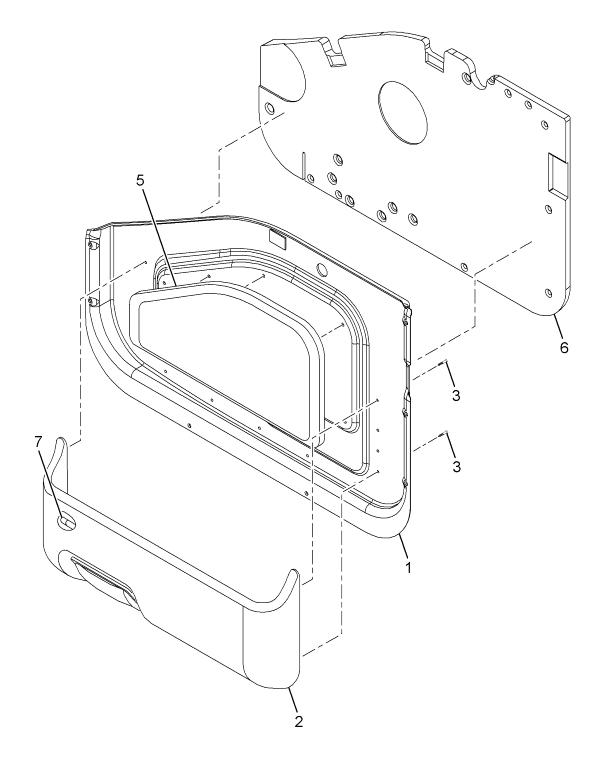

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL TRIM LOWER DOOR-LH PREMIUM /EAGLE | 1 | 3578184C1 |
| POCKET, DOOR *ASM- LOWER LH MED TAN | 1 | 3578195C91 |
| SCREW, SEMS #6-20 X 5/8" | 11 | 3521931C2 |
| INSERT, TRIM PANEL DOOR POCKET *-L PREMIUM | 1 | 3578189C1 |
| INSULATOR, DOOR PANEL LOWER LEFT INNER | 1 | 3525450C2 |
| CLIP, CONNECTOR BODY MOUNTING | 1 | 3527531C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
