3574343C91
PANEL, RIGHT REAR SIDE BODY
Navistar International®
BACK ORDERED
Please contact us for information on lead time
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL, RIGHT REAR SIDE BODY
Weight
42.999 lbs

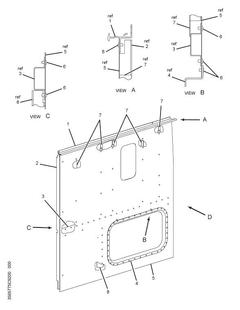

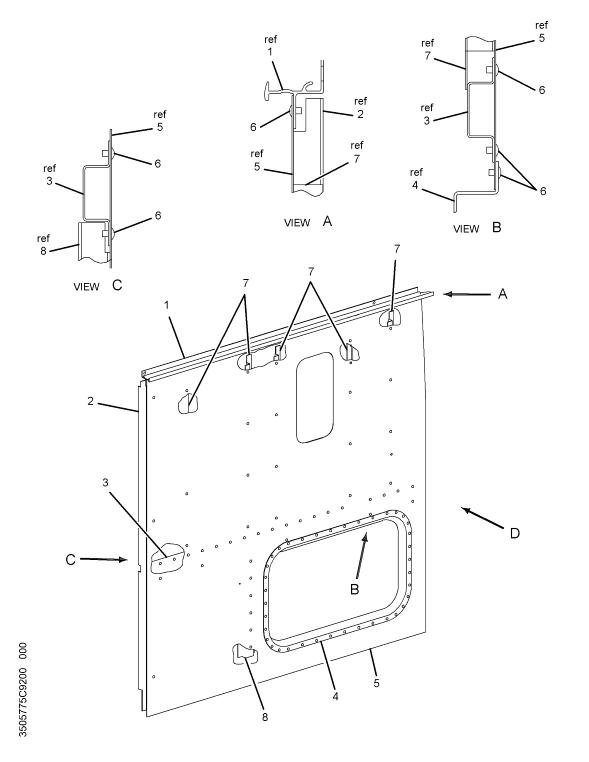

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| HEADER, SIDE PANEL RIGHT, OUTER | 1 | 3526158C1 |
| PILLAR, FRONT CORNER BODY SIDE RIGHT | 1 | 3507339C3 |
| STRAINER, SIDE PANEL HORIZONTAL 97" | 1 | 2011158C2 |
| FR DOOR OPENING LUGGAGE COMPARTMENT | 1 | 1653738C1 |
| PANEL, SIDE BODY OUTER RIGHT HAND 97" | 1 | 3574344C1 |
| RIVET, SPECIAL SOLID 3/16" X 7/16" | 64 | 9401792 |
| STRAINER, SIDE PANEL UPPER VERTICAL | 1 | 2011162C5 |
| STRAINER, SIDE PANEL UPPER VERTICAL | 2 | 3570844C1 |
| RIVET, STEEL BLIND 3/16" .062-.270 GRIP | 16 | 2040955C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
