3547336C92

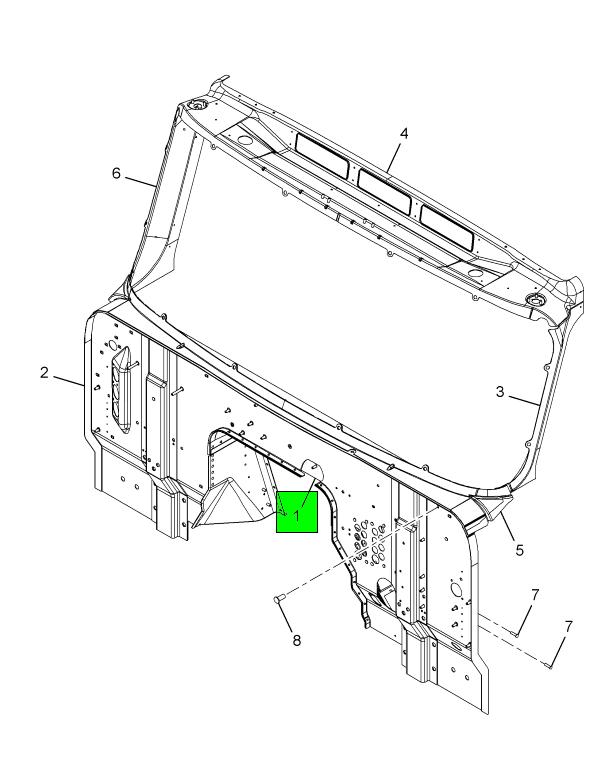

PANEL DASH ASSEMBLY, UPPER REINFORCEMENT
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,349.95
$1,619.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL DASH ASSEMBLY, UPPER REINFORCEMENT
Weight
14.9996 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL DASH UPPER REINFORCEMENT | 1 | 3547335C2 |
| 1/4"-20 HIGH STRESS PIERCE NUT | 11 | 3520705C1 |
| NUT 5/16"-18 HIGH STRESS PIERCE NUT | 2 | 3520706C1 |
| STUD 5/16"-18 X 3/4" HIGH STRESS PIERCE STUD | 6 | 3520707C1 |
| STUD 5/16"-18 X 2.0 HIGH STRESS PIERCE STUD | 2 | 3520708C1 |
| NUT, RIVET 1/4" UNC | 7 | 795633C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
