3513690C99
PANEL ASSEMBLY SIDE BODY RIGHT HAND
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$1,899.95
$2,279.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL ASSEMBLY SIDE BODY RIGHT HAND
Weight
100.9998 lbs

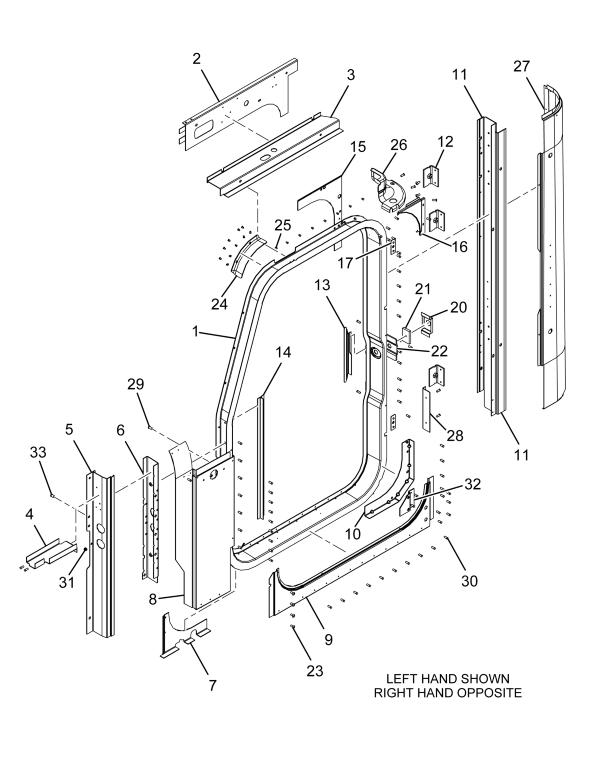

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, DOOR, | 1 | 3513656C4 |
| GUSSET, DOOR FR OPENING REAR RIGHT, LOWER | 1 | 3518730C1 |
| REINFORCEMENT PILLAR | 1 | 3524222C5 |
| BRACKET, FLOOR PANEL MOUNTING | 3 | 3524133C2 |
| FILLER, SIDE DOOR OPENING RIGHT HAND | 1 | 3524224C1 |
| ANGLE, HINGE PILLAR SEAL RETAINER | 1 | 3524130C1 |
| GUSSET, DOOR OPENING REAR UPPER | 1 | 3541572C2 |
| EXTENSION, CAB PANEL OUTER RIGHT REAR | 1 | 3540100C2 |
| PLATE, TAPPING GRAB HANDLE MOUNTING | 2 | 3524273C1 |
| PANEL, RIGHT SIDE HEADER | 1 | 3513707C1 |
| RETAINER, TAPPING PLATE | 1 | 497458C1 |
| PLATE TAPPING | 1 | 496387C1 |
| PLATE, STRIKER DOOR LOCK | 1 | 3527079C1 |
| RIVET, STEEL BLIND 1/4" .080-.375 GRIP | 10 | 2040959C1 |
| GUSSET, DOOR FR OPENING FRONT UPPER | 1 | 3528040C1 |
| RIVET SELF PIERCEING 5MM DIAMETER X 8 MM | 54 | 3540228C1 |
| EXTENSION, HEADER REINFORCEMENT RIGHT CAB PANEL | 1 | 3524572C1 |
| PANEL, OUTER RIGHT REAR CORNER | 1 | 3540098C2 |
| BRACKET, MOUNTING RADIO SPEAKER | 1 | 3531421C1 |
| NUT, RIVET STEEL 1/4" UNC | 2 | 797307C1 |
| REINFORCEMENT, RIGHT SIDE DOOR HEADER | 1 | 3513738C3 |
| RIVET, BLIND | 69 | 2040952C1 |
| NUT, RIVET 1/4" UNC | 1 | 795633C1 |
| BRACKET, RIGHT HAND MUFFLER | 1 | 598798C1 |
| NUT, RIVET PLUS STEEL | 2 | 283871C1 |
| REINFORCEMENT, RIGHT COWL PANEL | 1 | 3513658C1 |
| PANEL, HINGE PILLER INNER, R | 1 | 3514221C5 |
| PLATE ASSEMBLY TAPPING | 1 | 3543632C2 |
| GUSSET, DOOR OPENING FRONT /LOWER RIGHT | 1 | 3513740C1 |
| PANEL, COWL OUTER RIGHT HAND | 1 | 3558750C3 |
| SILL, CAB FLOOR OUTER W/CAB MOUNTING EXHAUST RIGHT HAND | 1 | 3558746C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
