3513689C99
PANEL ASSEMBLY SIDE BODY LEFT HAND
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$969.95
$1,163.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
PANEL ASSEMBLY SIDE BODY LEFT HAND
Weight
74.8 lbs

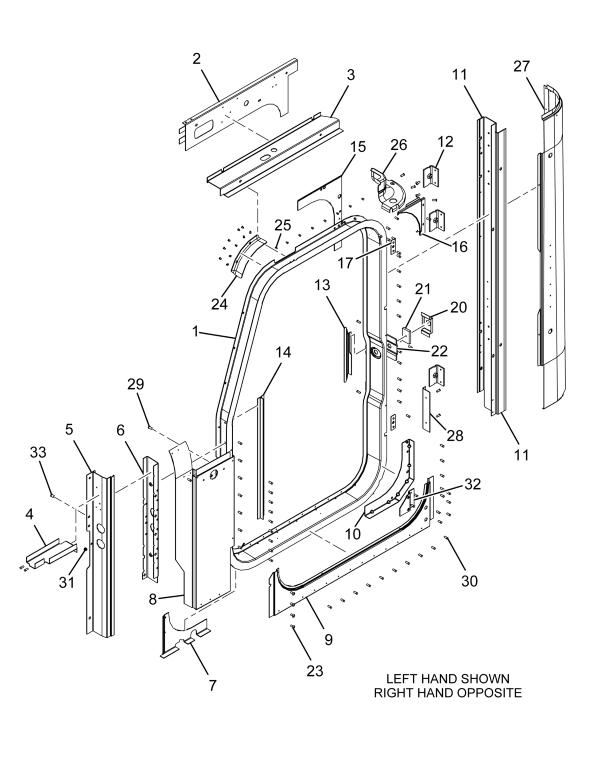

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| FR, DOOR, DOOR | 1 | 3513655C4 |
| GUSSET, DOOR FR OPENING REAR LEFT, LOWER | 1 | 3518729C1 |
| REINFORCEMENT PILLAR | 1 | 3524221C5 |
| BRACKET, FLOOR PANEL MOUNTING | 3 | 3524133C2 |
| FILLER, SIDE DOOR OPENING LEFT HAND | 1 | 3524223C1 |
| ANGLE, HINGE PILLAR SEAL RETAINER | 1 | 3524130C1 |
| GUSSET, DOOR FR OPENING REAR UPPER | 1 | 3541571C2 |
| EXTENSION, CAB PANEL OUTER LEFT REAR | 1 | 3540099C2 |
| PLATE, TAPPING GRAB HANDLE MOUNTING | 2 | 3524273C1 |
| PANEL, LEFT SIDE HEADER | 1 | 3513706C1 |
| RETAINER, TAPPING PLATE | 1 | 497458C1 |
| PLATE TAPPING | 1 | 496387C1 |
| PLATE, STRIKER DOOR LOCK | 1 | 3527079C1 |
| RIVET, STEEL BLIND 1/4" .080-.375 GRIP | 10 | 2040959C1 |
| GUSSET, DOOR FR OPENING FRONT UPPER | 1 | 3528040C1 |
| RIVET SELF PIERCEING 5MM DIAMETER X 8 MM | 54 | 3540228C1 |
| EXTENSION, HEADER REINFORCEMENT LEFT CAB PANEL | 1 | 3524571C1 |
| PANEL, LEFT OUTER REAR CORNER | 1 | 3540097C2 |
| BRACKET, MOUNTING RADIO SPEAKER | 1 | 3531421C1 |
| NUT, RIVET STEEL 1/4" UNC | 2 | 797307C1 |
| REINFORCEMENT, LEFT SIDE DOOR HEADER | 1 | 3513737C3 |
| RIVET, BLIND | 69 | 2040952C1 |
| NUT, RIVET 1/4" UNC | 1 | 795633C1 |
| BRACKET, MUFFLER | 1 | 598796C1 |
| NUT, RIVET PLUS STEEL | 2 | 283871C1 |
| REINFORCEMENT, LEFT COWL PANEL | 1 | 3513657C1 |
| PANEL, HINGE PILLER INNER, L | 1 | 3514220C5 |
| PLATE ASSEMBLY TAP HINGE MOUNTING LEFT HAND | 1 | 3543631C2 |
| GUSSET, DOOR OPENING FRONT /LOWER LEFT | 1 | 3513739C1 |
| PANEL, COWL OUTER LEFT | 1 | 3558749C3 |
| SILL, CAB FLOOR OUTER W/CAB MOUNTING EXHAUST LEFT HAND | 1 | 3558745C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
