2036002C92
PANEL, DASH TYPE "C"
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$779.95
$935.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
PANEL,DASH TYPE C CAB POST 663

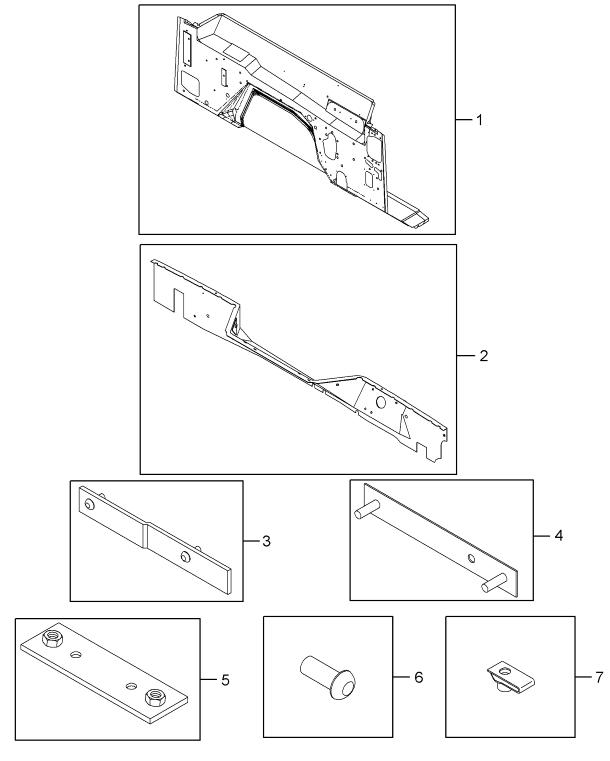

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| PANEL ASSEMBLY TYPE "C" W/PRG 663 | 1 | 2034371C2 |
| REINFORCEMENT REINFORCEMENT DASH OPENING RIGHT HAND | 1 | 1647084C1 |
| REINFORCEMENT DASH OPENING-CENTER | 1 | 482223C1 |
| ANGLE OPENING LH ASSEMBLY | 1 | 2028363C2 |
| ANGLE CENTER OPENING ASSEMBLY | 1 | 2031936C3 |
| PANEL, AIR DUCT AIR INTAKE | 1 | 2015821C2 |
| REINFORCEMENT, DASH PANEL | 1 | 2034128C1 |
| REINFORCEMENT DASH | 1 | 485003C3 |
| REINFORCEMENT ASSEMBLY | 1 | 1667572C2 |
| RIVET, STEEL BLIND 3/16" .062-.270 GRIP | 2 | 2040955C1 |
| NUT, SPEED | 4 | 2041889C1 |
| ANGLE OPENING RIGHT | 1 | 2031932C2 |
| REINFORCEMENT DASH PANEL*OPENING LH | 1 | 2028187C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
