4102510C93
HOSE, A/C , ASSY COND TO EVAP, MV ISB LOW CAB
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$164.95
$197.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
HOSE, A/C , ASSY COND TO EVAP, MV ISB LOW CAB
Weight
1.7358 lbs

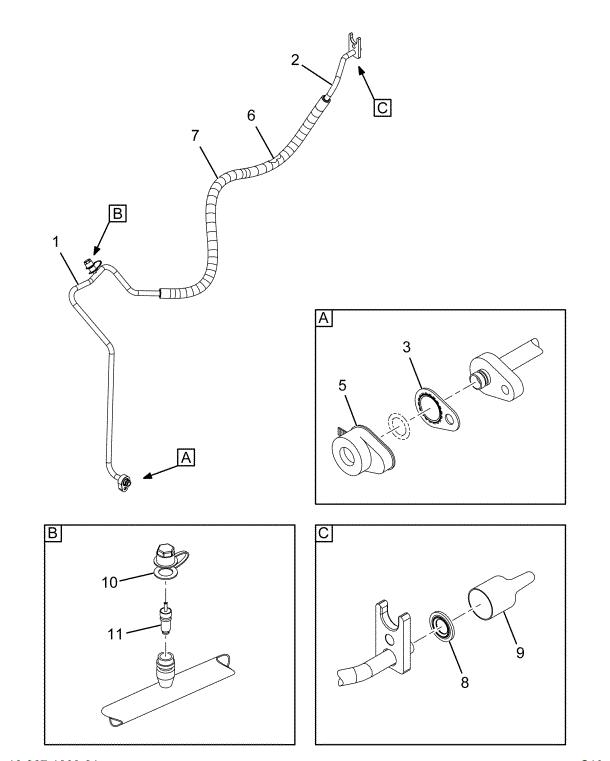

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| AC FITTING , #973 COND OUT TUBE ASSY 1/2 NOM OD | 1 | 4102511C2 |
| CAP, TETHERED REFRIGERATOR FITTING | 1 | 3625408C1 |
| CORE, VALVE | 1 | 3544706C1 |
| AC FITTING , #967 EVAP IN TUBE ASSY 1/2 NOM OD | 1 | 4102507C3 |
| SEAL, C- PLATE 1/2" | 1 | 3543881C1 |
| CAP, SHIPPING, REFRIGERANT FITTING 1/2" MALE | 1 | 3555226C1 |
| LOOM, CONVOLUTED ELECTRICAL WIRE 3/4" I.D. X .973" O.D. | 781 | 450016C1 |
| SEAL FACE-1/2 INCH | 1 | 3766705C1 |
| CAP, REFRIGERANT FITTING, 1/2 FACE SEAL | 1 | 4070800C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
