4086541C92
HOSE, A/C , ASSY, EVAP TO COMP 2017 ISL HV HIGH HOOD
Navistar International®
AVAILABLE
2 are currently available
Ships within 6-8 business days
$209.95
$251.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
HOSE, A/C , ASSY, EVAP TO COMP 2017 ISL HV HIGH HOOD
Weight
3 lbs

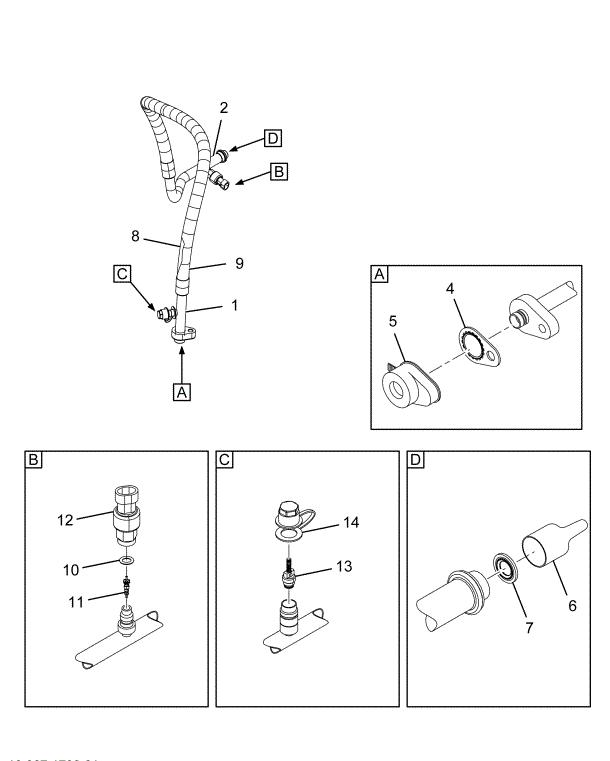

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| AC FITTING , #893 COMP IN TUBE ASSY 3/4 NOM OD | 1 | 4086555C2 |
| RING ,O, HNBR 8.53 ID X 1.96 THK | 1 | 4064832C1 |
| A/C FITTING, VALVE CORE LOW SIDE | 1 | 4064777C1 |
| SWITCH, AIR CONDITIONER PRESSURE, LOW SIDE-HORIZON | 1 | 4063471C1 |
| AIR CONDITION FITTING, VALVE CORE ONE- PIECE LOW SIDE | 1 | 4053751C1 |
| CAP, TETHERED LOW SIDE CHARGE PORTAL- BLACK | 1 | 4049117C1 |
| AC FITTING , #892 EVAP OUT TUBE ASSY 3/4 NOM OD | 1 | 4086554C2 |
| SEAL, C- PLATE 3/4" | 1 | 3543882C1 |
| CAP REFRIGERANT FITTING 3/4" MALE | 1 | 3555227C1 |
| CAP, REFRIGERANT FITTING, 3/4 FACE SEAL | 1 | 4070806C1 |
| SEAL FACE 3/4 INCH | 1 | 3766707C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
