4084921C91
HOSE, AIR CONDITION, EVAPORATOR TO COMP HV EXP ISL
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$164.95
$197.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HOSE, AIR CONDITION, EVAPORATOR TO COMP HV EXP ISL
Weight
1.947 lbs

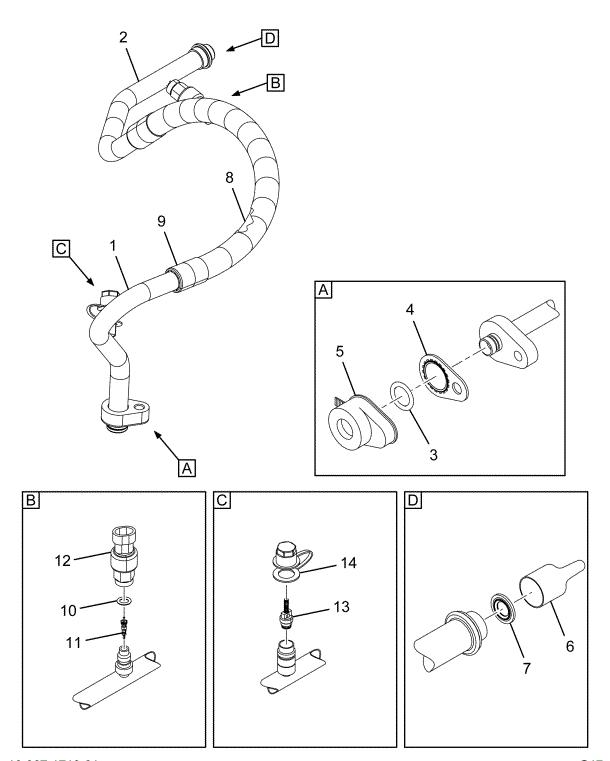

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| A/C FITTING, 893 COMP INCH TUBE ASSEMBLY 3/4 NOM OD | 1 | 4086555C1 |
| RING ,O, HNBR 8.53 ID X 1.96 THK | 1 | 4064832C1 |
| A/C FITTING, VALVE CORE LOW SIDE | 1 | 4064777C1 |
| SWITCH, AIR CONDITIONER PRESSURE, LOW SIDE-HORIZON | 1 | 4063471C1 |
| AIR CONDITION FITTING, VALVE CORE ONE- PIECE LOW SIDE | 1 | 4053751C1 |
| CAP, TETHERED LOW SIDE CHARGE PORTAL- BLACK | 1 | 4049117C1 |
| A/C FITTING, 949 EVAPORATOR OUT TUBE ASSEMBLY 3/4 NOM OD | 1 | 4094313C1 |
| O-RING SEAL 15 35/64" X 2 5/8" | 1 | 3543728C1 |
| SEAL, C- PLATE 3/4" | 1 | 3543882C1 |
| CAP REFRIGERANT FITTING 3/4" MALE | 1 | 3555227C1 |
| CAP, REFRIGERANT FITTING, 3/4 FACE SEAL | 1 | 4070806C1 |
| SEAL FACE 3/4 INCH | 1 | 3766707C1 |
| LOOM, CONVOLUTED ELECTRICAL WIRE 1" I.D. X 1.29" O.D. | 570 | 450017C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
