4084758C91
HOSE, AIR CONDITION, COMP TO CONDITIONER WITH PT SENSOR PRO ISX
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$164.95
$197.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HOSE, AIR CONDITION, COMP TO CONDITIONER WITH PT SENSOR PRO ISX
Weight
1.45 lbs

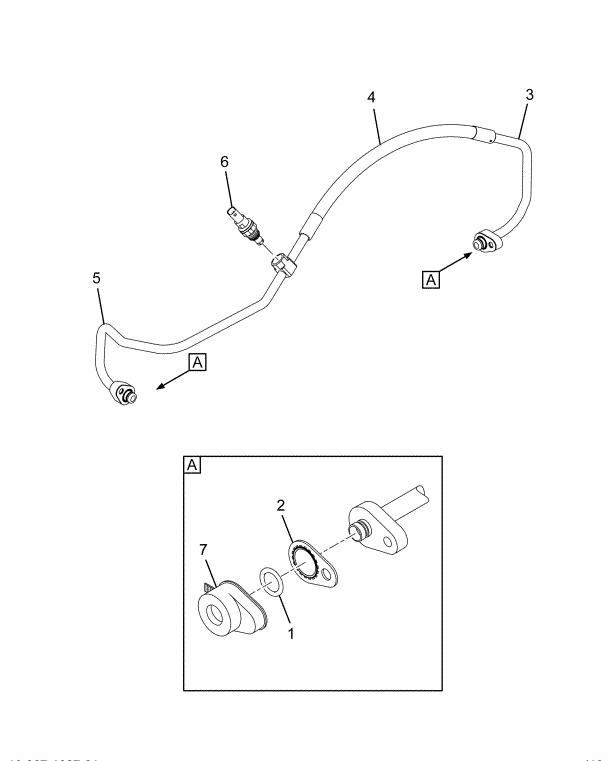

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| O-RING SEAL 10 25/32" X 2 5/8" | 2 | 3543727C1 |
| SEAL, C- PLATE 1/2" | 2 | 3543881C1 |
| A/C FITTING 118 COMP OUT TUBE ASSEMBLY 1/2 NOM OD | 1 | 4047560C1 |
| A/C FITTING, 872 COND INCH TUBE ASSEMBLY 1/2 NOM OD | 1 | 4084832C1 |
| SWITCH, AIR CONDITIONER PRESSURE /TEMPERATURE SENSOR | 1 | 4051001C2 |
| CAP, SHIPPING, REFRIGERANT FITTING 1/2" MALE | 2 | 3555226C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
