4064858C93
HOSE, AIR CONDITION, EVAPORATOR TO COMP DAYCAB PRO113 2017 N13
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$189.95
$227.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
HOSE, AIR CONDITION, EVAPORATOR TO COMP DAYCAB PRO113 2017 N13
Weight
1.8304 lbs

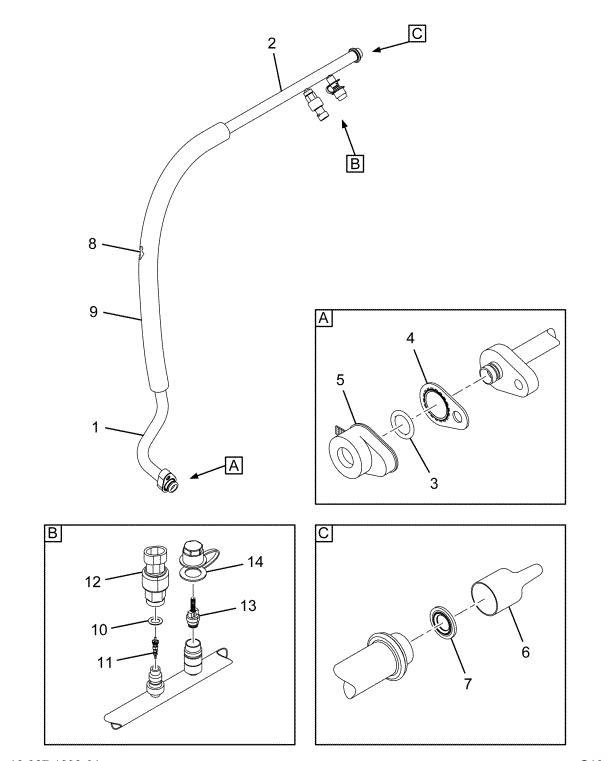

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| A/C FITTING 822 COMP INCH TUBE ASSEMBLY 3/4 NOM OD. | 1 | 4058425C2 |
| RING ,O, HNBR 8.53 ID X 1.96 THK | 1 | 4064832C1 |
| A/C FITTING, VALVE CORE LOW SIDE | 1 | 4064777C1 |
| SWITCH, AIR CONDITIONER PRESSURE, LOW SIDE-HORIZON | 1 | 4063471C1 |
| AIR CONDITION FITTING, VALVE CORE ONE- PIECE LOW SIDE | 1 | 4053751C1 |
| CAP, TETHERED LOW SIDE CHARGE PORTAL- BLACK | 1 | 4049117C1 |
| AC FITTING, 831 EVAP OUT TUBE ASSY 3/4 NOM OD | 1 | 4064775C2 |
| O-RING SEAL 15 35/64" X 2 5/8" | 1 | 3543728C1 |
| SEAL, C- PLATE 3/4" | 1 | 3543882C1 |
| CAP REFRIGERANT FITTING 3/4" MALE | 1 | 3555227C1 |
| CAP, REFRIGERANT FITTING, 3/4 FACE SEAL | 1 | 4070806C1 |
| SEAL FACE 3/4 INCH | 1 | 3766707C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
