4063985C92
HOSE, AIR CONDITION, COMP TO COND PRO113 2017 N13
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$149.95
$179.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HOSE, A/C, COMP TO COND PRO113 2017 N13

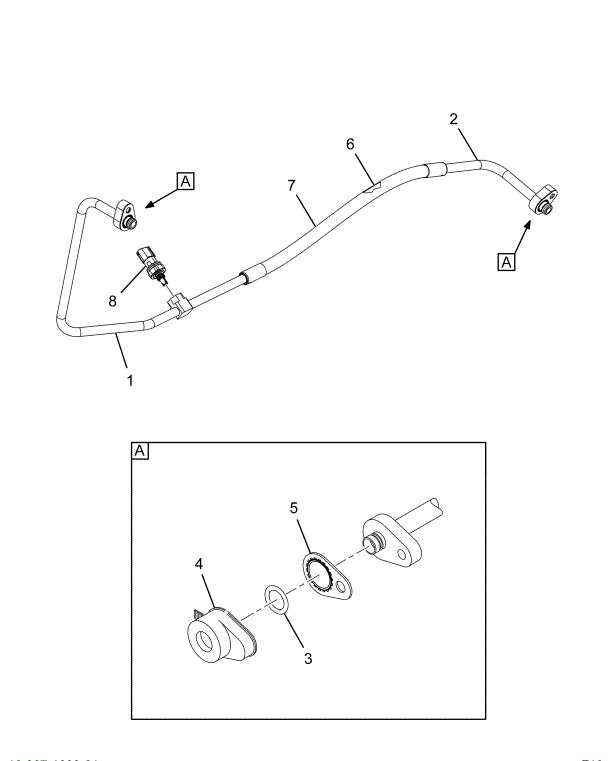

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| AC FITTING, 825 COND IN TUBE ASSY 1/2 NOM OD | 1 | 4054882C2 |
| AC FITTING , 824 COMP OUT TUBE | 1 | 4057376C1 |
| O-RING SEAL 10 25/32" X 2 5/8" | 2 | 3543727C1 |
| CAP, SHIPPING, REFRIGERANT FITTING 1/2" MALE | 2 | 3555226C1 |
| SEAL, C- PLATE 1/2" | 2 | 3543881C1 |
| SWITCH , AIR COND PRESS/TEMP SENSOR | 1 | 4051001C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
