4062660C93
HOSE, AIR CONDITION ASSEMBLY, COMP TO COND 2017 N13 HV LOW 12IN
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$224.95
$269.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
HOSE, AIR CONDITION ASSEMBLY, COMP TO COND 2017 N13 HV LOW 12IN
Weight
1.5 lbs

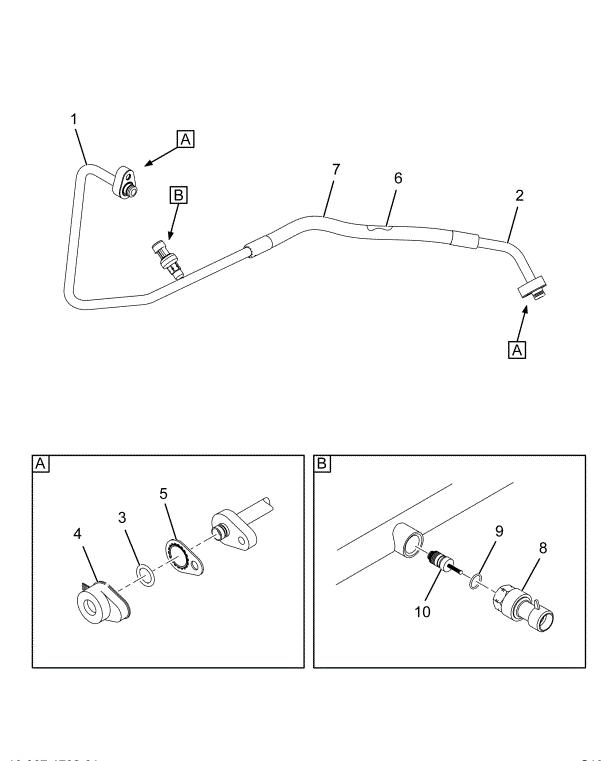

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| A/C FITTING 915 COND INCH TUBE ASSEMBLY 1/2 NOM OD | 1 | 4093830C1 |
| CORE, VALVE AIR CONDITIONER HOSE | 1 | 2503677C1 |
| A/C FITTING #435 COMP IN TUBE ASSEMBLY 1/2 NOM OD | 1 | 3733102C1 |
| O-RING SEAL 10 25/32" X 2 5/8" | 2 | 3543727C1 |
| CAP, SHIPPING, REFRIGERANT FITTING 1/2" MALE | 2 | 3555226C1 |
| SEAL, C- PLATE 1/2" | 2 | 3543881C1 |
| LOOM, CONVOLUTED ELECTRICAL WIRE 3/4" I.D. X .973" O.D. | 415 | 450016C1 |
| SWITCH, AIR CONDITIONER PRESSURE | 1 | 3546241C1 |
| RING ,O HNBR 7.37 ID X 1.81 THK | 1 | 1693968C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
