4022826C91
HOSE AIR CONDITION ASSEMBLY COMP TO COND CAT SS 15L
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$98.95
$118.74
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HOSE A/C ASSEMBLY COMP TO COND CAT SS 15L
Weight
1.9 lbs

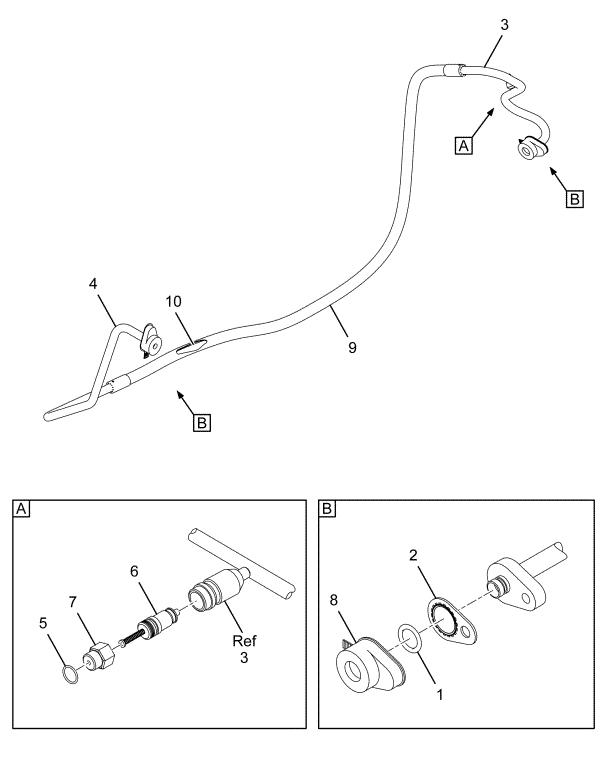

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| O-RING SEAL 10 25/32" X 2 5/8" | 2 | 3543727C1 |
| SEAL, C- PLATE 1/2" | 2 | 3543881C1 |
| A/C FITTING ASSEMBLY COMP OUT | 1 | 3996990C1 |
| A/C FITTING COND IN TUBE ASSEMBLY 1/2 NOM OD | 1 | 4022836C1 |
| RING ,O HNBR 7.37 ID X 1.81 THK | 1 | 1693968C1 |
| CORE, VALVE AIR CONDITIONER HOSE | 1 | 2503677C1 |
| CAP, REFRIGERATOR FITTING M10 X 1.25MM | 1 | 2504118C1 |
| CAP, SHIPPING, REFRIGERANT FITTING 1/2" MALE | 2 | 3555226C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
