3933213C91

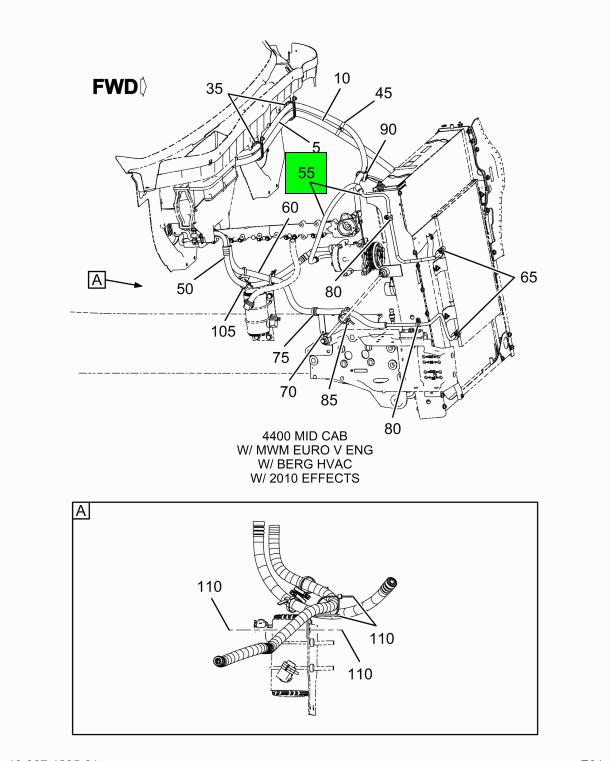

HOSE, AIR CONDITION, COMP TO COND 4400
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$104.95
$125.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HOSE, AIR CONDITION, COMP TO COND 4400
Weight
1.7358 lbs

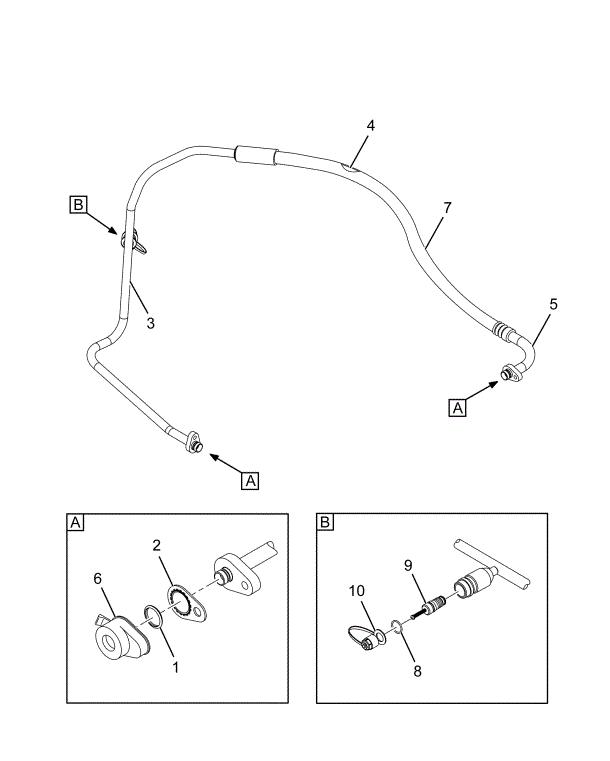

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| O-RING SEAL 10 25/32" X 2 5/8" | 2 | 3543727C1 |
| CAP, TETHERED REFRIGERATOR FITTING | 1 | 3625408C1 |
| SEAL, C- PLATE 1/2" | 2 | 3543881C1 |
| AC FITTING #187 COND IN TUBE ASM 1/2 NOM OD | 1 | 3937814C1 |
| AC FITTING #635 COMP OUT TUBE ASM 1/2 NOM OD | 1 | 3933012C1 |
| CAP, SHIPPING, REFRIGERANT FITTING 1/2" MALE | 2 | 3555226C1 |
| RING ,O HNBR 7.37 ID X 1.81 THK | 1 | 1693968C1 |
| CORE, VALVE | 1 | 3544706C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
