3827633C91

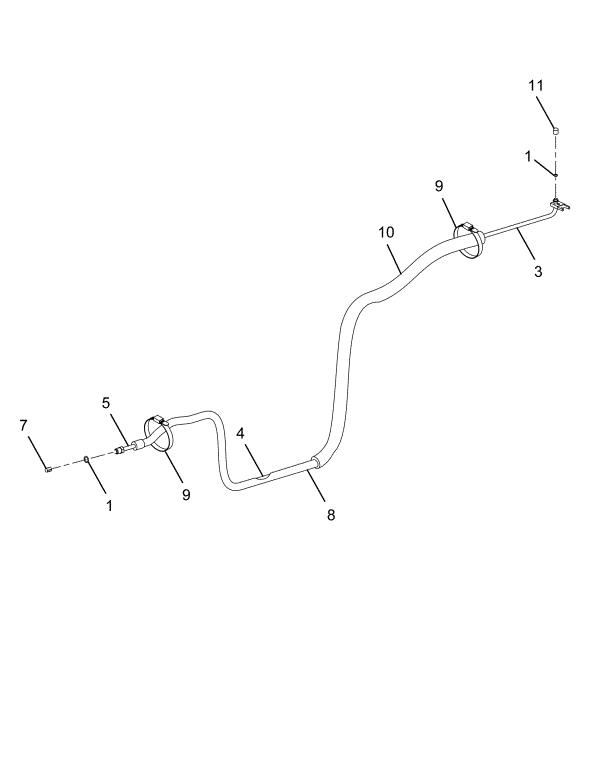

HOSE, AIR CONDITIONER RECEIVER DRYER TO EVAPORATOR
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$259.95
$311.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HOSE, AIR CONDITIONER RECEIVER DRYER TO EVAPORATOR
Weight
1.22 lbs
BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| RING ,O HNBR 7.37 ID X 1.81 THK | 2 | 1693968C1 |
| A/C FITTING 3/8 TXV TUBE-O TMS-6021 TYPE 10 SHIP CAP | 1 | 3906763C1 |
| A/C FITTING ASSEMBLY #489 EVAPORATOR IN-TXV | 1 | 3901485C1 |
| A/C FITTING #488 DRYER OUT TUBE ASSEMBLY 3/8 NOM OD | 1 | 3935069C1 |
| A/C FITTING 5/8-18 MALE THREAD PLASTIC SHIPPING CAP | 1 | 3906270C1 |
| STRAP, CABLE LOCK | 2 | 306132C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
