3805818C92
HOSE ASSEMBLY, FLEX CONDENSER TO DRYER
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$229.95
$275.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
VMRS
001-002-000
OEM Description
HOSE ASSEMBLY, FLEX CONDENSER TO DRYER
Package Dimensions
20.0 x 15.0 x 6.0 in
Weight
1.54 lbs

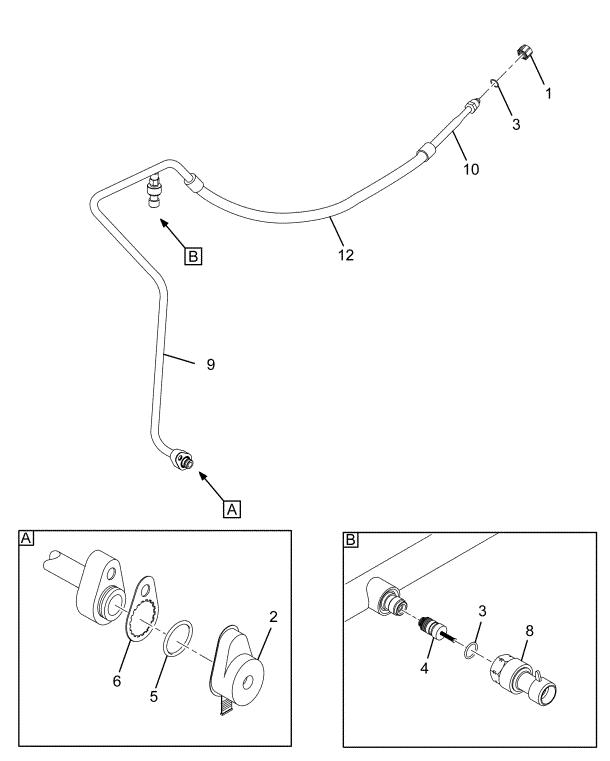

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CAP, REFRIGERATOR FITTING 11/16" | 1 | 3570521C1 |
| A/C FITTING #232 DRYER IN TUBE ASSEMBLY 1/2 NOM OD | 1 | 3913420C1 |
| CAP, SHIPPING, REFRIGERANT FITTING 1/2" MALE | 1 | 3555226C1 |
| RING ,O HNBR 7.37 ID X 1.81 THK | 2 | 1693968C1 |
| CORE, VALVE AIR CONDITIONER HOSE | 1 | 2503677C1 |
| O-RING SEAL 10 25/32" X 2 5/8" | 1 | 3543727C1 |
| SEAL, C- PLATE 1/2" | 1 | 3543881C1 |
| AIR CONDITION FITTING VALVE BODY- SWITCH PORTAL | 1 | 3544769C1 |
| SWITCH, AIR CONDITIONER PRESSURE | 1 | 3546241C1 |
| A/C FITTING #178 COND OUT TUBE ASSEMBLY 1/2 NOM OD | 1 | 3896911C1 |
CROSS REFERENCES
- PARKER 554272
- PARKER 554272
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
