3780650C91
HOSE, AIR CONDITION, EVAPORATOR TO COMP, LS SLEEPER W/ISX
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$229.95
$275.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HOSE, AIR CONDITION, EVAPORATOR TO COMP, LS SLEEPER W/ISX
Weight
1.1836 lbs

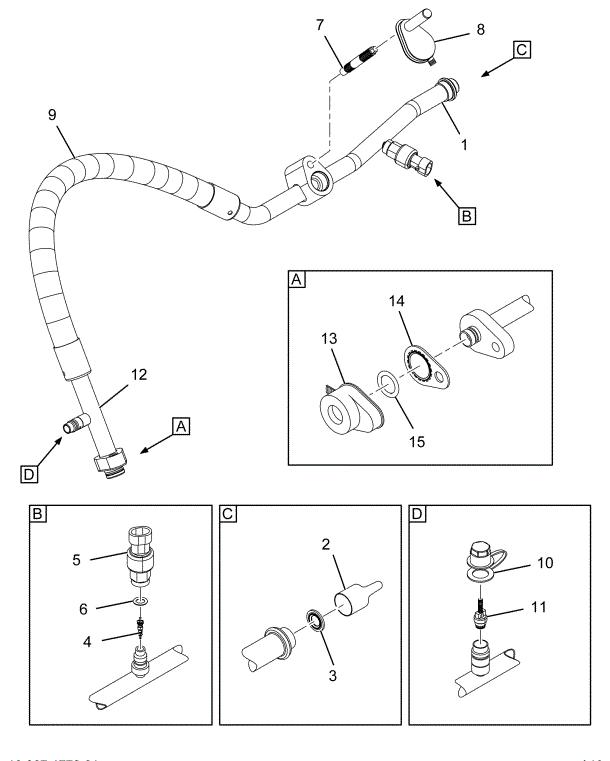

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| A/C FITTING, 991 EVAPORATOR OUT TUBE ASSEMBLY 3/4 NOM OD | 1 | 3780652C1 |
| CAP, TETHERED LOW SIDE CHARGE PORTAL- BLACK | 1 | 4049117C1 |
| AIR CONDITION FITTING, VALVE CORE ONE- PIECE LOW SIDE | 1 | 4053751C1 |
| A/C FITTING, 992 COMP INCH TUBE ASSEMBLY 3/4 NOM OD | 1 | 3780653C1 |
| CAP REFRIGERANT FITTING 3/4" MALE | 1 | 3555227C1 |
| SEAL, C- PLATE 3/4" | 1 | 3543882C1 |
| O-RING SEAL 15 35/64" X 2 5/8" | 1 | 3543728C1 |
| CAP, REFRIGERANT FITTING, 3/4 FACE SEAL | 1 | 4070806C1 |
| SEAL FACE 3/4 INCH | 1 | 3766707C1 |
| A/C FITTING, VALVE CORE LOW SIDE | 1 | 4064777C1 |
| SWITCH, AIR CONDITIONER PRESSURE, LOW SIDE-HORIZON | 1 | 4063471C1 |
| RING ,O, HNBR 8.53 ID X 1.96 THK | 1 | 4064832C1 |
| STUD, GROOVED RIVE | 1 | 3544699C1 |
| CAP, REFRIGERANT FITTING FEMALE 3/4" | 1 | 3663564C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
