3741343C91
HOSE, AIR CONDITION, CONDENSER TO DRYER
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$379.95
$455.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HOSE, A/C, CONDENSER TO DRYER
Weight
3.01 lbs

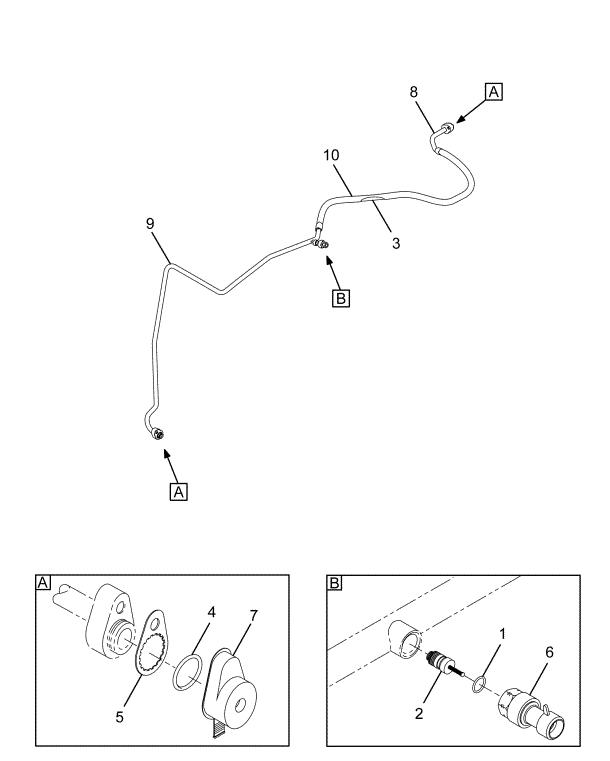

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| RING ,O HNBR 7.37 ID X 1.81 THK | 1 | 1693968C1 |
| LOOM, CONVOLUTED ELECTRICAL WIRE 3/4" I.D. X .973" O.D. | 1 | 450016C1 |
| CORE, VALVE AIR CONDITIONER HOSE | 1 | 2503677C1 |
| HOSE, AIR CONDITION BARRIER-13/32" NOM ID | 1 | 2645715R1 |
| O-RING SEAL 10 25/32" X 2 5/8" | 2 | 3543727C1 |
| SEAL, C- PLATE 1/2" | 2 | 3543881C1 |
| SWITCH, AIR CONDITIONER PRESSURE | 1 | 3546241C1 |
| CAP, SHIPPING, REFRIGERANT FITTING 1/2" MALE | 2 | 3555226C1 |
| A/C FITTING TUBE ASSEMBLY 3/4 | 1 | 3741567C1 |
| A/C FITTING COND OUT TUBE ASSEMBLY | 1 | 3741582C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
