3721400C93

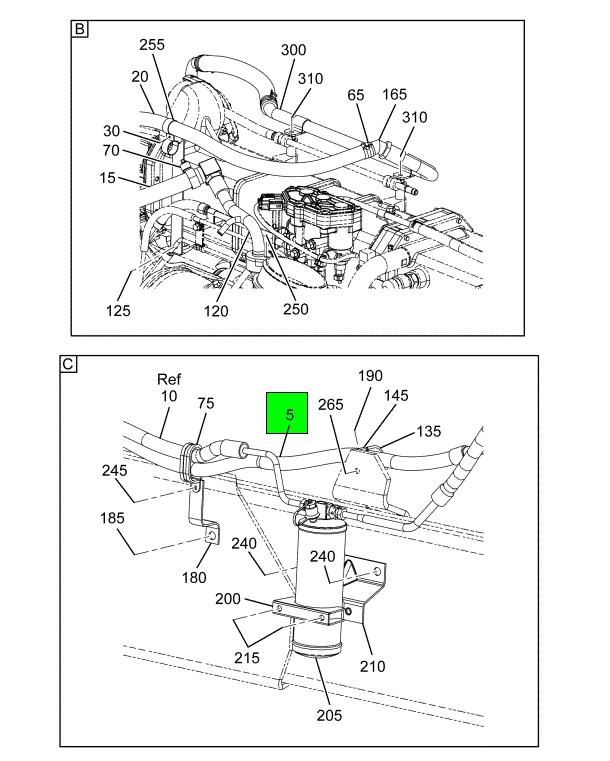

HOSE AIR CONDITION ASSEMBLY EVAPORATOR TO COMP 2010 IBB 55/5600
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$134.95
$161.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HOSE A/C ASSEMBLY EVAPORATOR TO COMP 2010 IBB 55/5600
Weight
2.0592 lbs

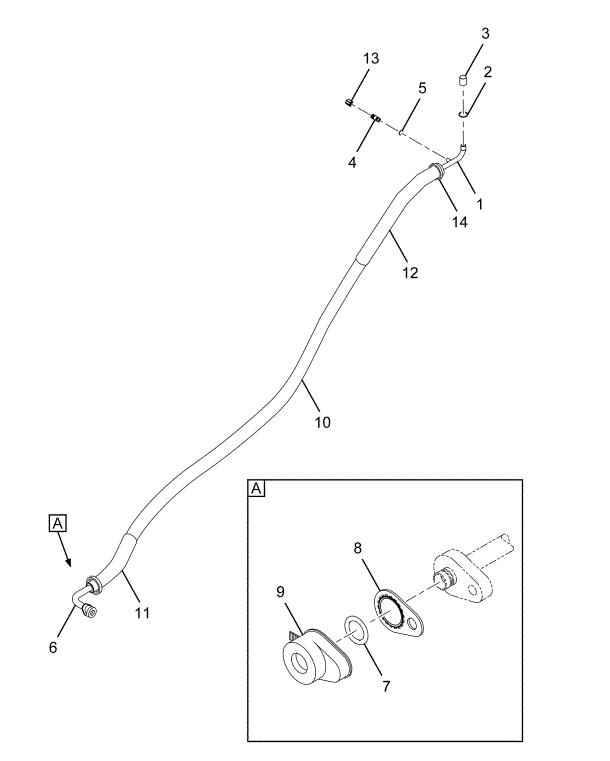

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| AIR CONDITION FITTING #591 EVAPORATOR OUT TUBE ASSEMBLY 5/8 NOM OD | 1 | 3893112C2 |
| CAP, REFRIGERANT FITTING LOW SIDE | 1 | 1693981C1 |
| STRAP, CABLE LOCK HOSE | 2 | 533959R1 |
| RING ,O HNBR 12.93 ID X 1.86 THK | 1 | 1693970C1 |
| CAP, REFRIGERATOR FITTING .720" I.D. | 1 | 3570522C1 |
| FITTING, SPECIAL CHARGE PORT LOW SIDE | 1 | 1694957C1 |
| RING ,O HNBR 7.37 ID X 1.81 THK | 1 | 1693968C1 |
| A/C FITTING 342 COMP IN TUBE ASSEMBLY | 1 | 3947917C1 |
| O-RING SEAL 15 35/64" X 2 5/8" | 1 | 3543728C1 |
| SEAL, C- PLATE 3/4" | 1 | 3543882C1 |
| CAP REFRIGERANT FITTING 3/4" MALE | 1 | 3555227C1 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
