3687849C91
HOSE UNDERBODY ASSEMBLY- SHORT SLEEPER W/NO- IDLE
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$259.95
$311.94
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
SPECIFICATIONS
OEM Description
HOSE UNDERBODY ASSEMBLY-SHORT SLEEPER W/NO-IDLE

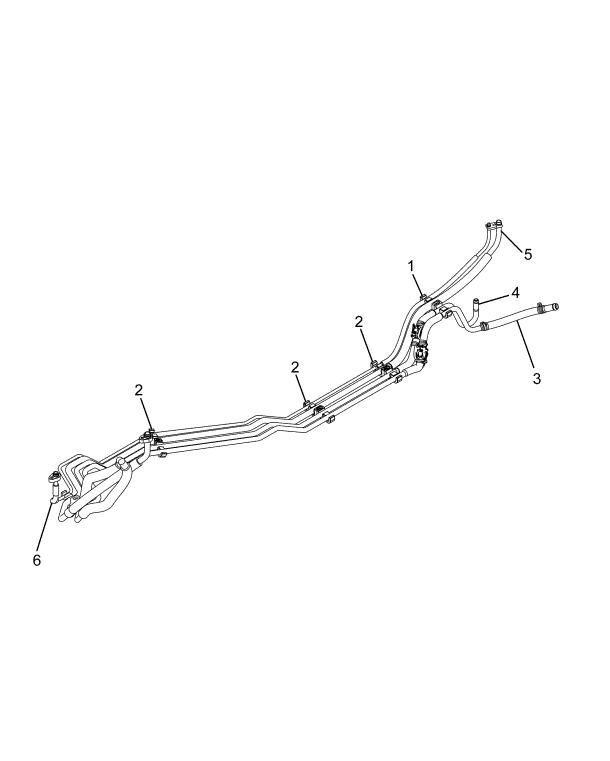

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| CLIP, UNDERBODY BERGSTROM | 1 | 3829671C1 |
| CLIP, UNDERBODY 3/4" | 4 | 3601749C1 |
| HOSE, HEATER ASSEMBLY- SUPPLY SHORT SLEEPER W/NO IDLE | 1 | 3819194C92 |
| HOSE, HEATER ASSEMBLY- RETURN SHORT SLEEPER W/NO- IDLE | 1 | 3680869C91 |
| HOSE, AIR CONDITION ASSEMBLY- SUCTION LINE SHORT SLEEPER | 1 | 3687845C91 |
| HOSE, A/C ASSEMBLY-LIQUID LINE SHORT SLEEPER | 1 | 3687846C91 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
