4086894C92
HEATER, AUXILIARY ASSEMBLY, NO- IDLE, NEXT GENERATION CONTROL SSLW
Navistar International®
BACK ORDERED
Please contact us for information on lead time
$4,599.95
$5,519.94
This is an oversize product. Additional shipping fees may apply.
This truck part is made by Navistar International®. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
RELATED PARTS
SPECIFICATIONS
OEM Description
HEATER, AUXILIARY ASSEMBLY, NO- IDLE, NEXT GENERATION CONTROL SSLW
Weight
85 lbs

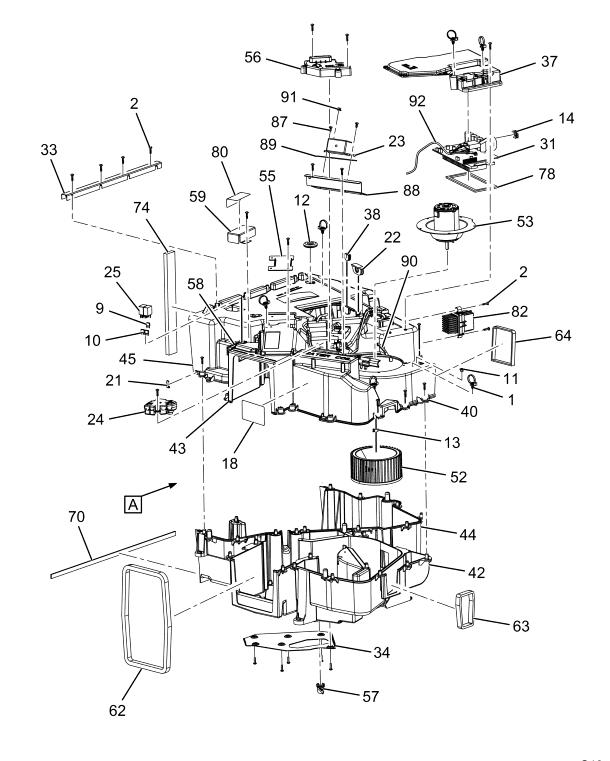

BILL OF MATERIALS
| Name | Quantity | Part Number |
|---|---|---|
| STRAP, CABLE LOCK, W/ANCHOR BERGSTROM | 8 | 4033646C1 |
| FUSE GIVE AMP ALSO INCLUDE ST 20 AMP MINI *-YELLOW | 2 | 3534211C1 |
| GROMMET, FREEZE SWITCH | 2 | 3685785C1 |
| GROMMET, SPLIT DIAPHRAGM | 1 | 3685786C1 |
| CLIP BLOWER WHEEL | 1 | 3685788C1 |
| GROMMET, WALL | 1 | 3685790C1 |
| FILTER, AIR CONDITIONER DRYER | 1 | 4047632C1 |
| SEAL, WASHER- 1/2- SINGLE SLIM LINE | 1 | 4086325C1 |
| LABEL, SERIAL PLATE | 1 | 3685794C1 |
| CLAMP, HOSE WORM DRIVEN | 2 | 3685795C1 |
| LABEL NAMEPLATE | 1 | 3685796C1 |
| CLIP, SPRING AIR CONDITIONER HOUSING | 2 | 3685797C1 |
| GROMMET, MOLDINGS ON PHASE HRN | 1 | 4088286C1 |
| RELAY, HIGH CURRENT | 1 | 3985908C1 |
| MOTOR, SLEEPER HVAC BLEND DOOR CONTROL ACTUATOR | 1 | 3685800C1 |
| RELAY, MICRO | 2 | 3685801C1 |
| SWITCH, PRESSURE | 1 | 2614669C1 |
| SWITCH, PRESSURE | 1 | 3685803C1 |
| COMPRESSOR, AIR CONDITIONER, 12 VOLT NO- IDLE HIGH CAP 716 RING | 1 | 4088312C1 |
| FILTER, AIR AUXILIARY UNIT | 1 | 3685805C1 |
| FAN, CONDENSER | 1 | 3685807C1 |
| FAN, CONDENSER | 1 | 3685807C2 |
| SEAL, WASHER- 5/8- SINGLE SLIM LINE | 1 | 4086318C1 |
| CORE, CONDENSER NO-IDLE | 1 | 3685808C1 |
| MODULE, NO-IDLE HVAC (SLEEPER/BUNK) | 1 | 4106156C91 |
| CORE ASSEMBLY, HEATER | 1 | 3685811C1 |
| SUPPORT ASSEMBLY, DOOR LUGGAGE | 1 | 3685812C2 |
| SUPPORT, MODULE BOTTOM | 1 | 3685813C1 |
| SUPPORT, TXV- SSLW | 1 | 4086209C1 |
| PLATE, TXV COVER- SSLW | 1 | 4086306C1 |
| COVER, CONTROL | 1 | 3685816C1 |
| GROMMET, SENSOR WIRE | 1 | 4088302C1 |
| DOOR AIR CONDITIONER BLEND AIR-12 VOLT | 1 | 3685818C2 |
| NUT, NYLON INSERT M8 X 1.25 | 3 | 3628678C1 |
| SHROUD, BLOWER SCROLL | 1 | 3685819C1 |
| SHROUD, FAN CONDENSER | 1 | 3685820C1 |
| HOUSING, AIR CONDITIONER BOTTOM NO-IDLE EVAPORATOR-BERGSTROM | 1 | 3693479C1 |
| HOUSING, AIR CONDITIONER TOP REAR | 1 | 3685822C1 |
| HOUSING, AIR CONDITIONER BOTTOM NO-IDLE COND-12 VOLT | 1 | 3685823C1 |
| HOUSING, AIR CONDITIONER CASE, CONDENSER SIDE | 1 | 4088395C1 |
| TUBE, LIQUID NO-IDLE | 1 | 3688216C1 |
| TUBE, FILTER NO-IDLE | 1 | 3688217C1 |
| TUBE, EVAPORATOR NO-IDLE | 1 | 3688218C1 |
| TUBE, SUCTION NO-IDLE | 1 | 3688219C1 |
| WASHER, FLAT | 3 | 3685789C1 |
| TUBE, DISCHARGE NO-IDLE | 1 | 3688220C1 |
| SEAL | 1 | 3688221C1 |
| BLOWER, HEATER WHEEL | 1 | 2602545C91 |
| BLOWER, HEATER WHEEL | 1 | 3688222C1 |
| BLOWER, HEATER 12 VOLT MOTOR | 1 | 3688223C1 |
| EVAPORATOR, AIR CONDITIONER REAR | 1 | 4086303C1 |
| PLATE, TOP CONNECTION | 1 | 3688225C1 |
| BOARD ,PRINTED CIRCUIT, NO- IDLE HVAC, NEXT GENERATOR CONTROL | 1 | 4060729C1 |
| TUBE, DRAIN | 1 | 3688227C1 |
| HARNESS, HEATER, 12 VOLT NO-IDLE MODULE CONTROLLER | 1 | 4047640C1 |
| COVER, FUSE-12 VOLT NO- IDLE | 1 | 4047669C1 |
| SUPPORT COMPRESSOR-BERG 12 VOLT NO-IDLE | 3 | 3695242C1 |
| LABEL, FILTER | 1 | 3688230C1 |
| SUPPORT, DRYER | 1 | 3688231C1 |
| SEAL | 1 | 3688232C1 |
| SEAL | 1 | 3688233C1 |
| SEAL | 1 | 3688234C1 |
| SEAL | 1 | 3688235C1 |
| SEAL | 1 | 3688236C1 |
| SEAL | 3 | 3688237C1 |
| SEAL | 2 | 3688238C1 |
| SEAL | 2 | 3688239C1 |
| SCREW, SPECIAL- TXV- M5 X 0.8 X 40.0 SSLW | 2 | 4086883C1 |
| SEAL | 1 | 3688240C1 |
| SCREW, 10-32 X 3/8 | 3 | 4088323C1 |
| VALVE, EXPANSION, TXV | 1 | 4086454C1 |
| SEAL | 1 | 3688244C1 |
| SEAL, BLOCK VALVE PLATE | 1 | 4086264C1 |
| GROMMET, MOUNTING COMPRESSOR | 3 | 3688246C1 |
| VALVE EXPANSION 1/2 TON | 1 | 3685806C1 |
| GASKET, AIR CONDITIONER ADPT OR DUCT BERG 12 VOLT CONTROL | 1 | 3695240C1 |
| SENSOR, DISCHARGE/INLET TEMPERATURE (SLEEPER/BUNK) | 2 | 3695241C1 |
| LABEL, FUSE-BERG 12 NO-IDLE | 1 | 4047670C1 |
| STRAP, CABLE LOCK | 1 | 473321C1 |
| RESISTOR, LINEAR POWER MODULE | 1 | 2520477C91 |
| RESISTOR, LINEAR POWER MODULE | 1 | 3693481C2 |
| SWITCH, COMPRESSOR OVERLOAD NO-IDLE | 1 | 3986577C1 |
| COVER, PROTECTIVE GASKET | 1 | 4088361C1 |
| COVER, COMPRESSOR CAP | 1 | 4088348C1 |
| COVER, HEXAGON FLANGE NUT 1/4-28 SERRATED | 1 | 3986584C1 |
| SCREW, 8-16 X 3/4 TORX HEAD | 2 | 4047619C1 |
| SUPPORT, CONNECTOR MOUNTING | 1 | 4047641C1 |
| GASKET, AIR CONDITIONER, BERG 12 VOLT CONTROL | 1 | 4047643C1 |
| FUSE GIVE AMP ALSO INCLUDE ST 10 AMP MINI.-RED | 1 | 3534209C1 |
| HARNESS, HEATER, POWER 12 VOLT NO-IDLE COMPRESSOR POWER | 1 | 4047660C1 |
| NUT, HEXAGON M6 | 1 | 3544378C1 |
| HARNESS, AIR CONDITIONER, NO IDLE SLEEPER UNIT | 1 | 4106090C91 |
RECOMMENDED PARTS
* This information is provided as is and may be out of date. Please contact us or the manufacturer to verify warranty
coverage.
