W470589036300

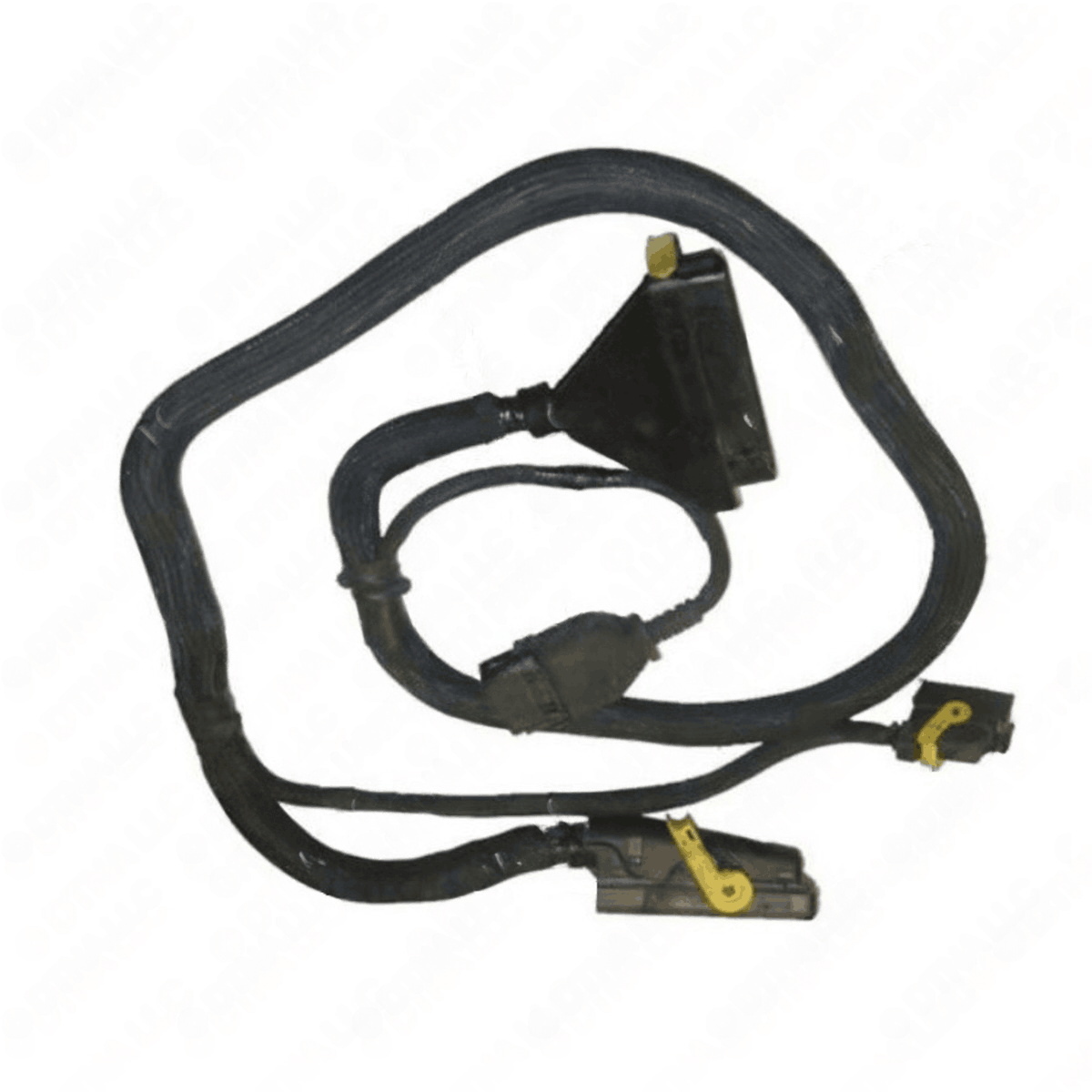

Test Harness Kit
Detroit Diesel
BACK ORDERED
Please contact us for information on lead time
$1,349.95
$1,619.94
This truck part is made by Detroit Diesel. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This comprehensive test harness kit includes multiple extension cables, facilitating seamless electrical testing and diagnostics on DD13 engines. The kit features a combination of 120-pin and 21-pin extensions, each seven feet long, allowing technicians to reach connectors and components that are otherwise difficult to access. This enables thorough inspection and troubleshooting of engine sensors, actuators, and control modules. The flexible wiring and durable connectors help ensure reliable signal transmission during testing procedures. Incorporating this kit into your diagnostic setup can significantly improve accuracy and efficiency, reducing troubleshooting time. It is recommended to source this test harness kit from reputable suppliers like Source One Parts Center to guarantee compatibility and performance in your engine diagnostics.
SPECIFICATIONS
VMRS
053-006-009
Kit Includes
120-pin Extension Cable (1) | 21-pin 7 Foot Extension (1) | 120-pin 7 Foot Extension (1) | 21-pin Extension Cable (1)
OEM Part Number
DDE W470589036300
OEM Description
KIT - TEST HARNESS
