$16.95
$20.34
This truck part is made by Detroit Diesel. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

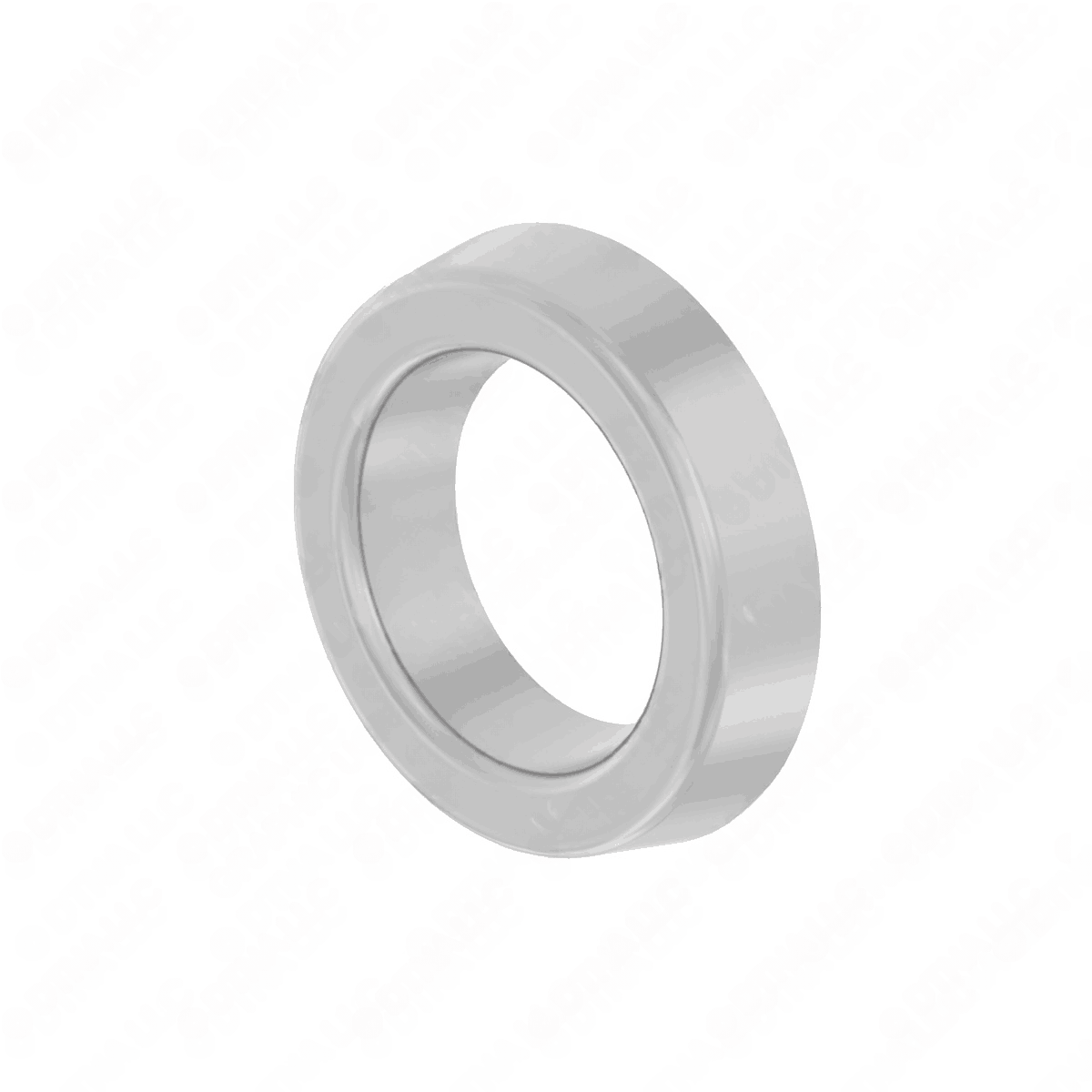

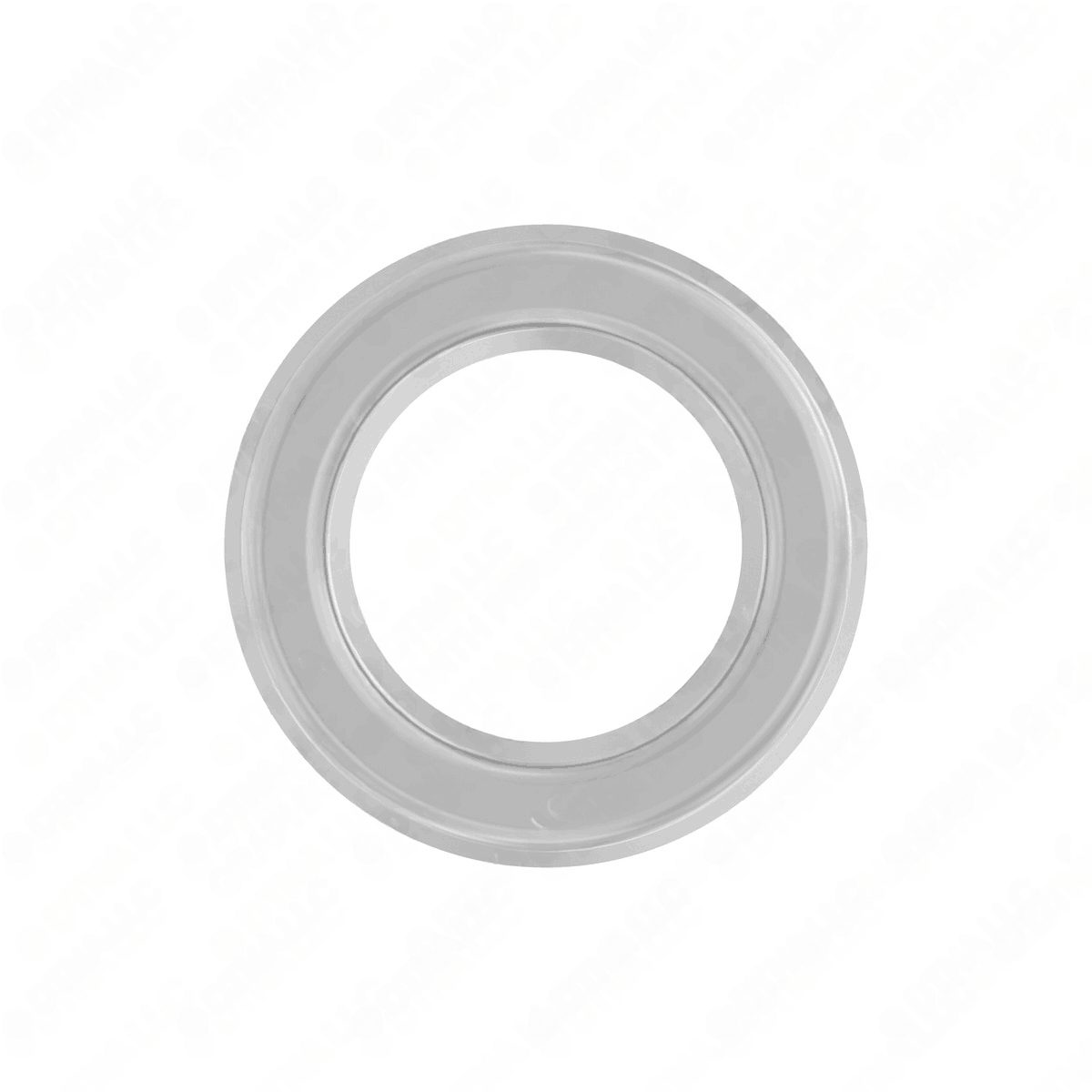

This PTFE seal ring is a compact yet vital component designed to seal small gaps and prevent fluid or gas leaks within various engine systems. Its dimensions—a width of 2.60 mm, a thickness of 2.40 mm, an inner diameter of 7.50 mm, and an outer diameter of 12.30 mm—make it suitable for precise sealing applications. Constructed from polytetrafluoroethylene, it offers excellent chemical inertness, high temperature tolerance, and low friction, making it ideal for demanding environments. Proper installation ensures a leak-proof seal, prolonging component life and maintaining engine efficiency. These rings are particularly useful where chemical resistance and minimal friction are priorities, such as in fuel systems or hydraulic lines. Source One Parts Center is your trusted supplier for authentic, high-quality PTFE seals and technical guidance.
SPECIFICATIONS
VMRS
045-018-044
Outer Diameter
12.30 mm
Thickness
2.40 mm
Width
2.60 mm
Inner Diameter
7.50 mm
OEM Part Number
DDE A0209977747
Material
Polytetrafluoroethylene
OEM Description
SEAL RING
