R23538203
Overhaul Kit for Series 60 12L Engine
Detroit Diesel
UNAVAILABLE
This truck part is made by Detroit Diesel. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

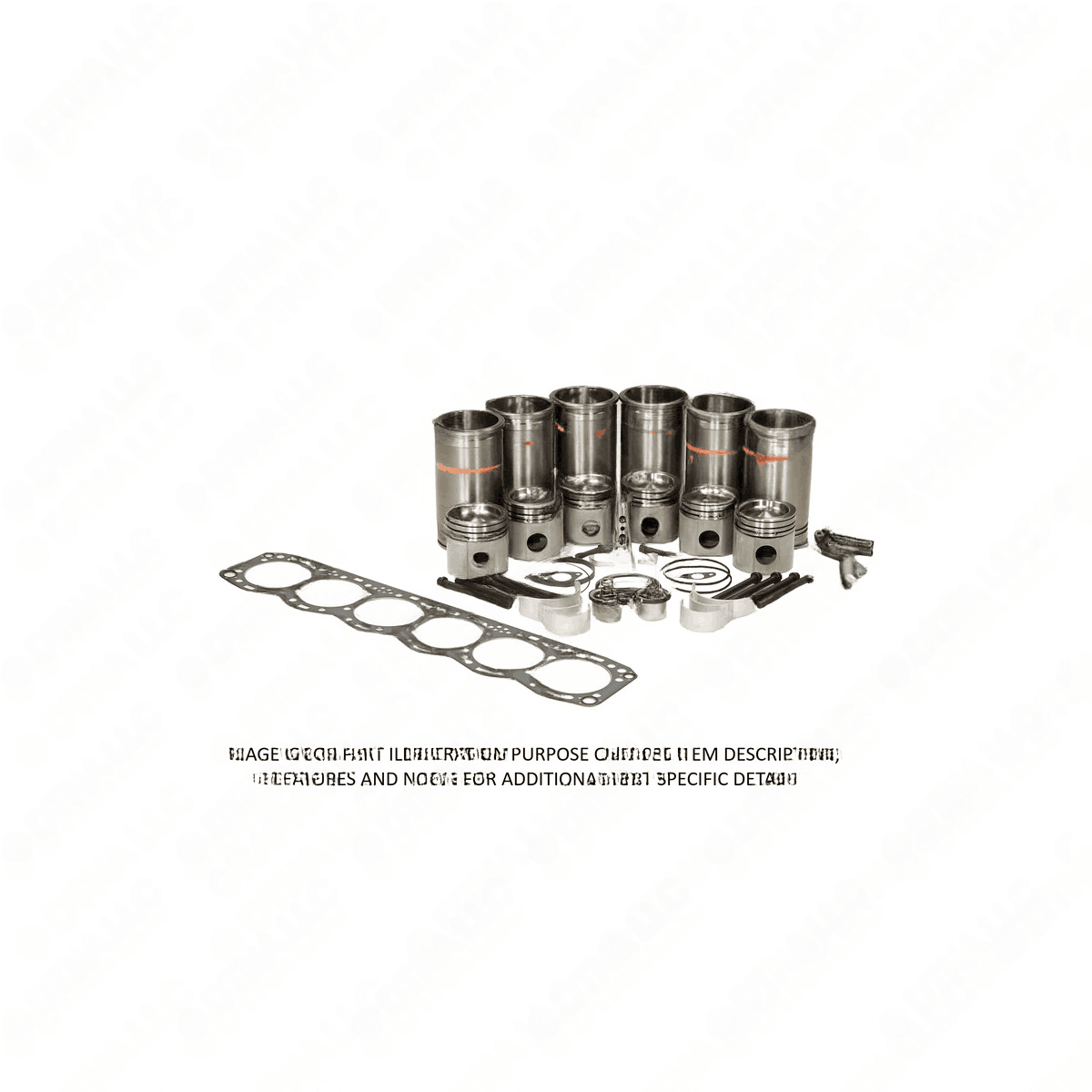

This overhaul kit is a comprehensive solution for restoring a Series 60 12L engine to optimal condition. It includes a wide array of gaskets, seals, bearings, pistons, and other critical components necessary for a complete rebuild. The kit’s extensive parts list ensures compatibility with the Series 60 engine, facilitating a thorough refurbishment that extends engine life and restores peak performance. Designed for professional rebuilds, it helps minimize downtime and maintenance costs by providing all essential parts in one package. The inclusion of high-quality components ensures that the engine will operate reliably after overhaul, meeting or exceeding original specifications. Source One Parts Center offers this overhaul kit, delivering dependable parts for fleet maintenance professionals aiming to maximize engine longevity.
SPECIFICATIONS
VMRS
045-019-004
OEM Part Number
DDE R23538203
OEM Description
OVERHAUL KIT SERIES 60 12L
Kit Includes
Plate(1)| Element (1)| Gasket (2)| Seal(4)| Plug(2)| Seal(1)| Gasket (1)| Seal Ring(1)| Seal(6)| Washer (2)| Bearing (14)| M--Gasket(2)| Seal(12)| Bolt(6)| Ring(2)| Washer (38)| Gasket (3)| Sensor Asm (Srs) Mag Idler S60 (1)| M--Sensor(1)| Ring Seal(3)| Bolt(12)| Solenoid(3)| O Ring Seal (1)| Tube Oil(1)| F/P Gasket (1)| M--Bolt (6)| Seal Ring(4)| Valve Assy (1)| Nut (30)| Sensor (1)| Hose(1)| M--O - Ring Seal(1)| Screw Assy (12)| Screw Assy (6)| Seal(2)| M--Retainer (12)| Sleeve Assy (10)| Bolt Assy(10)| Sensor Assy (1)| Harness (1)| Core Asm(1)| Rt2:Drive Asm (1)| Thermostat (1)| Rkr Arm Asm (6)| M--Bolt (1)| Rt2:Conn Rod Asm (6)| Hose/Tubeasm(1)| Sensor P(1)| Cam & Dwlasm(1)| Nozzle Asm (6)| Tube Assy(1)| Elbow Assy (1)| Expander(6)| Sup To:Dn 23530573(2)| Piston Asm (6)| Bolt P (38)| Sensor O/F (1)| Ring Seal(1)| Rt2:Arm/Rlr Asm(6)| Shell Lwr(7)| Shell Upr(6)| Shell Upr(1)| Shell(12)| Nut (3)| Jumper Harness (1)| Screw Asm(12)| Therm 190(2)| Arm/Rlr Asm (6)| Rt2:Cylinder Hd Gskt(1)| Piston Pin (6)| Ring (6)| Comp Ring(6)| Tube(1)| Liner(6)| Tune Up Kit (1)| Hose Asm(1)| O/Pump Assy (1)| Bull Gear(1)| Cmpr Air(1)| Head Assy (Hw) (1)| F/Pmp(Viton)(1)| S60 Water Pump (1)
Compatibility
Series 60
Weight
2451.54 lb
