23506557

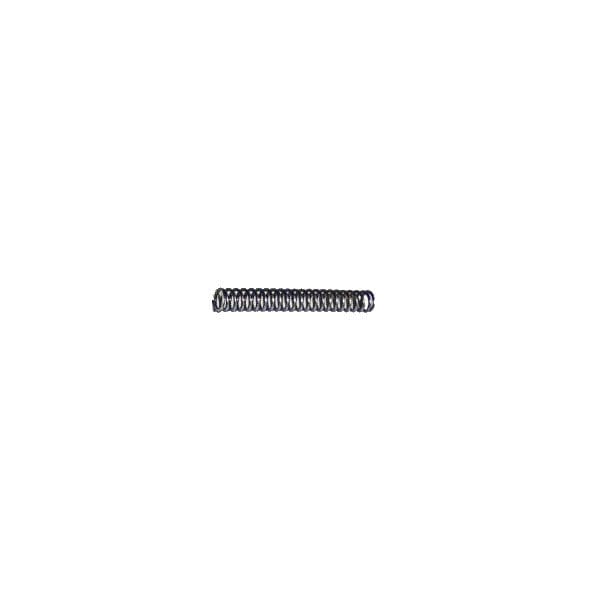

Fuel Pump Relief Valve Spring Assembly
Detroit Diesel
BACK ORDERED
Please contact us for information on lead time
$26.95
$32.34
This truck part is made by Detroit Diesel. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The relief valve spring assembly for the fuel pump harness in the S60 engine is a critical component that ensures proper pressure regulation within the fuel system. Measuring approximately 1.75 inches in length with a wire diameter of 0.03 inches and an outer diameter of 0.24 inches, it is designed to withstand repeated compression cycles. This spring maintains the correct pressure threshold, preventing over-pressurization that could damage fuel injectors or other sensitive components. Its precise tension and dimensions are essential for consistent fuel delivery, optimizing engine performance and efficiency. When replacing or upgrading, sourcing this spring assembly from Source One Parts Center guarantees compatibility with OEM specifications, helping maintain the safety and reliability of your fuel system.
SPECIFICATIONS
Wire Diameter
0.03 in
Outer Diameter
0.24 in
VMRS
053-007-028
Length
1.75 in
OEM Part Number
DDE 23506557
OEM Description
SPRING RELIEF VALVE - FUEL PUMP, HARNES, S60
