A4709970252

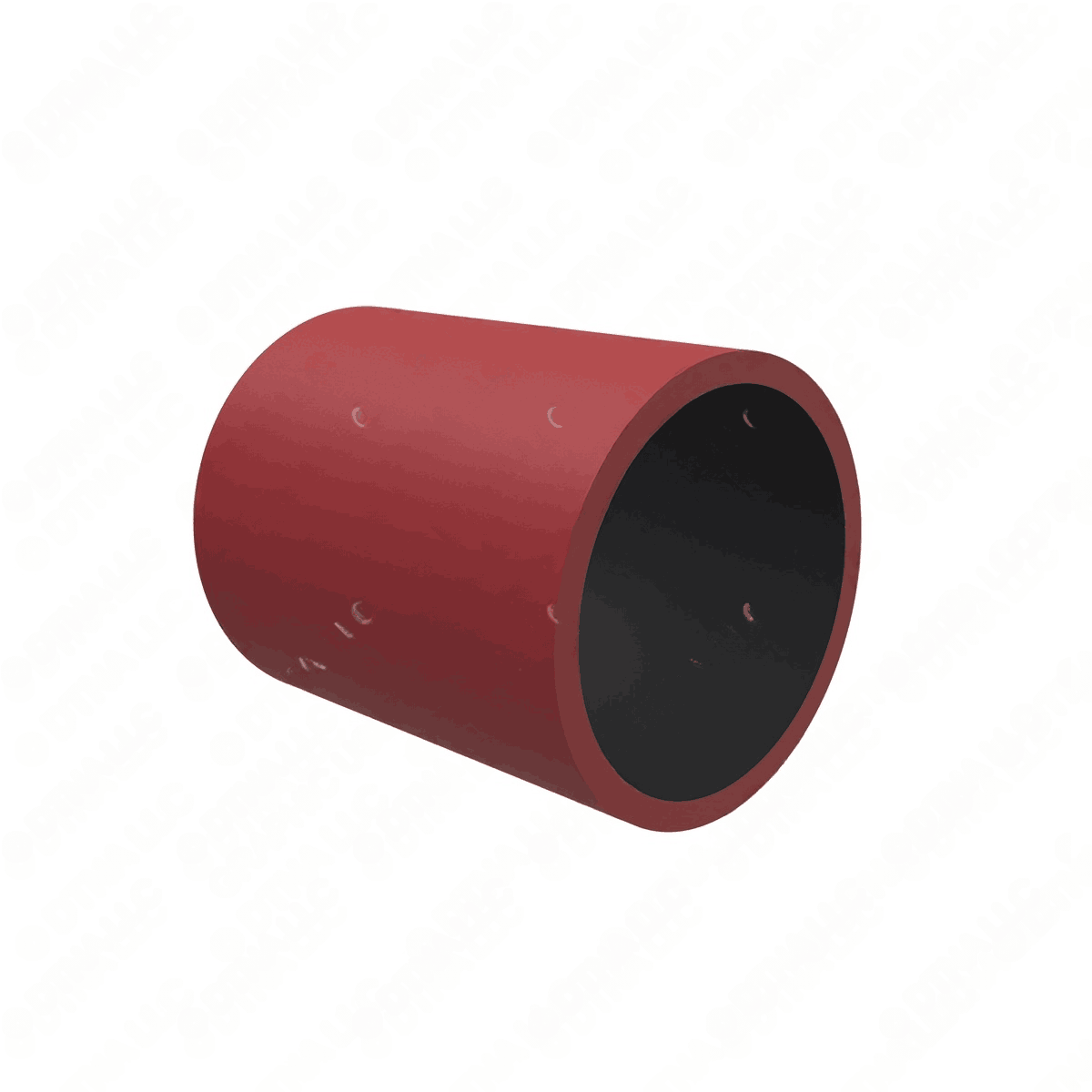

EGR Exhaust Gas Hose
Detroit Diesel
AVAILABLE
More than 10 are currently available
Ships within 2-4 business days
$31.95
$38.34
This truck part is made by Detroit Diesel. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Designed for EGR systems operating under HDEP standards, this exhaust gas hose features a silicone rubber construction with a characteristic iron oxide red color. It measures 68 mm in length with an inner diameter of 50 mm and an outer diameter of 57.50 mm, providing a flexible yet durable conduit for exhaust gases. Its wall thickness of 3.75 mm ensures resilience against high temperatures and chemical exposure, preventing cracks or degradation over time. The fluorocarbon elastomer inner core offers excellent chemical resistance, maintaining performance in demanding environments. Proper connection of this hose is essential for controlling emissions and maintaining engine efficiency under EPA10 and GHG17 standards. Source One Parts Center supplies this high-grade hose to support your emission control systems, ensuring compliance and operational reliability.
SPECIFICATIONS
VMRS
043-001-251
Wall Thickness
3.75 mm
Inner Diameter
50 mm
Outer Diameter
57.50 mm
Length
68 mm
OEM Part Number
DDE A4709970252
OEM Description
EXHAUST GAS HOSE - EGR HDEP EPA10 GHG17
Inner Core Material
Fluorocarbon Elastomer
Hose Color
Iron Oxide Red
Hose Material
Silicone Rubber
