A6813520144
Yoke 1760 HR
Detroit Diesel
AVAILABLE
More than 10 are currently available
Ships within 16-18 business days
$149.95
$179.94
This truck part is made by Detroit Diesel. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

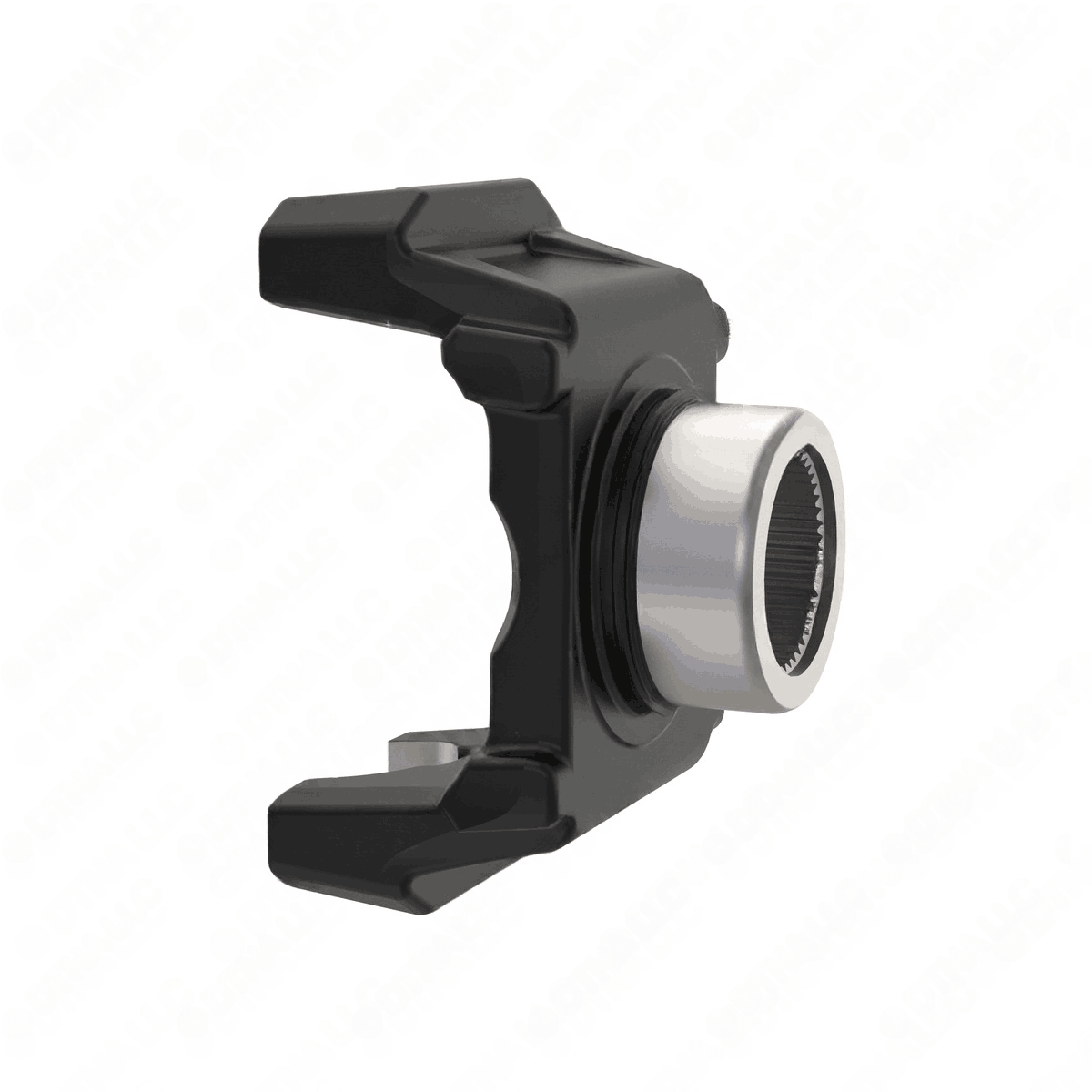

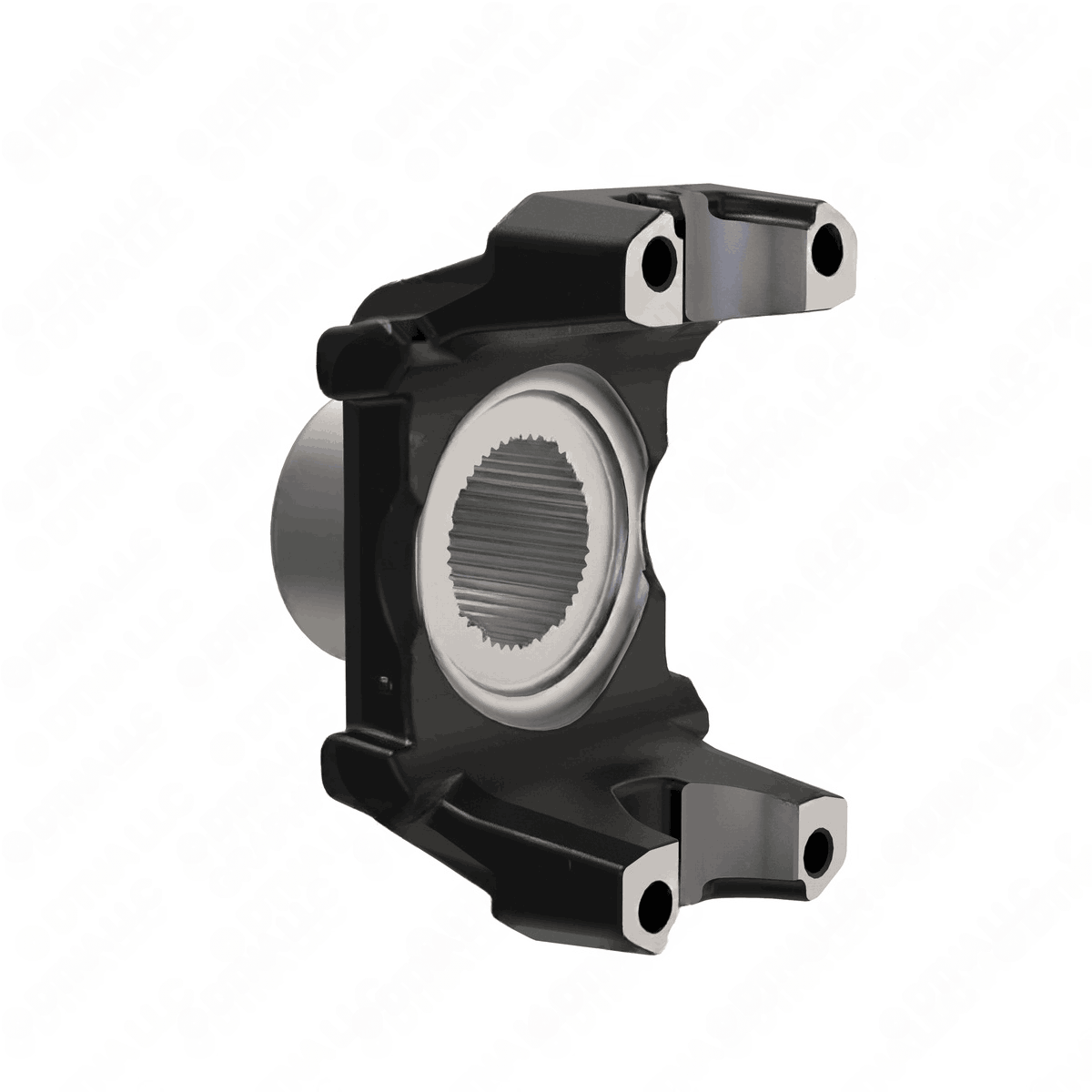

This yoke designed for 1760 HR applications features a bore diameter of 3.38 inches and a spline length of 2.23 inches, making it suitable for high-torque transmission in heavy-duty drive systems. Its spline diameter of 2.38 inches and a maximum hub diameter of 3.26 inches provide secure engagement with corresponding shafts or joints. The hole thread size of 1/2-20 THD in and a center-to-end length of about 5.06 inches facilitate precise assembly. With a spline quantity of 46, this yoke ensures smooth power transfer and minimal play during operation. Its robust construction is engineered to withstand the stresses of heavy-duty environments, including vibrations and torque fluctuations. For reliable performance and fit, this part is available through Source One Parts Center, where quality assurance is a priority.
SPECIFICATIONS
VMRS
022-003-072
Hole Thread Size
1/2-20 THD in
Spline Length
2.23 in
Spline Diameter
2.38 in
Maximum Hub Diameter
3.26 in
Bore Diameter
3.38 in
Spline Quantity
46
Center To End Length
5.06 in
OEM Part Number
DDE A6813520144
OEM Description
YOKE, 1760HR
