R23522123

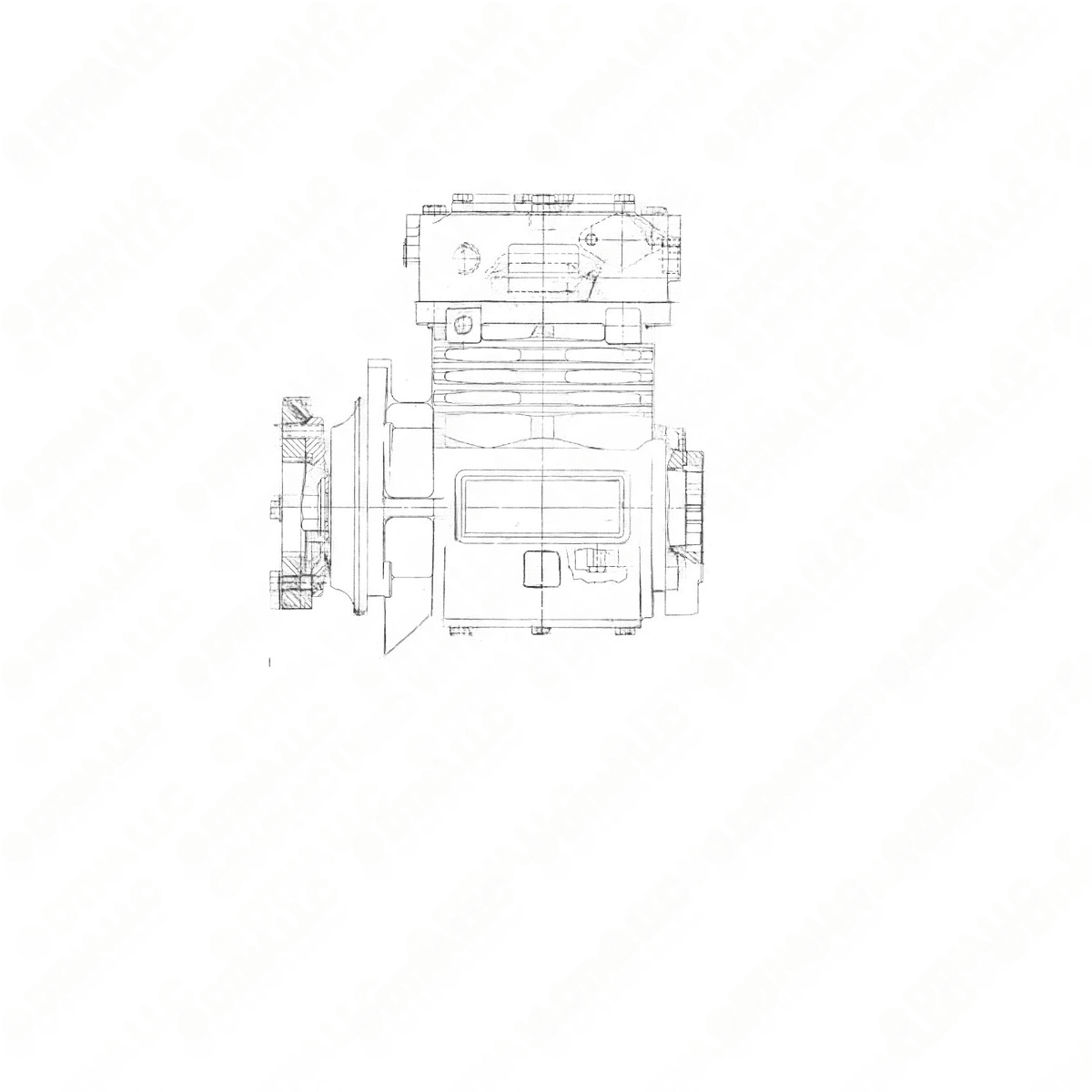

Air Brake Compressor
Detroit Diesel
AVAILABLE
More than 10 are currently available
Ships within 2-4 business days
This truck part is made by Detroit Diesel. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Similar in design to the TF550 model, this compressor for air brakes features a 12.38-inch length and gear drive, ensuring reliable and steady airflow critical for brake system performance. Its water-cooled system manages heat buildup during extended use, maintaining consistent pressure and preventing overheating. With threaded ports for coolant, oil, and governor connections, installation and maintenance are straightforward, supporting long-term durability. The six-hole mounting pattern provides stability, minimizing vibrations during operation. This compressor is vital for delivering the reliable air supply necessary for effective braking, especially in heavy-duty applications. Source One Parts Center supplies this component as a durable replacement, ensuring your vehicle's braking system remains responsive and safe under demanding conditions.
SPECIFICATIONS
Oil Outlet Port Diameter
0.63 in
VMRS
013-009-001
Coolant Inlet Port Thread Size
1/2-14 NPT in
Coolant Port Thread Size
1/2-14 NPT in
Outlet Port Thread Size
1/2-14 NPT in
Oil Inlet Port Thread Size
1/4-18 NPT in
Governor Port Thread Size
1/8-27 NPT in
Length
12.38 in
Mounting Hole Quantity
6
Tooth Quantity
69
OEM Description
COMPRESSOR - AIR BRAKES
OEM Part Number
DDE R23522123
Mounting Type
Flange
Compressor Drive Type
Gear
Model
TU-FLO 750
Coolant Type
Water
Governor Port Included
Yes
CROSS REFERENCES
- BW R5004187, R5004187, BW--R5004187, BWR5004187, ABP RC10 5004083, RC10 5004083, RC10-5004083, RC105004083, ABP-RC10-5004083, ABPRC105004083, BW 5004187X, 5004187X, BW--5004187X, BW5004187X, DDR R23522123, R23522123, DDR-R23522123, DDRR23522123, HDX EL16312X, EL16312X, HDX-EL16312X, HDXEL16312X
