R23522122

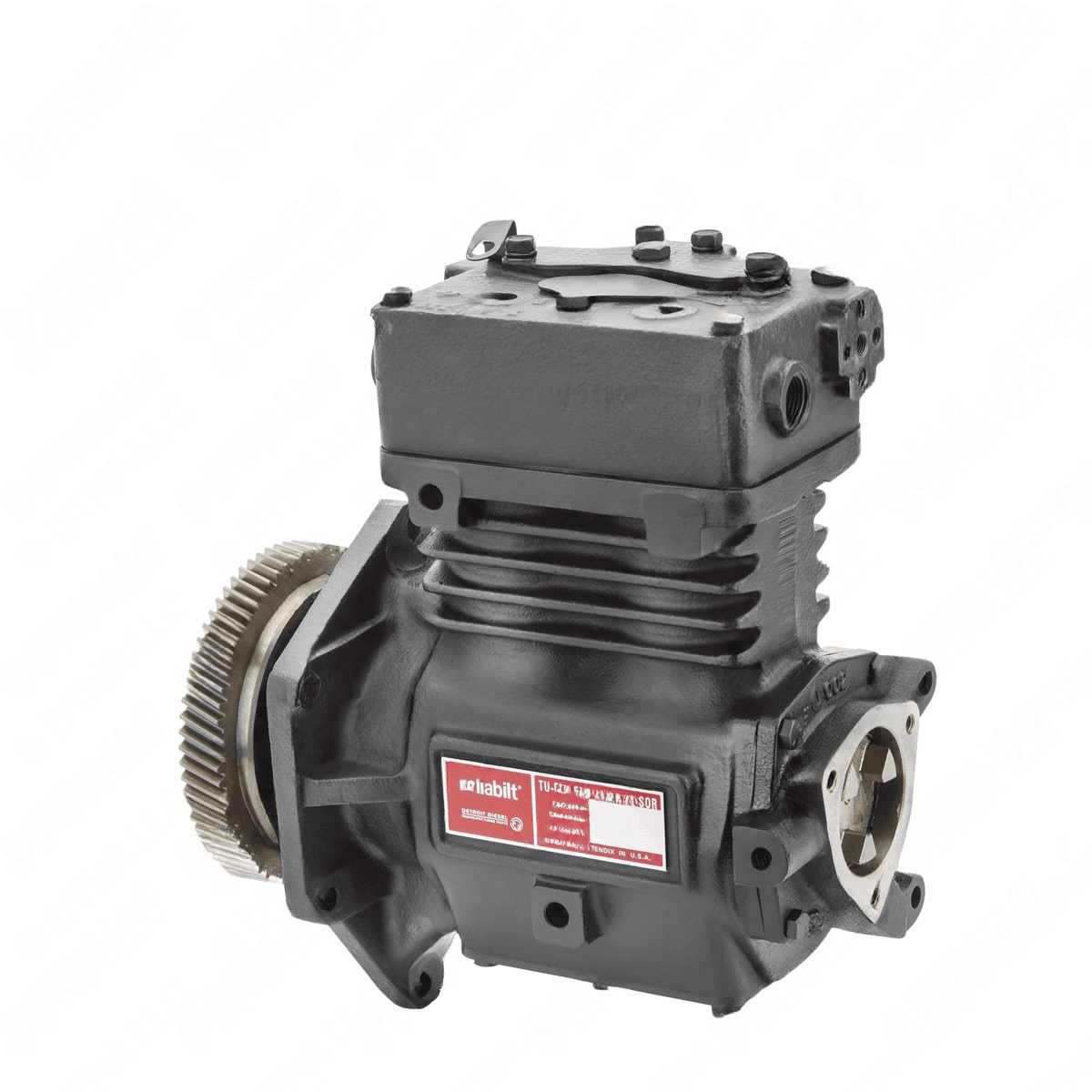

Air Brake Compressor for TF550
Detroit Diesel
AVAILABLE
More than 10 are currently available
Ships within 2-4 business days
This truck part is made by Detroit Diesel. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This compressor is designed for use with air brake systems, specifically the TF550 model, known for its durability and reliable air delivery. Its dimensions include a 12.38-inch length, with threaded ports for coolant, oil, and governor connections, facilitating straightforward installation. The water-cooled construction ensures efficient heat dissipation, preventing overheating during prolonged operation. The gear-driven drive system guarantees consistent airflow and pressure, critical for maintaining brake system integrity. Six mounting holes provide secure attachment, ensuring stability under heavy loads. This compressor is essential for maintaining optimal braking performance in heavy-duty trucks, ensuring safety and operational efficiency. Source One Parts Center offers this unit as a trusted replacement or upgrade option for your air brake system components.
SPECIFICATIONS
Oil Outlet Port Diameter
0.63 in
VMRS
013-009-001
Coolant Inlet Port Thread Size
1/2-14 NPT in
Coolant Port Thread Size
1/2-14 NPT in
Outlet Port Thread Size
1/2-14 NPT in
Oil Inlet Port Thread Size
1/4-18 NPT in
Governor Port Thread Size
1/8-27 NPT in
Length
12.38 in
Mounting Hole Quantity
6
Tooth Quantity
69
OEM Description
COMPRESSOR - AIR BRAKES, TF550
OEM Part Number
DDE R23522122
Mounting Type
Flange
Compressor Drive Type
Gear
Model
TU-FLO 550
Coolant Type
Water
Governor Port Included
Yes
CROSS REFERENCES
- BW R5004188, R5004188, BW--R5004188, BWR5004188, ABP RC10 5004082, RC10 5004082, RC10-5004082, RC105004082, ABP-RC10-5004082, ABPRC105004082, DDR R23522122, R23522122, DDR-R23522122, DDRR23522122, HDX 109429X, 109429X, HDX-109429X, HDX109429X
