23509196
Fitting - One Tube, for S60 14L DDEC IV, 2002 Non-EGR
Detroit Diesel
BACK ORDERED
Please contact us for information on lead time
$21.95
$26.34
This truck part is made by Detroit Diesel. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

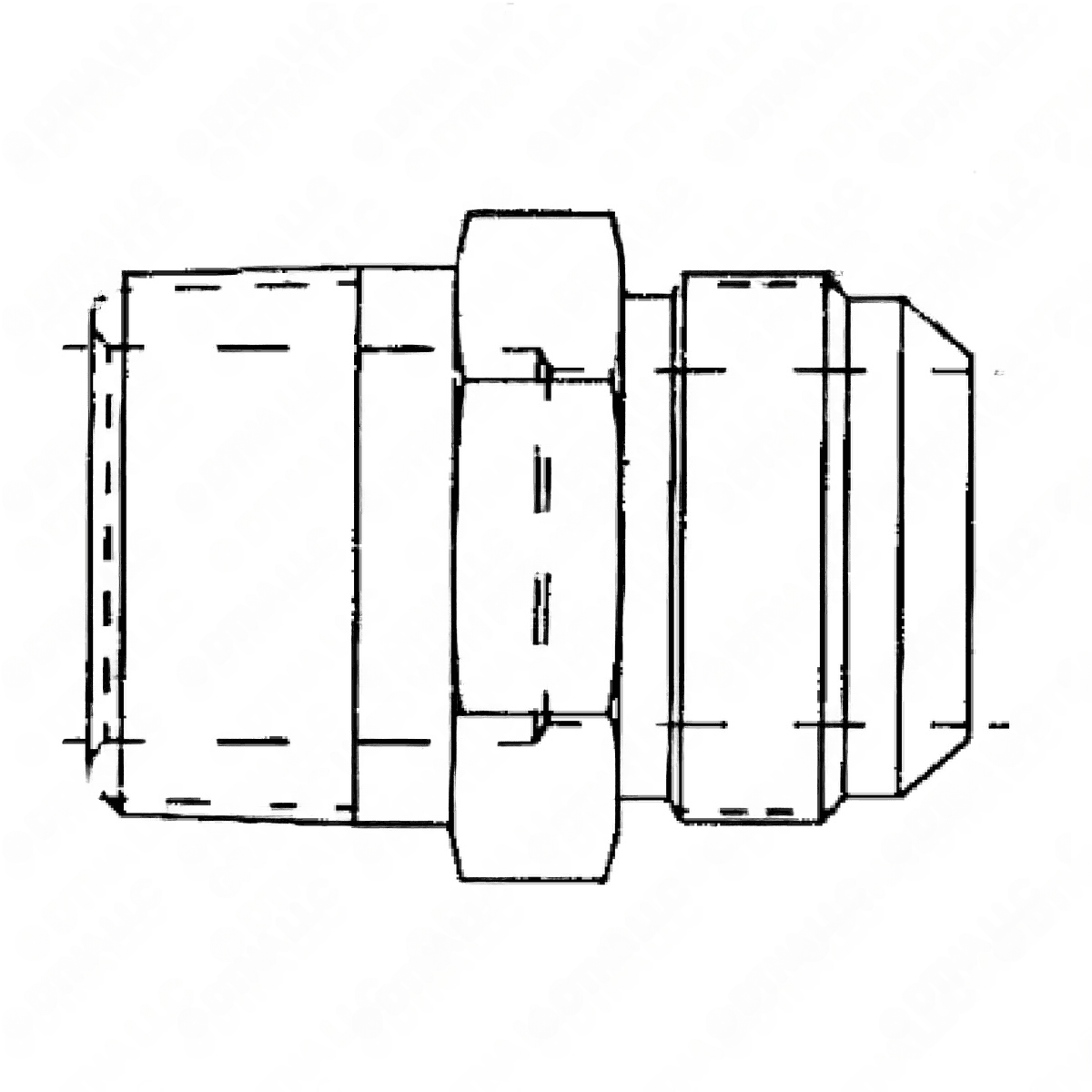

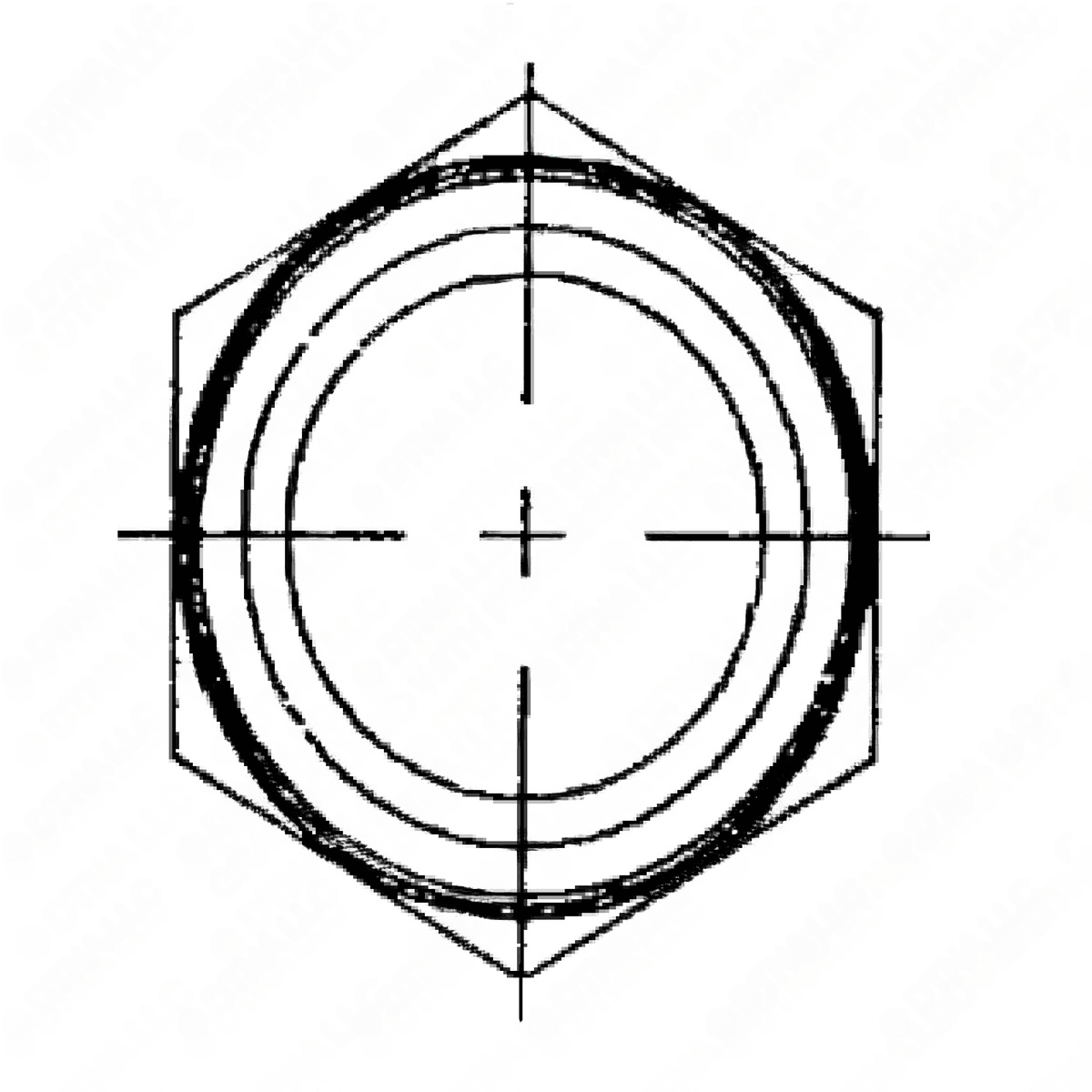

This fitting connects a single fluid or vent tube directly to the S60 14L DDEC IV engine, constructed from galvanized steel for corrosion resistance. Its dimensions include a flat end width of 1.38 inches and threaded ends—1-1/2 NPTF and 1-5/16 UN-2A—designed to ensure compatibility with various fluid lines. Inner diameters of 0.94 and 0.84 inches facilitate efficient fluid flow, reducing pressure drops and maintaining system efficiency. Correct installation of this fitting is critical for leak prevention and system integrity, especially in cooling, fuel, or vent applications. Its durable steel construction ensures long-term performance under high-pressure and vibration conditions. Source One Parts Center offers this fitting, providing quality components to support your heavy-duty engine systems.
SPECIFICATIONS
End 2 Inner Diameter
0.84 in
End 1 Inner Diameter
0.94 in
VMRS
042-004-001
End 2 Thread Size
1 5/16 UN-2A in
End 1 Thread Size
1-111/2 NPTF in
Flat End Width
1.38 in
Finish
Cadmium Plated
OEM Part Number
DDE 23509196
OEM Description
FITTING 1 TUBE - 1 S60 14L DDEC IV 02 NON EGR
Material
Steel
