RA9060964999

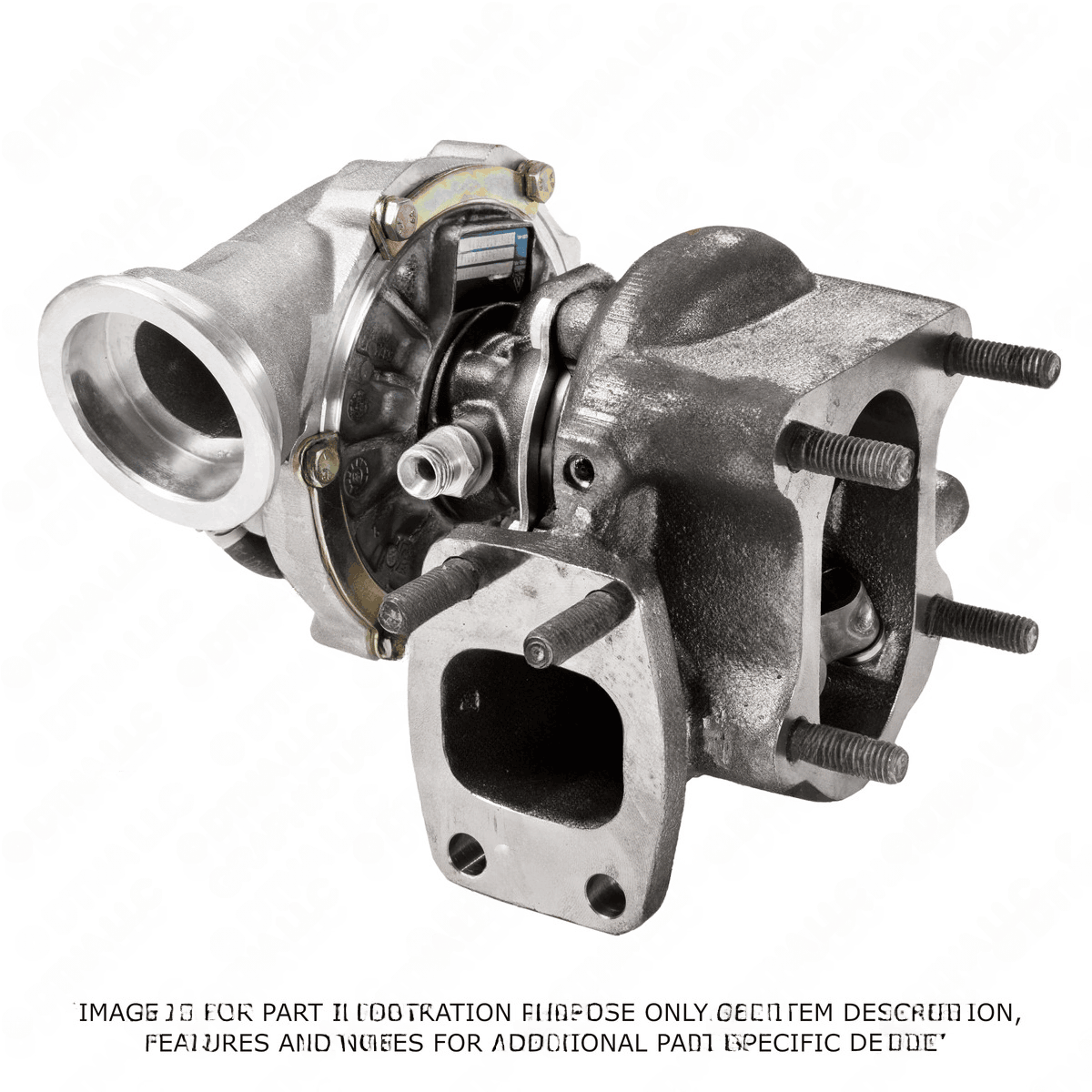

Exhaust Gas Turbocharger for MBE900 7L EPA98
Detroit Diesel
BACK ORDERED
Please contact us for information on lead time
This truck part is made by Detroit Diesel. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This turbocharger for the MBE900 7-liter engine, EPA98 compliant, is designed to deliver consistent high performance and durability. Its overall length of 277.5 mm, along with a turbine exducer diameter of 70 mm and an inducer of 58.8 mm, ensures efficient exhaust energy conversion. The aluminum compressor wheel and Inconel turbine wheel are engineered for high-temperature resilience, supporting maximum revolutions of 2300 RPM. The unit's construction emphasizes strength and thermal stability, vital for prolonged heavy-duty operation. This component optimizes engine power, improves fuel economy, and maintains emissions standards. Installation of this turbocharger restores or enhances engine performance, making it a reliable choice for fleet operators and repair professionals. Source One Parts Center is your trusted source for quality heavy-duty turbo components, dedicated to supporting robust engine operation.
SPECIFICATIONS
VMRS
043-004-001
Compressor Inlet Outer Diameter
101.60 mm
Mounting Hole Diameter
11 mm
Maximum Rated Revolutions Per Minute
2300 RPM
Overall Length
277.50 mm
Compressor Outlet Inner Diameter
52 mm
Compressor Inducer Diameter
55 mm
Turbine Inducer Diameter
58.80 mm
Compressor Outlet Outer Diameter
70 mm
Turbine Exducer Diameter
70 mm
Compressor Exducer Diameter
83 mm
Compressor Inlet Inner Diameter
94 mm
Compressor Wheel Material
Aluminum
OEM Part Number
DDE RA9060964999
Fuel Type
Diesel
OEM Description
EXHAUST GAS TURBOCHARGER MBE900 7L EPA98
Turbine Wheel Material
Inconel
