R23528058

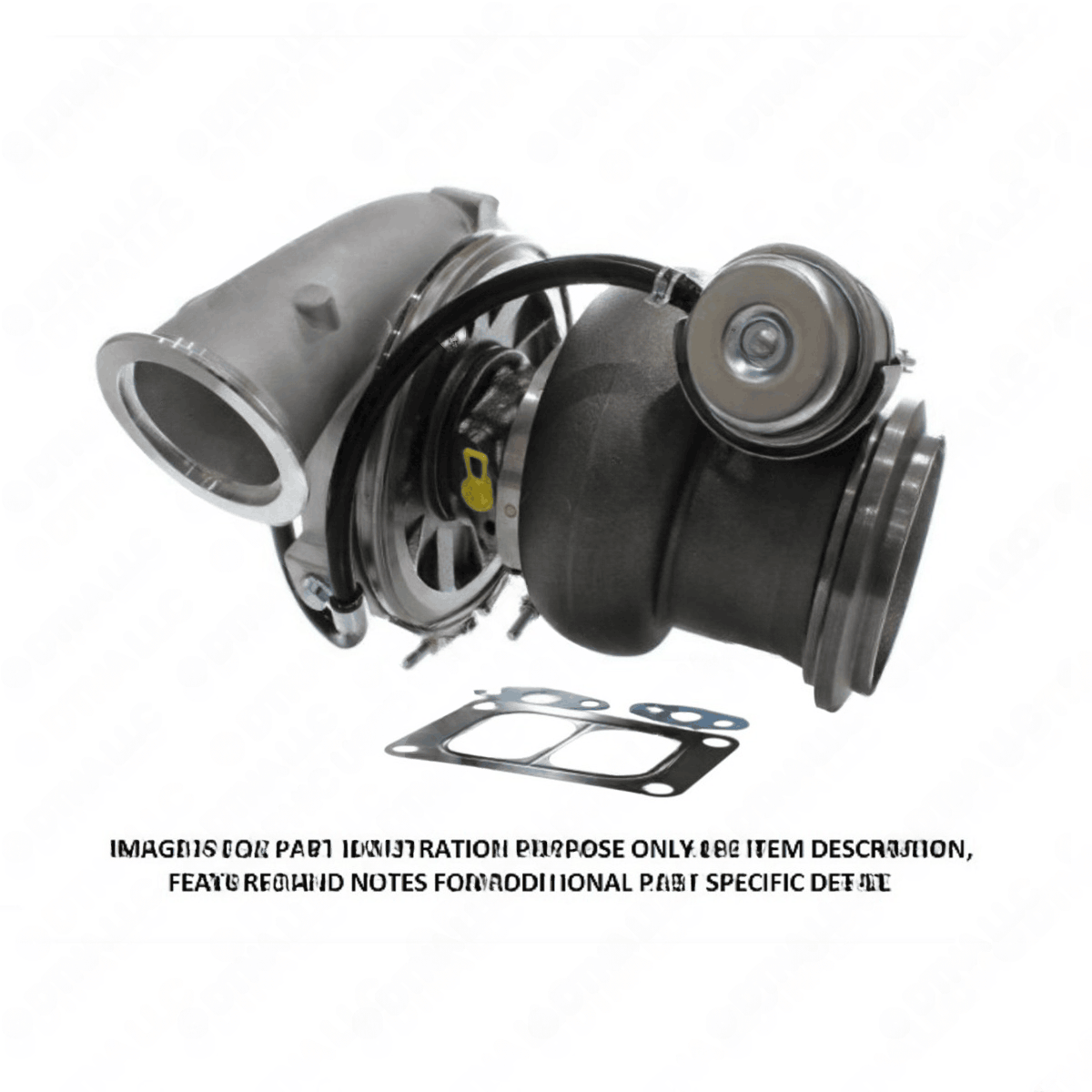

Turbo Assembly GTA4294BNS 1.15 A/R Vertical Medium and High Pressure
Detroit Diesel
BACK ORDERED
Please contact us for information on lead time
This truck part is made by Detroit Diesel. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This turbo assembly provides a 1.15 A/R ratio with a vertical medium/high configuration, optimized for Series 60 engines. Its overall length of 322.11 mm and specific dimensions allow for precise fitment and performance. The turbine features a diameter of 75.15 mm, with inducer and outlet diameters designed for maximum energy extraction. The compressor side boasts an inlet diameter of 129.03 mm and a 93.98 mm exducer, supporting high airflow and boost levels necessary for demanding diesel operations. The micron rating of 20 ensures filtration efficiency, while a maximum rated RPM of 2100 guarantees high responsiveness. Constructed with durability and thermal stability in mind, the assembly enhances engine power, efficiency, and emissions compliance. Source One Parts Center stocks this turbo for prompt delivery, supporting ongoing heavy-duty engine maintenance and performance upgrades.
SPECIFICATIONS
VMRS
043-004-001
Compressor Outlet Outer Diameter
107 mm
Mounting Hole Diameter
11 mm
Turbine Trim
12.98 mm
Turbine Outlet Outer Diameter
122.71 mm
Compressor Inlet Outer Diameter
129.03 mm
Micron Rating
20 microns
Maximum Rated Revolutions Per Minute
2100 RPM
Overall Length
322.11 mm
Compressor Inducer Diameter
70.25 mm
Turbine Exducer Diameter
75.15 mm
Compressor Trim
8.83 mm
Turbine Inducer Diameter
82 mm
Compressor Outlet Inner Diameter
82.35 mm
Oil Inlet Inner Diameter
9.53 mm
Compressor Exducer Diameter
93.98 mm
OEM Part Number
DDE R23528058
Fuel Type
Diesel
OEM Description
TURBO ASSEMBLY GTA4294BNS 1.15 A/R VERTICAL MEDIUM AND HIGH
CROSS REFERENCES
- DDE E23528058, E23528058, DDE-E23528058, DDEE23528058
