R23536661

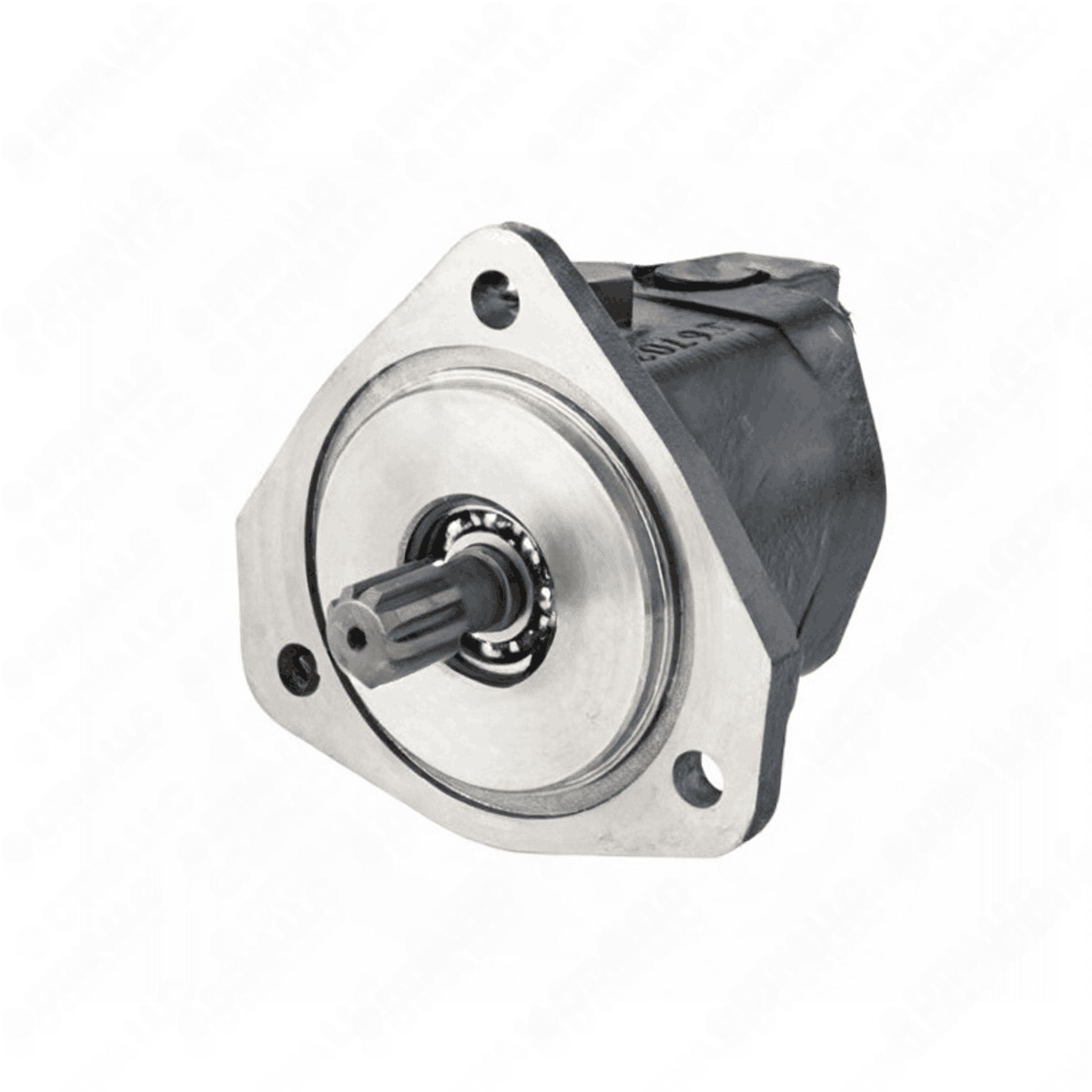

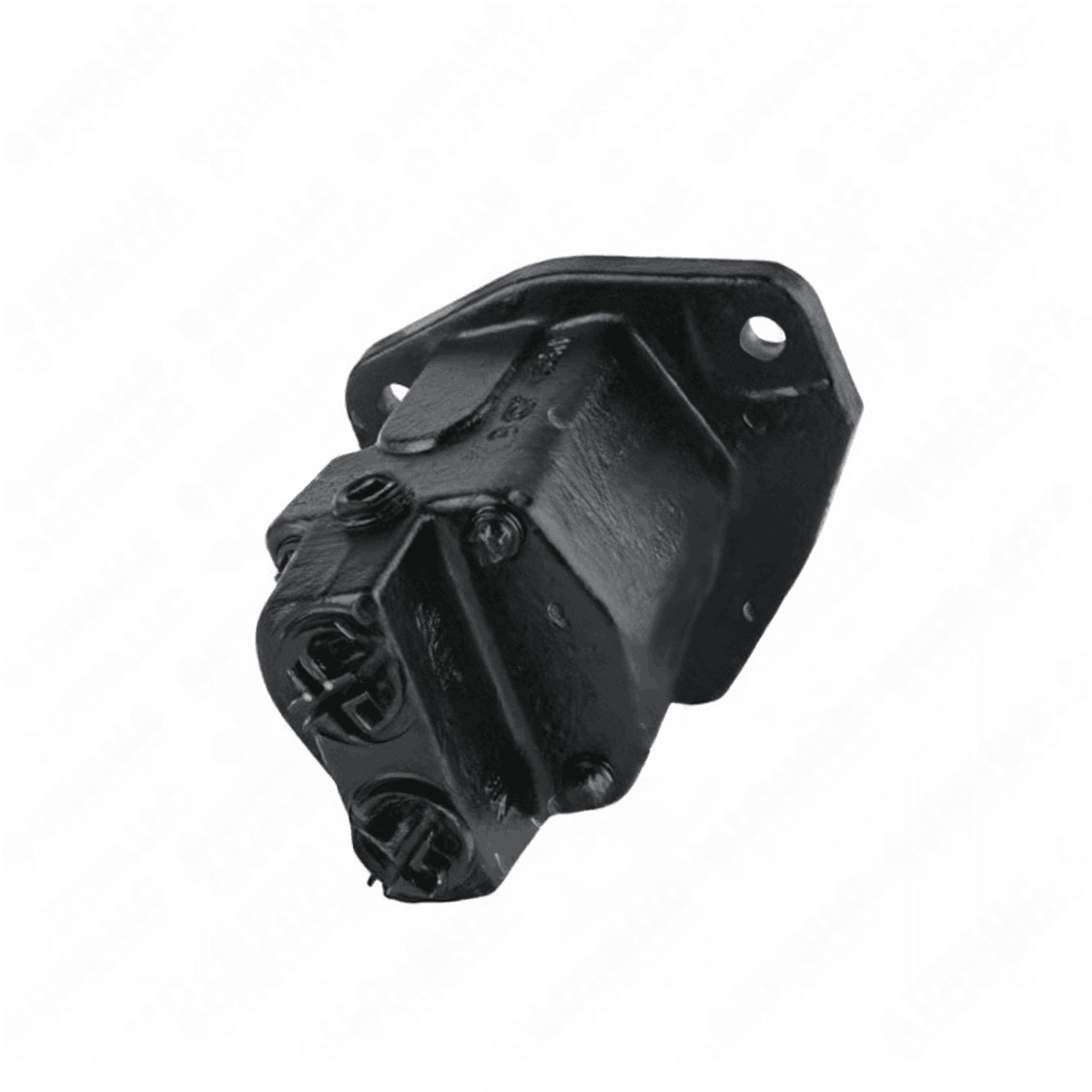

Fuel Pump Assembly for S60 14L DDEC VI EPA07
Detroit Diesel
IN STOCK
More than 10 are currently available
Ships within 1 business day
This truck part is made by Detroit Diesel. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
This fuel pump assembly for the Series 60 14L engine with DDEC VI and EPA07 standards features a precisely engineered design aimed at reliable fuel delivery. The compact dimensions, including a height of 3.92 inches and length of 5.36 inches, allow for straightforward installation within engine compartments. The spline shaft and multiple mounting holes facilitate secure attachment, ensuring stable operation. It supports a maximum speed of 2750 RPM and can handle continuous pressures up to 300 psi, with an intermittent capacity of 500 psi, making it suitable for demanding applications. Crafted with a painted finish, this remanufactured pump combines durability with performance. Its inlet and outlet ports are threaded with M16X1.5 specifications, allowing for secure connections. For trusted quality, Source One Parts Center offers this assembly to help keep your fuel system operating efficiently and reliably.
SPECIFICATIONS
Mounting Hole Diameter
0.34 in
Spline Length
0.73 in
VMRS
044-003-027
Flow Capacity
1.68 gpm
Bypass Relief Valve Setting
105 psi
Capacity
14 L
Displacement
2.64 cc/rev
Maximum Speed
2750 RPM
Mounting Hole Quantity
3
Bolt Circle Diameter
3.48 in
Height
3.92 in
Continuous Pressure Rating
300 psi
Length
5.36 in
Intermittent Pressure Rating
500 psi
Spline Quantity
9
Rotation Direction
Clockwise
OEM Part Number
DDE R23536661
OEM Description
FUEL PUMP ASSEMBLY S60 14L DDEC VI EPA07
Inlet Fitting Type
Female Thread
Inlet Port Thread Size
M16X1.5 in
Outlet Port Thread Size
M16X1.5 in
Finish
Painted
Manufacturing Type
Remanufactured
Shaft Type
Spline Shaft
CROSS REFERENCES
- DDE E23536661, E23536661, DDE-E23536661, DDEE23536661
