Water Outlet Connection
Cummins®

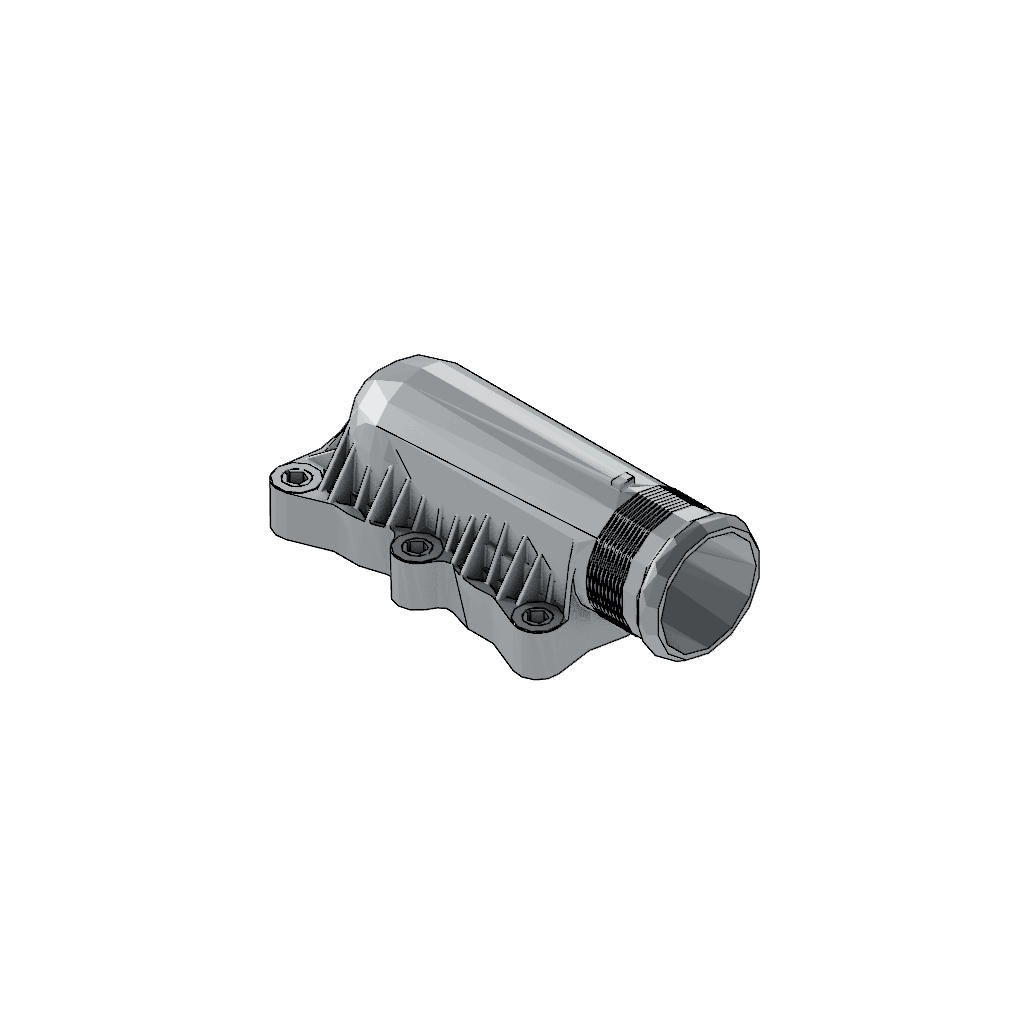

The Water Outlet Connection 3697711 by Cummins is a component designed for use in the cooling systems of heavy-duty trucks. Its purpose is to facilitate the efficient circulation of coolant throughout the engine, ensuring optimal operating temperatures are maintained. This part is integral to the overall cooling system, contributing to the longevity and performance of the engine.

Basic Concepts of Water Outlet Connections

A water outlet connection is a component that allows coolant to exit the engine block and enter other parts of the cooling system, such as the radiator or thermostat housing. It plays a role in the engine cooling system by directing the flow of coolant, which helps regulate engine temperature ¹. The interaction between the water outlet connection and other components like the thermostat and radiator is crucial for maintaining efficient coolant circulation and temperature control.

Purpose of the 3697711 Water Outlet Connection

The 3697711 Water Outlet Connection is specifically designed to direct coolant flow from the engine block to other parts of the cooling system in heavy-duty trucks. It ensures that coolant is evenly distributed, which helps in maintaining consistent engine temperatures under various operating conditions. This part contributes to the efficient operation of the cooling system by providing a secure and reliable connection point for coolant passage.

Key Features

The 3697711 Water Outlet Connection is constructed from durable materials that are resistant to corrosion and high temperatures, ensuring longevity in demanding environments ². Its design includes precise fittings and seals that enhance the security of the connection, reducing the risk of leaks. Additionally, the part may feature unique attributes such as reinforced construction or specialized coatings that further improve its performance and durability.

Benefits

The advantages provided by the 3697711 Water Outlet Connection include improved coolant flow, which enhances the efficiency of the cooling system. This results in better engine protection against overheating, especially under heavy-duty conditions. The part’s reliable construction and design contribute to increased overall system reliability, ensuring consistent performance in various operating scenarios.

Installation Process

Proper installation of the 3697711 Water Outlet Connection involves several steps to ensure a secure fit. Preparatory steps include cleaning the installation area and inspecting the part for any damage. Tools required may include wrenches and sealants. Best practices during installation include applying the correct amount of sealant, ensuring all connections are tight, and verifying that there are no leaks after the installation is complete.

Common Issues and Troubleshooting

Common problems associated with water outlet connections can include leaks or blockages. Troubleshooting steps to diagnose these issues may involve inspecting the connection for signs of wear or damage, checking for proper sealant application, and ensuring that all connections are secure. Resolving these issues typically involves repairing or replacing damaged components and ensuring that all connections are correctly installed.

Maintenance Tips

Regular maintenance practices for the 3697711 Water Outlet Connection include periodic inspection for signs of wear, corrosion, or leaks. Cleaning procedures may involve removing any buildup around the connection points to ensure unobstructed coolant flow. Adhering to recommended inspection intervals and performing routine checks can help maintain the longevity and optimal performance of the part.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a reputation for quality and innovation in the heavy-duty truck industry. The company offers a wide range of products designed to meet the demanding requirements of various applications, ensuring reliable performance and durability.

Water Outlet Connection Part 3697711 Compatibility with Cummins Engines

The Water Outlet Connection part number 3697711, manufactured by Cummins, is designed to fit a variety of Cummins engines. This part is integral in managing the flow of coolant within the engine system, ensuring optimal thermal efficiency and preventing overheating.

Compatible Engines

• ISG11 CM2880 G108
• ISG12 CM2880 G107
• ISG12 G CMOH6.0 G111
• QSG12 CM2880 G112
• QSG12/X12 CM2350 G110
• X11 CM2670 X126B
• X12 CM2350 X119B
• X12 CM2670 X121B
• X12N CMMDG1 X143B
• X13 CM2670 X122B

Grouping by Engine Series

ISG Series

• ISG11 CM2880 G108
• ISG12 CM2880 G107
• ISG12 G CMOH6.0 G111

The ISG series engines are known for their robust design and are often used in heavy-duty applications. The Water Outlet Connection part 3697711 is engineered to fit seamlessly into these engines, ensuring a reliable seal and efficient coolant flow.

QSG Series

• QSG12 CM2880 G112
• QSG12/X12 CM2350 G110

The QSG series engines are typically used in medium-duty applications. The part 3697711 is compatible with these engines, providing the necessary connection for coolant management.

X12 Series

• X11 CM2670 X126B
• X12 CM2350 X119B
• X12 CM2670 X121B
• X12N CMMDG1 X143B
• X13 CM2670 X122B

The X12 series engines are designed for a range of applications, from medium to heavy-duty. The Water Outlet Connection part 3697711 is compatible with all listed X12 series engines, ensuring consistent performance and durability across various models.

Role of Part 3697711 Water Outlet Connection in Engine Systems

The Water Outlet Connection, identified as part 3697711, is a component in the thermal management system of an engine. It interfaces directly with the thermostat housing, facilitating the flow of coolant between the engine block and the radiator.

When the engine operates, it generates a significant amount of heat. The Water Outlet Connection plays a key role in dissipating this heat by allowing coolant to circulate through the engine’s cooling passages. It connects to the thermostat housing, which houses the thermostat—a temperature-sensitive valve that regulates the flow of coolant based on the engine’s temperature.

As the engine warms up, the thermostat opens, allowing coolant to flow from the water outlet connection through the radiator, where it is cooled before returning to the engine. This continuous circulation ensures that the engine maintains an optimal operating temperature, preventing overheating and potential damage.

The Water Outlet Connection is also responsible for sealing the connection between the thermostat housing and the engine block, ensuring that coolant does not leak out. This seal is vital for maintaining the integrity of the cooling system and ensuring efficient heat transfer.

Conclusion

In summary, the Water Outlet Connection (part 3697711) is integral to the engine’s cooling system, working in conjunction with the thermostat housing to regulate coolant flow and maintain engine temperature within safe operating limits. Proper installation, maintenance, and understanding of its role are essential for ensuring the efficient operation of heavy-duty truck engines.
