3649040
Water Transfer Tube
Cummins®

Introduction

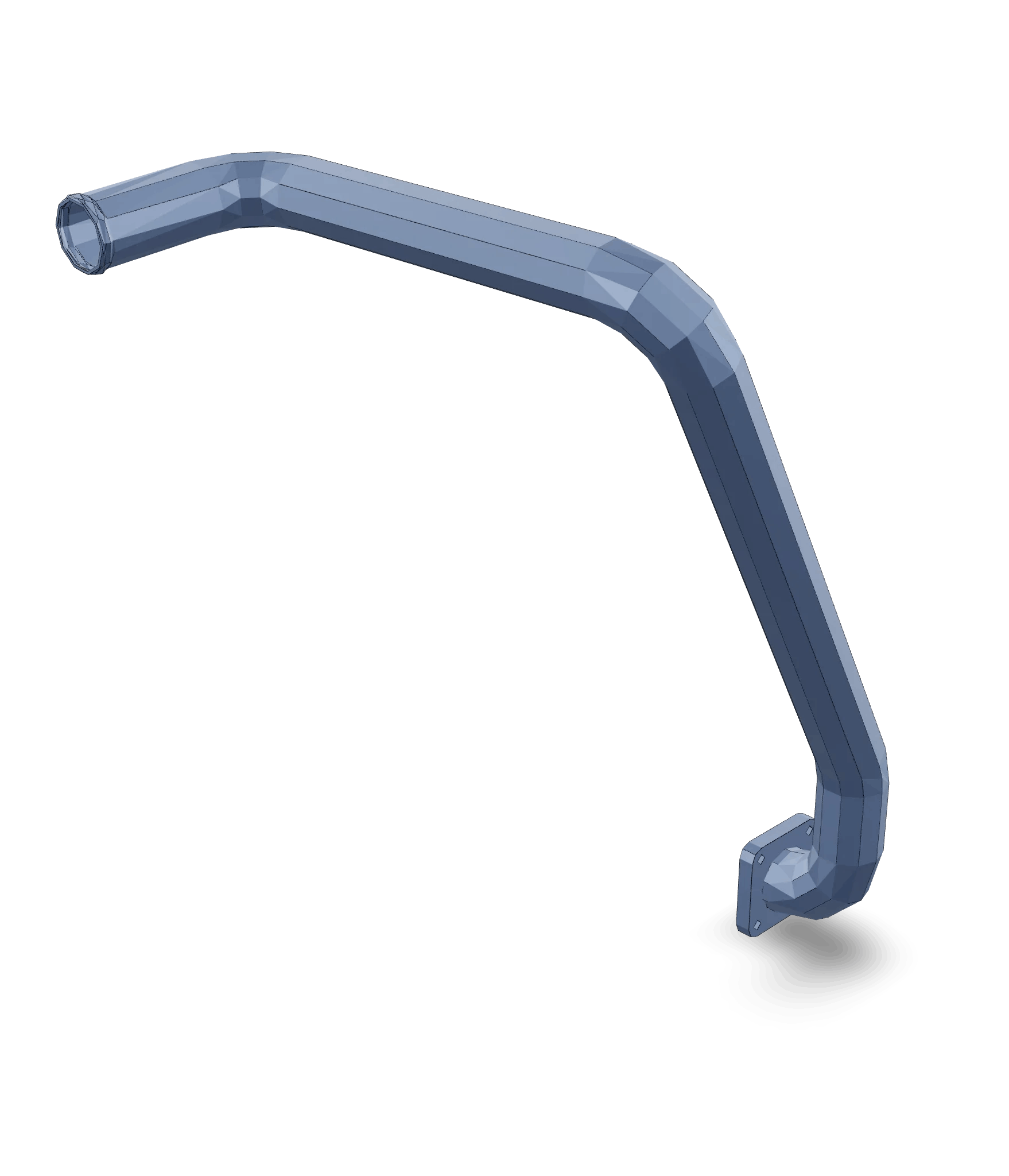

The Cummins 3649040 Water Transfer Tube is a component designed for use in heavy-duty trucks. It facilitates the transfer of coolant between the engine and the radiator, ensuring efficient heat dissipation and maintaining optimal engine operating temperatures.

Function and Operation

The Water Transfer Tube operates within the truck’s cooling system by providing a conduit for coolant to flow from the engine to the radiator and back. This circulation helps to absorb heat generated by the engine and dissipate it through the radiator, where it is cooled by air passing through the fins. The efficient transfer of coolant is vital for maintaining engine temperature within safe limits, which is important for engine performance and longevity ¹.

Key Features

This Cummins part is constructed from durable materials that are resistant to corrosion and high temperatures. It features secure connection points that ensure a tight seal, preventing coolant leaks. The design of the tube may include reinforced sections to withstand the pressure of the cooling system and ensure longevity under demanding conditions ².

Benefits

The use of the Cummins 3649040 Water Transfer Tube offers several advantages. It provides improved coolant flow, which enhances the engine’s cooling efficiency. This can lead to better overall engine performance and may contribute to extending the engine’s service life by preventing overheating. The tube’s robust construction also ensures reliability in harsh operating environments typical of heavy-duty truck applications ³.

Installation and Compatibility

Proper installation of the Water Transfer Tube involves following manufacturer guidelines to ensure it is correctly positioned and securely connected within the cooling system. It is important to use the appropriate tools and take necessary precautions, such as allowing the engine to cool before beginning work to avoid burns from hot coolant. Compatibility information for specific truck models and engine types should be consulted to ensure the correct application of this component.

Maintenance and Troubleshooting

Regular maintenance of the Water Transfer Tube includes checking for signs of wear or damage, ensuring connections are tight, and looking for any coolant leaks. If issues arise, such as reduced coolant flow or leaks, diagnostic steps should be taken to identify the cause, which may involve inspecting the tube for blockages or damage and repairing or replacing it as necessary.

Safety Considerations

When working with the Water Transfer Tube, it is important to observe safety guidelines. This includes handling hot coolant with care to avoid burns and ensuring that the cooling system is properly pressurized to prevent coolant from boiling over. Always follow safety procedures when performing maintenance or repairs on the cooling system.

Cummins Overview

Cummins Inc. is a well-established manufacturer with a history of producing diesel engines and related components. The company has built a reputation for quality and reliability across various industries, including heavy-duty trucking. Cummins components are designed to meet the demanding requirements of these applications, providing durability and performance that professionals can rely on.

Role of Part 3649040 Water Transfer Tube in Engine Systems

The 3649040 Water Transfer Tube is integral to the efficient operation of both the primary engine system and the auxiliary cooling system.

In the primary engine system, the water transfer tube facilitates the circulation of coolant between the engine block and the radiator. This ensures that the engine maintains optimal operating temperatures, preventing overheating and potential damage to engine components. The tube acts as a conduit, allowing coolant to absorb heat from the engine and transfer it to the radiator, where it is dissipated into the atmosphere.

In the auxiliary cooling system, the water transfer tube plays a similar role but is specifically designed to manage the cooling needs of additional components such as turbochargers, aftercoolers, or intercoolers. By ensuring a consistent flow of coolant to these components, the tube helps maintain their efficiency and longevity. This is particularly important in high-performance or heavily-loaded engines where auxiliary cooling systems are essential to prevent overheating and ensure reliable operation.

Conclusion

The Cummins 3649040 Water Transfer Tube is a key component in maintaining the thermal balance of both the primary and auxiliary cooling systems, contributing to the overall reliability and performance of the engine. Its robust construction and efficient design make it a critical part of the cooling system in heavy-duty truck applications.
