3643628

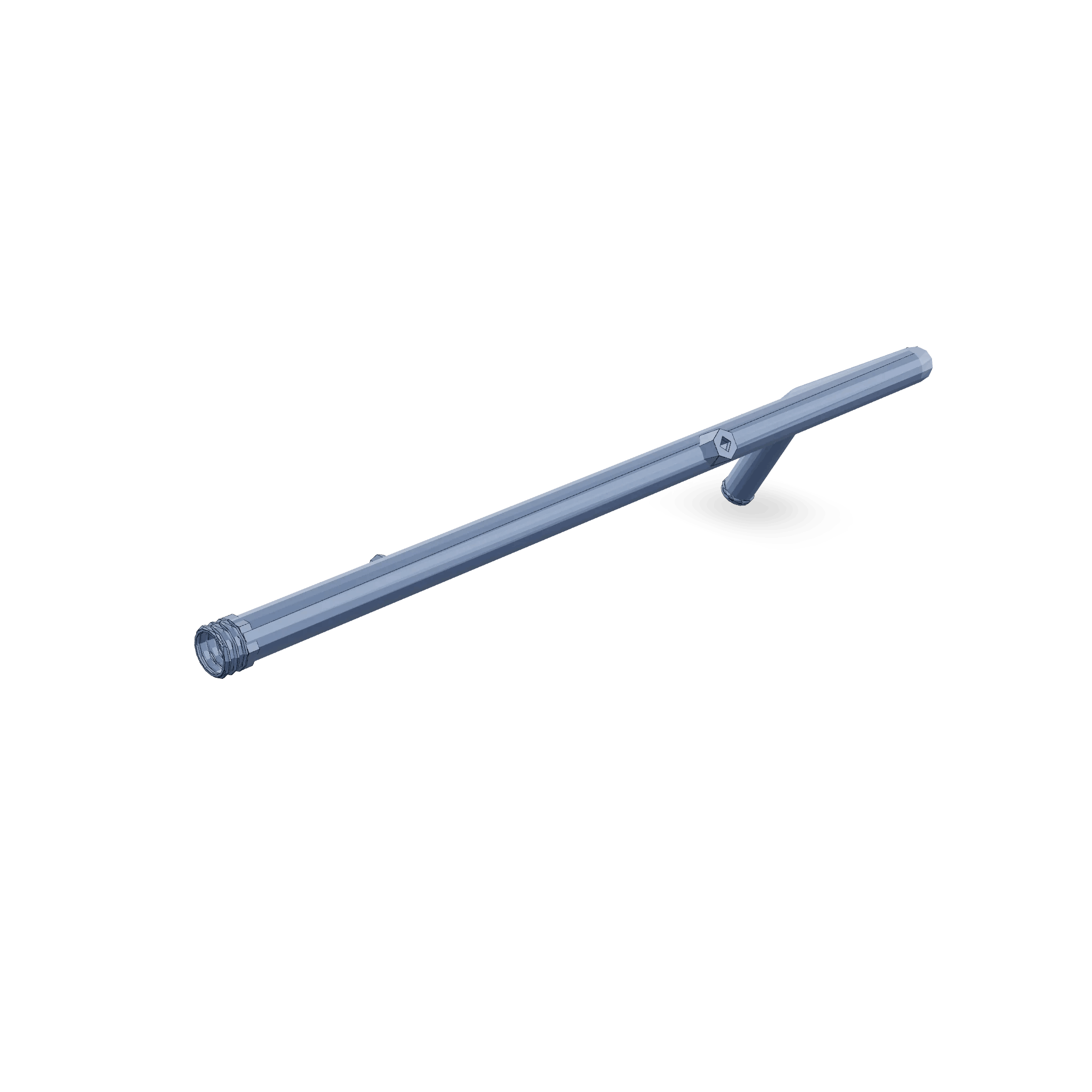

Water Transfer Tube
Cummins®

The Cummins 3643628 Water Transfer Tube is a component designed to facilitate the efficient operation of heavy-duty trucks by ensuring proper coolant circulation. Its role in the cooling system is significant, as it helps maintain optimal engine temperature, which is vital for the performance and longevity of the truck ¹.

Basic Concepts of Water Transfer Tubes

A water transfer tube is a conduit within the cooling system of a truck that allows coolant to move between various components, such as the engine and radiator. This movement is crucial for dissipating heat generated by the engine, thereby preventing overheating and ensuring the engine operates within its designed temperature range ².

Purpose of the Cummins 3643628 Water Transfer Tube

This Cummins part is specifically engineered to transfer coolant between the engine and radiator. This transfer is integral to the cooling process, as it allows the coolant to absorb heat from the engine and release it into the radiator, where it is cooled by air passing through the radiator fins ³.

Key Features

3643628 is constructed from durable materials that resist corrosion and wear, ensuring longevity in harsh operating conditions. Its design includes precise fittings and connections that facilitate a secure and leak-free installation. Additionally, the tube may feature reinforced sections to withstand high pressure and temperature fluctuations within the cooling system.

Benefits

The use of this part offers several advantages. It provides improved coolant flow, which enhances the efficiency of the engine cooling system. This can lead to better overall engine performance and potentially extend the engine’s lifespan by maintaining consistent operating temperatures.

Installation and Compatibility

When installing this part, it is important to follow the manufacturer’s guidelines to ensure a proper fit and function. This includes checking for compatibility with specific truck models and engine types to avoid any issues with fitment or performance.

Maintenance and Troubleshooting

Regular maintenance of this part involves inspecting for signs of wear, such as cracks or leaks, and cleaning the tube to prevent blockages. Troubleshooting common issues may involve checking for proper coolant levels, ensuring connections are secure, and addressing any leaks promptly to maintain the integrity of the cooling system.

Common Failure Modes

Water transfer tubes can experience various failure modes, including corrosion due to coolant chemistry, cracking from thermal stress, or blockages from debris within the coolant. These failures can impact the cooling system’s performance, leading to inefficient heat dissipation and potential engine overheating.

Replacement Procedures

Replacing a faulty Water Transfer Tube requires careful attention to detail. The process involves disconnecting the old tube, installing the new one with the appropriate tools, and ensuring all connections are secure. Post-replacement, it is important to test the system to confirm that coolant flows correctly and that there are no leaks.

Cummins Overview

Cummins Inc. is a global power leader that designs, manufactures, and distributes engines, filtration, and power generation products. With a strong reputation in the automotive and heavy-duty truck industries, Cummins is known for its commitment to quality, innovation, and customer satisfaction, providing a wide range of products that meet the demanding requirements of various applications.

Water Transfer Tube Part 3643628 in Cummins Engines

The Water Transfer Tube part number 3643628 is a critical component in the cooling systems of various Cummins engines, including the QSK50, CM2350, and K108. This part is integral to maintaining optimal engine performance by ensuring efficient heat transfer and preventing overheating.

QSK50 and CM2350 Engines

In the QSK50 and CM2350 engines, 3643628 plays a vital role in the engine’s cooling mechanism. These engines are known for their robust design and high power output, often used in heavy-duty applications such as marine and industrial settings. The water transfer tube ensures that coolant is effectively circulated throughout the engine, maintaining consistent temperatures and preventing thermal stress on engine components.

K108 Engine

The K108 engine also relies on the Water Transfer Tube 3643628 to manage its cooling system. This engine is typically found in on-highway applications, where it is crucial to maintain reliable performance under varying conditions. The water transfer tube in the K108 engine helps in the efficient distribution of coolant, ensuring that the engine operates within its optimal temperature range, thus enhancing durability and efficiency.

Common Functionality

Across these engines, the water transfer tube is designed to withstand high pressures and temperatures, ensuring longevity and reliability. It is engineered to fit seamlessly into the engine’s cooling system, providing a secure and efficient pathway for coolant flow. This part’s compatibility with the QSK50, CM2350, and K108 engines underscores its importance in maintaining the overall health and performance of these engines.

Role of Part 3643628 Water Transfer Tube in Engine Systems

The part 3643628 Water Transfer Tube is an essential component in the auxiliary cooling system of various engine setups. Its primary function is to facilitate the efficient transfer of coolant between the main engine cooling system and the auxiliary cooling system.

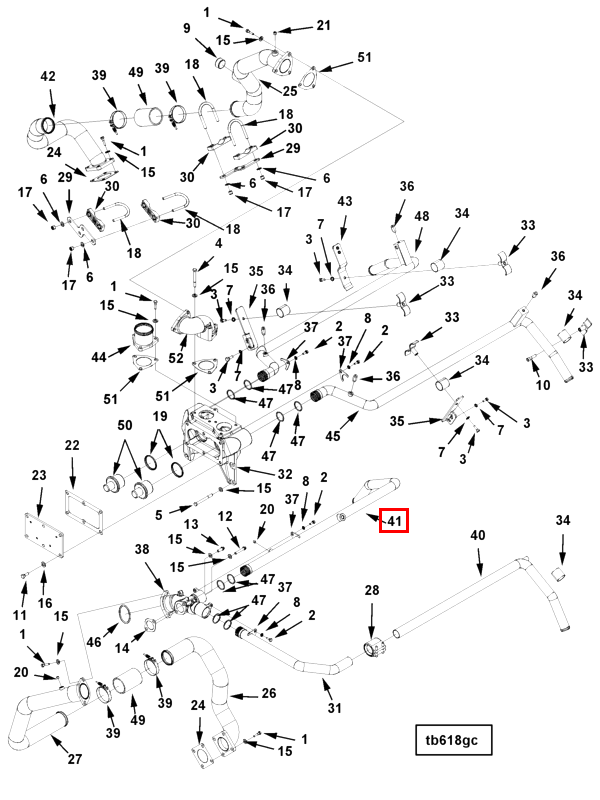

In the auxiliary cooling system, the Water Transfer Tube connects to the thermostat housing and the auxiliary water pump. This connection ensures a continuous flow of coolant, which is vital for maintaining optimal operating temperatures in both the main and auxiliary systems. The tube’s design allows it to handle the pressure and temperature variations that occur during engine operation, ensuring reliable performance.

Additionally, the Water Transfer Tube plays a significant role in the overall thermal management of the engine. By providing a dedicated pathway for coolant, it helps to dissipate heat more effectively, reducing the risk of overheating and enhancing the engine’s durability and efficiency.

Conclusion

In summary, the integration of the Water Transfer Tube within the auxiliary cooling system is designed to support the engine’s cooling requirements, ensuring that both the main and auxiliary systems operate within their specified temperature ranges. This component is integral to the engine’s thermal management strategy, contributing to its overall performance and longevity.
