3641956
Water Bypass Tube
Cummins®

Introduction

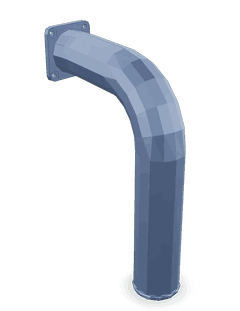

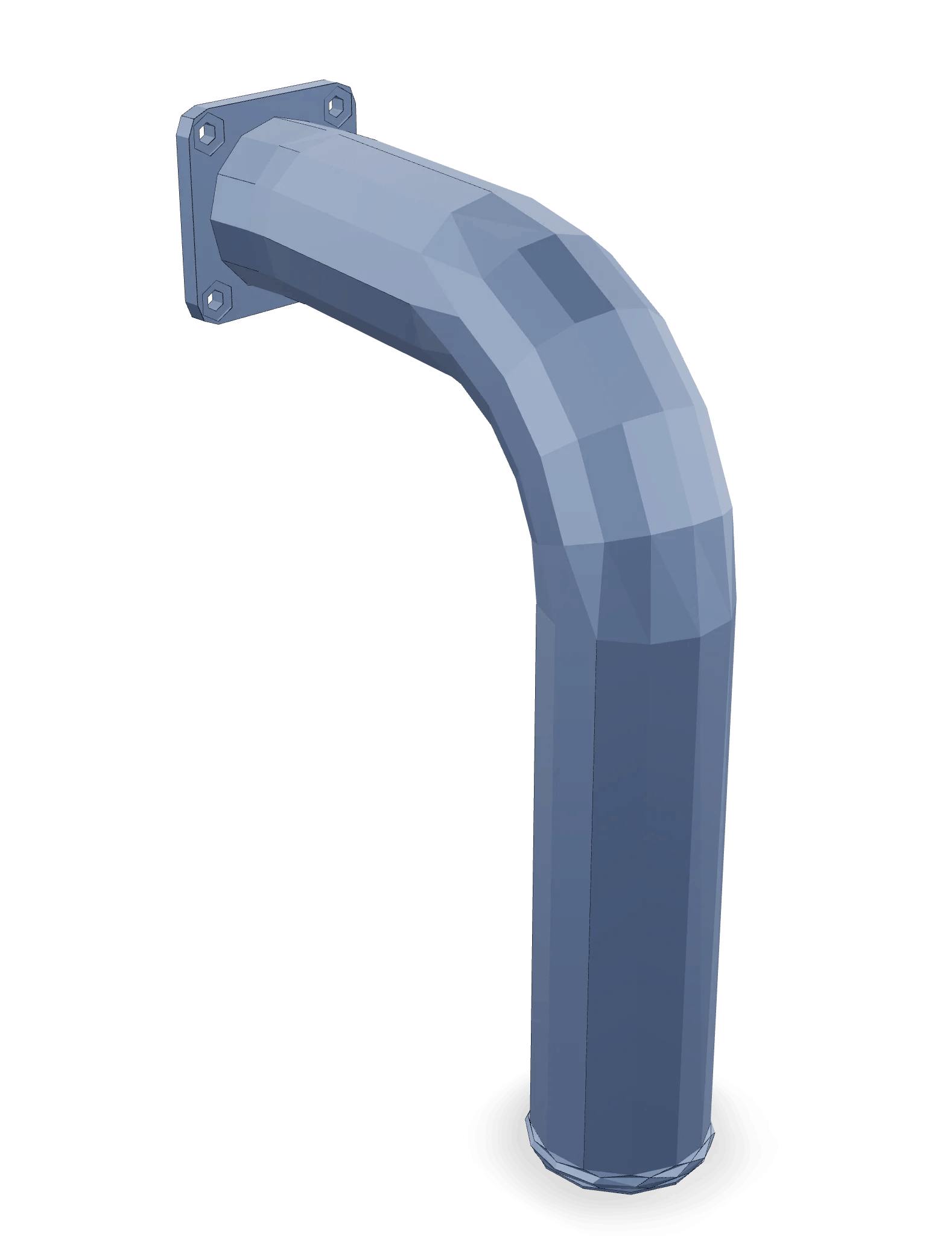

The Cummins 3641956 Water Bypass Tube is a component designed for use in the cooling systems of heavy-duty trucks. Its purpose is to regulate the flow of coolant within the engine, ensuring that the engine maintains an optimal operating temperature. This is achieved through a carefully engineered design that allows for efficient heat management, contributing to the overall performance and longevity of the engine ¹.

Function and Operation

The Water Bypass Tube operates by providing an alternative path for coolant to flow when the thermostat is closed. This ensures that coolant continues to circulate through the engine block, even when the radiator is not yet engaged in the cooling process. The tube interacts with the thermostat and radiator to maintain a consistent coolant flow, which helps in stabilizing engine temperature and preventing overheating ².

Purpose of the Water Bypass Tube

The specific role of the Water Bypass Tube is to maintain optimal engine temperature by allowing coolant to bypass the thermostat and continue circulating through the engine block. This ensures that the engine operates efficiently and avoids the risks associated with overheating, such as reduced performance and potential damage to engine components ³.

Key Features

The Cummins 3641956 Water Bypass Tube is constructed from durable materials that are resistant to corrosion and high temperatures. Its design includes precise engineering to ensure a proper fit and function within the engine cooling system. The build quality is high, with attention to detail in the manufacturing process to ensure reliability and performance.

Benefits

The advantages provided by the Water Bypass Tube include improved engine efficiency, as it helps maintain a stable operating temperature. This can lead to prolonged component lifespan, as consistent temperatures reduce the stress on engine parts. Additionally, the tube ensures reliable performance under varying operating conditions, contributing to the overall durability of the engine.

Installation and Compatibility

Proper installation of the Water Bypass Tube involves ensuring that it is correctly positioned within the engine cooling system. This may require specific preparations or considerations to ensure compatibility with the engine model. Following manufacturer guidelines is important to achieve the best results and ensure the component functions as intended.

Maintenance and Troubleshooting

Routine maintenance practices for the Water Bypass Tube include regular inspections for signs of wear or damage. It is also important to ensure that the tube is free from blockages and that there are no leaks in the system. Troubleshooting common issues may involve checking for proper coolant flow and addressing any corrosion or damage that could affect performance.

Common Failure Modes

Typical failure modes associated with the Water Bypass Tube include leaks, blockages, or corrosion. These issues can impact engine performance by disrupting the coolant flow and leading to overheating or inefficient cooling. Regular maintenance and inspections can help identify and address these problems before they cause significant issues.

Replacement and Upgrades

When replacing a faulty Water Bypass Tube, it is important to follow manufacturer guidelines to ensure proper installation and function. Considerations for upgrading to newer or alternative designs may include improvements in material durability, design efficiency, or compatibility with updated engine models. This can lead to enhanced performance and reliability in the engine cooling system.

Cummins Overview

Cummins Inc. is a well-established company in the automotive and heavy-duty truck industry, known for its high-quality engine and component offerings. With a history of innovation and reliability, Cummins products are designed to meet the demanding requirements of heavy-duty applications, providing efficient and durable solutions for engine performance and maintenance.

Role of Part 3641956 Water Bypass Tube in Engine Systems

This Cummins part is an essential component in the thermal management system of an engine. It works in conjunction with the thermostat and housing to regulate the flow of coolant, ensuring optimal engine temperature under varying operating conditions.

Interaction with Thermostat

The thermostat is a temperature-sensitive valve that controls the flow of coolant between the engine and the radiator. When the engine is cold, the thermostat remains closed, directing coolant through the water bypass tube. This allows the coolant to circulate within the engine block and cylinder head, warming the engine more quickly. As the engine reaches operating temperature, the thermostat opens, allowing coolant to flow to the radiator for cooling.

Integration with Housing

The housing, which encases the thermostat, is directly connected to the water bypass tube. This connection ensures a seamless pathway for coolant when the thermostat is closed. The housing is typically bolted to the engine block and provides a secure environment for the thermostat to operate. The water bypass tube extends from the housing to other critical points in the engine cooling system, such as the water pump or directly back into the engine block.

Overall Function

By providing an alternative route for coolant flow, the water bypass tube helps maintain consistent engine temperature, especially during cold starts or when the thermostat is not fully open. This component is integral to the efficient operation of the cooling system, preventing overheating and ensuring the engine operates within its designed temperature range.

Conclusion

The Cummins 3641956 Water Bypass Tube plays a vital role in maintaining optimal engine temperature and ensuring efficient operation of the cooling system. Its durable construction, precise engineering, and reliable performance make it a critical component for heavy-duty truck engines. Regular maintenance and proper installation are essential to maximize the benefits of this part and ensure the longevity and efficiency of the engine.
