3171321

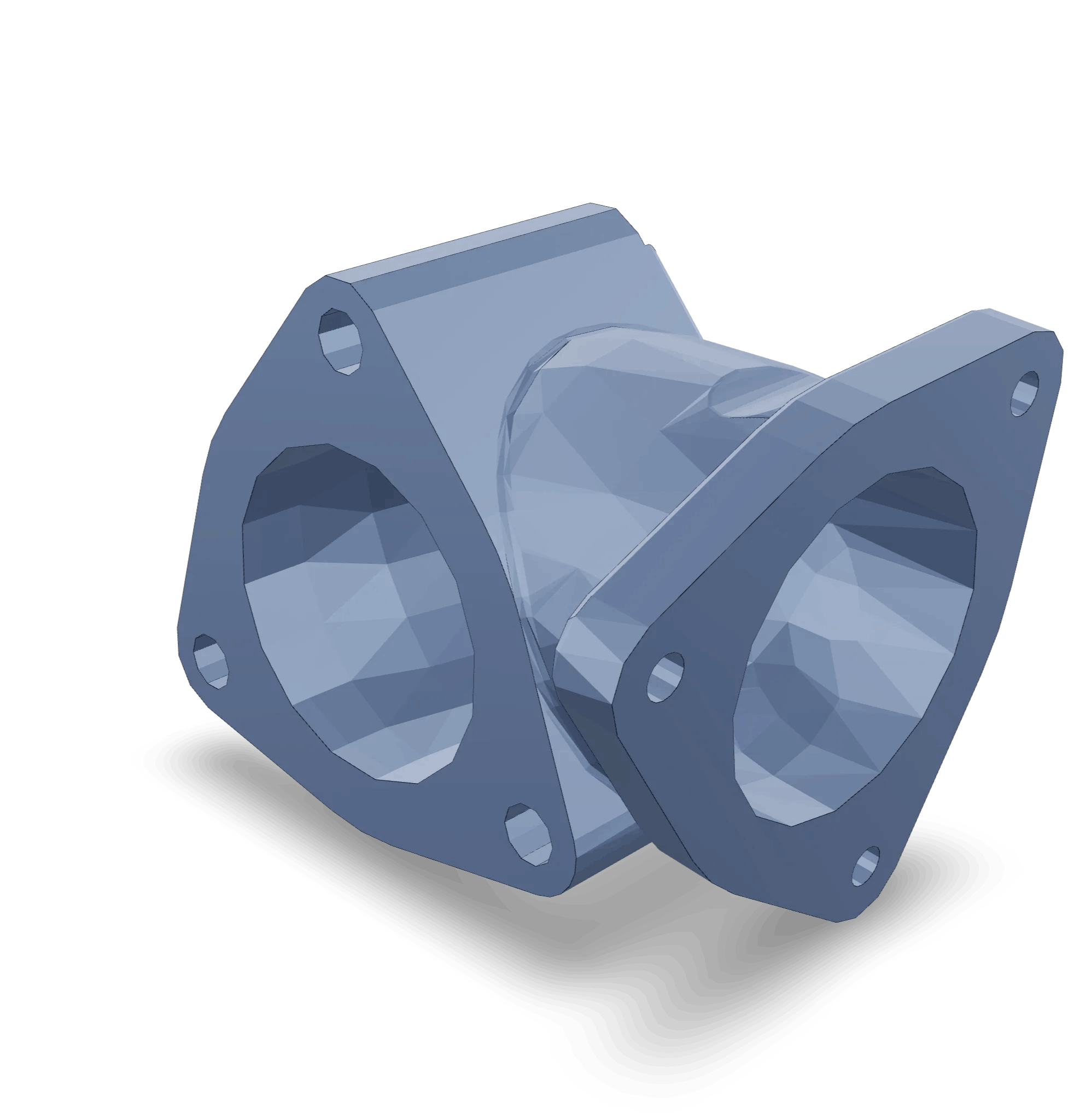

Water Outlet Connection
Cummins®

Introduction

The Water Outlet Connection 3171321, a component designed by Cummins, is integral to the engine cooling systems of heavy-duty trucks. This part facilitates the efficient transfer of coolant from the engine to the radiator, ensuring optimal engine temperature regulation and performance ¹.

Function and Operation

This Cummins part directs the flow of coolant from the engine to the radiator. Upon reaching operating temperature, the thermostat opens, allowing coolant to flow through the outlet connection into the radiator for cooling before returning to the engine. This circulation is vital for preventing overheating and ensuring consistent engine performance ².

Key Features

The Water Outlet Connection 3171321 is constructed from high-quality, corrosion-resistant materials designed to withstand high temperatures. It features precise sealing mechanisms to prevent coolant leaks, maintaining the integrity of the cooling system. Additionally, its design may include reinforced walls or integrated gaskets for a secure and leak-free connection.

Benefits

By ensuring a consistent and efficient flow of coolant, this part contributes to improved engine performance and reliability. Its design minimizes the risk of leaks, reducing downtime for repairs. Furthermore, its robust construction ensures long-term durability under the strenuous conditions typical of heavy-duty truck operations.

Installation and Compatibility

Proper installation of the Water Outlet Connection 3171321 is essential for its effective operation. It is recommended to ensure a clean and undamaged mounting surface and to follow manufacturer specifications for torque settings to prevent damage or leaks. Compatibility with specific truck models should be verified for optimal performance and integration within the engine cooling system.

Maintenance and Troubleshooting

Regular maintenance of the Water Outlet Connection 3171321 is recommended to ensure its efficient operation. This includes periodic inspections for wear, corrosion, or leaks. Common issues such as coolant leaks or obstructions in the coolant flow can be addressed through cleaning, replacing seals, or, in severe cases, replacing the component entirely.

Common Failures and Solutions

Typical failure modes for the Water Outlet Connection 3171321 include leaks due to worn seals or gaskets, corrosion, and blockages from debris. Solutions involve replacing worn seals or gaskets, cleaning or replacing corroded components, and flushing the cooling system to remove debris. Preventive measures include regular maintenance checks and ensuring the cooling system is free from contaminants.

Cummins Overview

Cummins Inc., a global power leader, designs, manufactures, and distributes engines, filtration, and power generation products. With a history spanning over a century, Cummins has established a reputation for quality, reliability, and performance in the automotive industry. Its product range includes engines and components for on- and off-highway applications, demonstrating a commitment to innovation and customer satisfaction.

Compatibility with Cummins Engines

The Water Outlet Connection part 3171321 is designed to fit seamlessly with the QSK60 CM500, QSK60 CM850 MCRS, and QSK78 CM500 engines. This part is integral in managing the flow of coolant within the engine system, ensuring optimal temperature regulation and preventing overheating.

For the QSK60 series, which includes both the CM500 and CM850 variants, the Water Outlet Connection part 3171321 is engineered to integrate with the engine’s cooling system architecture. The part’s design allows for a precise fit, facilitating efficient coolant circulation and maintaining the engine’s operational efficiency.

Similarly, the QSK78 CM500 engine benefits from this part’s compatibility, ensuring that the coolant pathways are effectively managed. The Water Outlet Connection part 3171321 is crafted to align with the specific design requirements of each engine model, providing a reliable connection point for the coolant outlet.

By using the Water Outlet Connection part 3171321, technicians and operators can ensure that the coolant system operates smoothly, contributing to the overall longevity and performance of the engines.

Conclusion

The Water Outlet Connection 3171321 by Cummins plays a crucial role in the efficient operation of engine cooling systems in heavy-duty trucks. Its design and functionality are tailored to ensure optimal engine performance, reliability, and longevity. Proper installation, maintenance, and troubleshooting are essential to maximize the benefits of this part, contributing to the overall efficiency and durability of the engine systems it serves.
