3067329

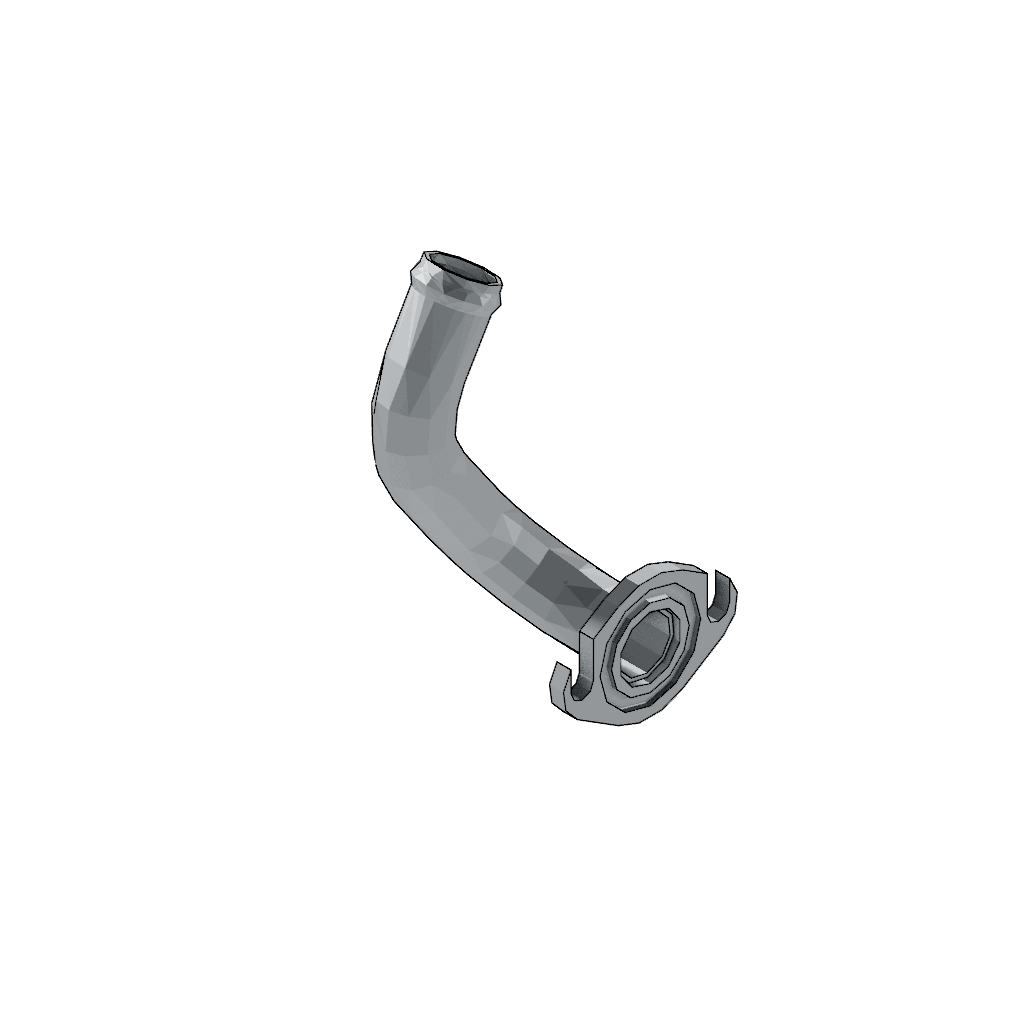

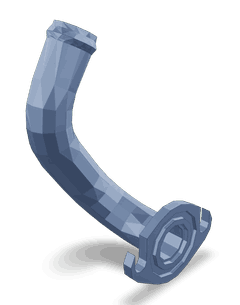

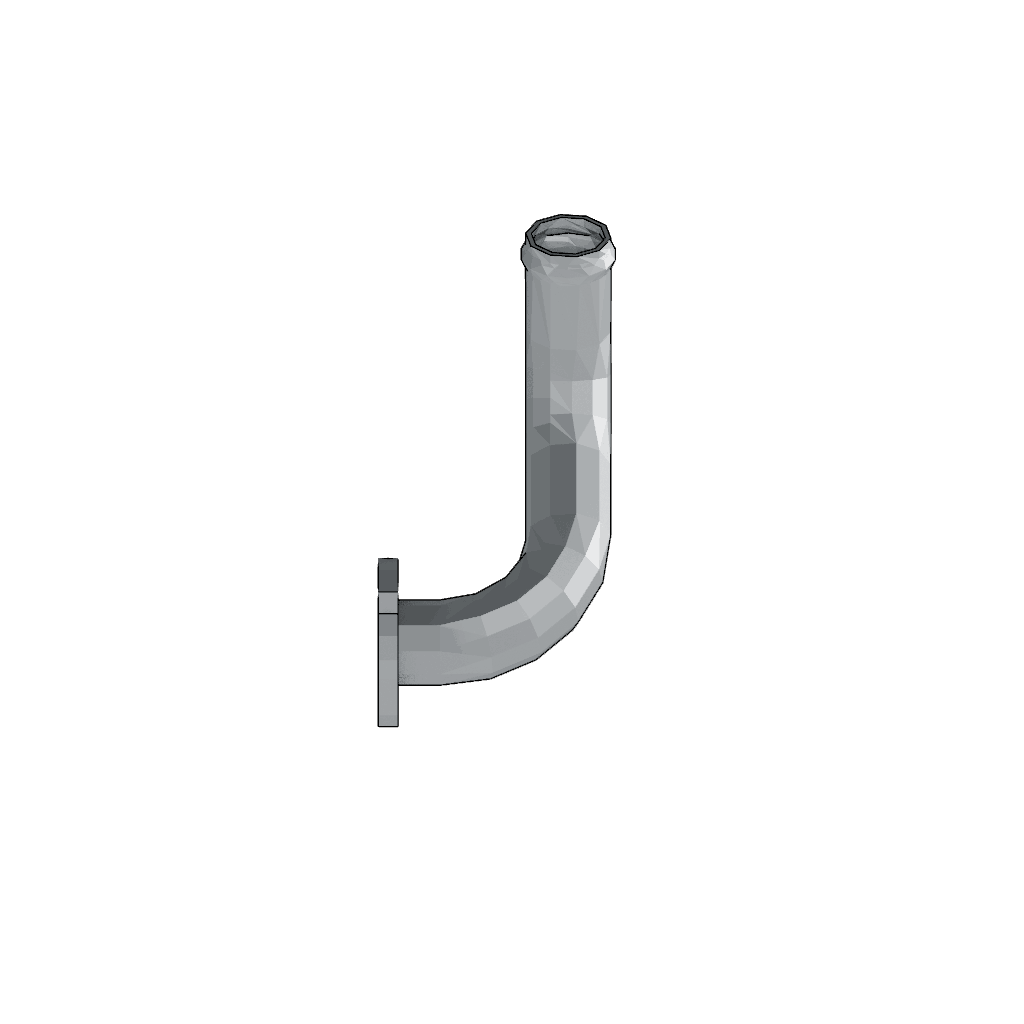

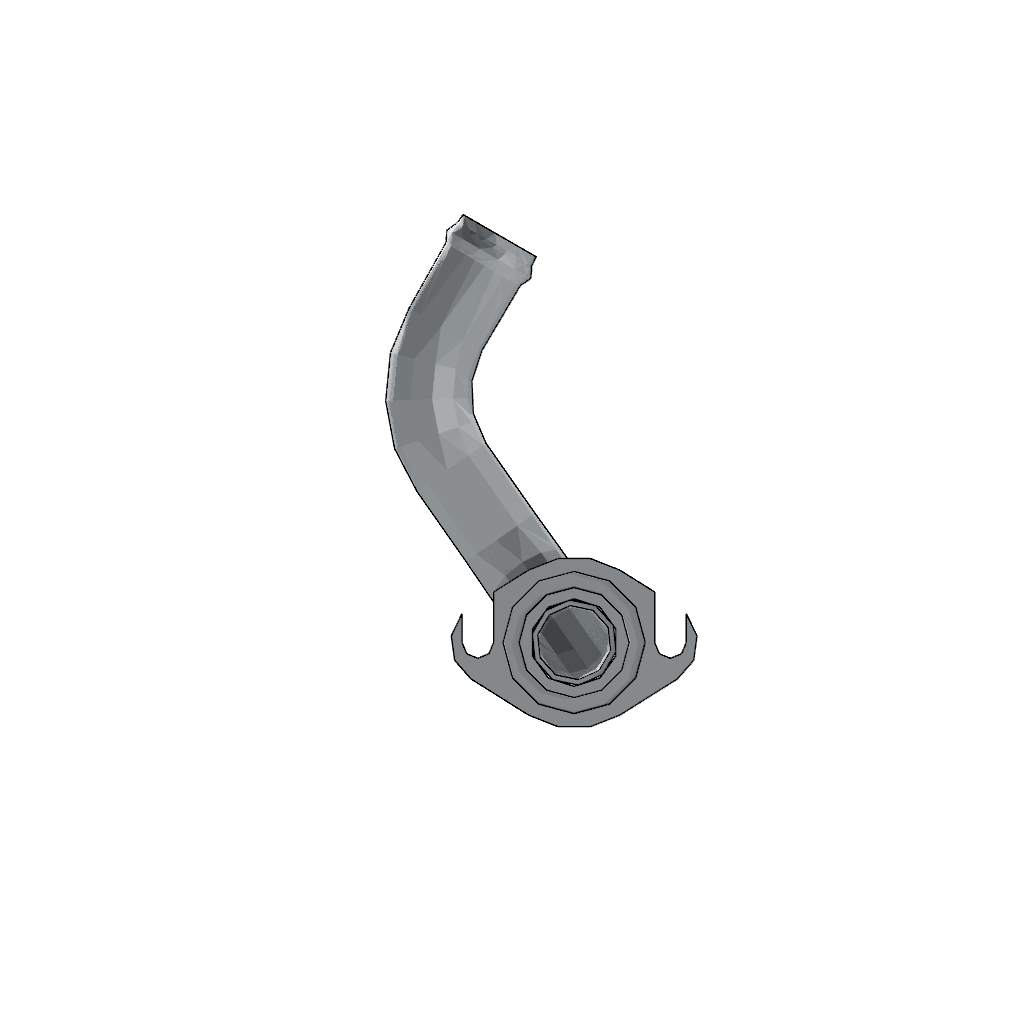

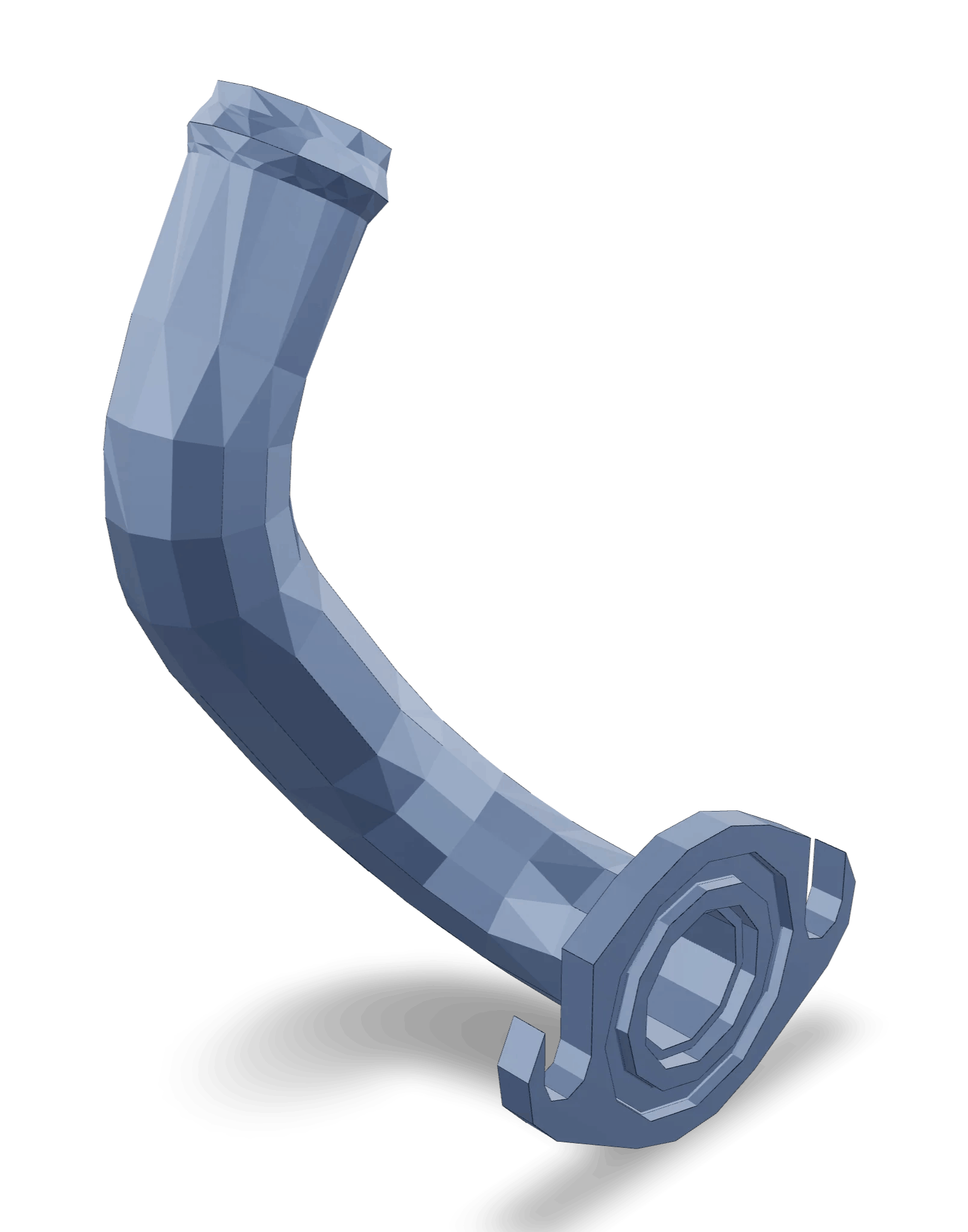

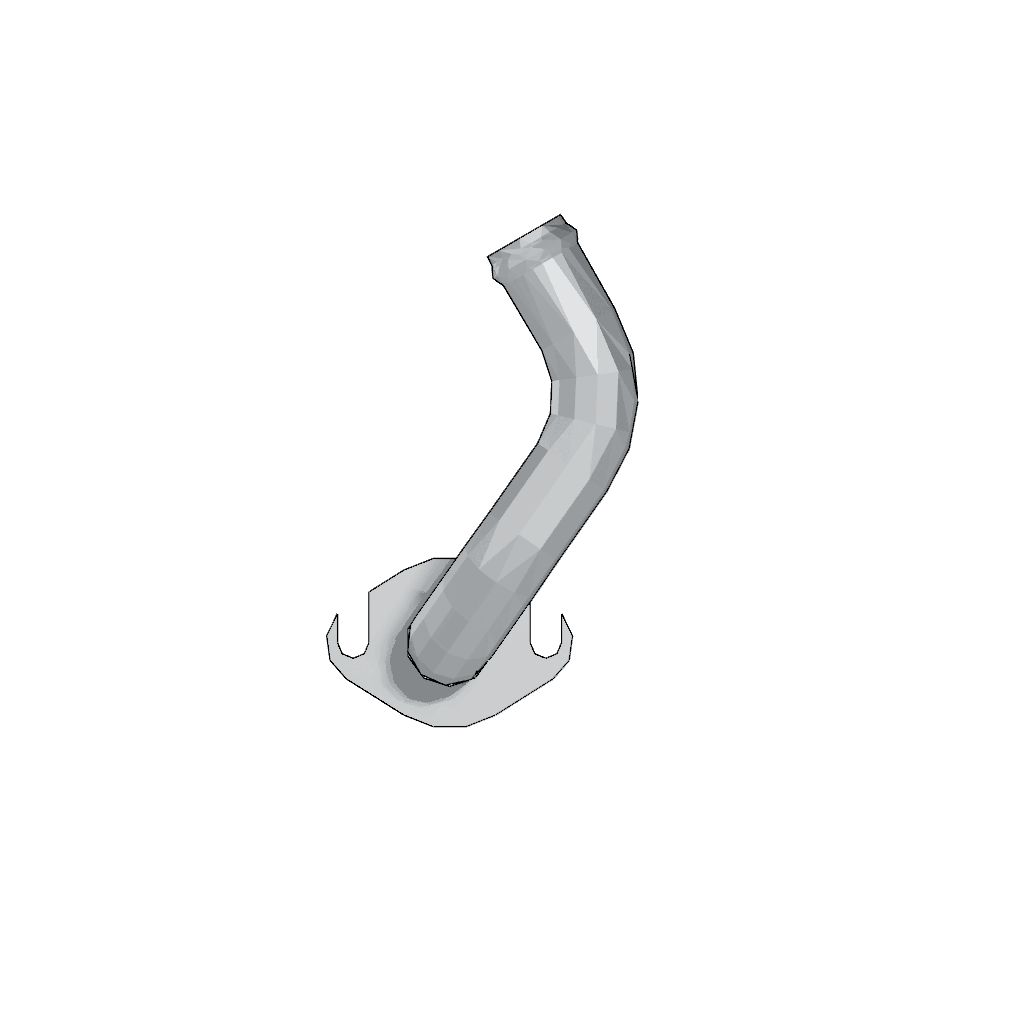

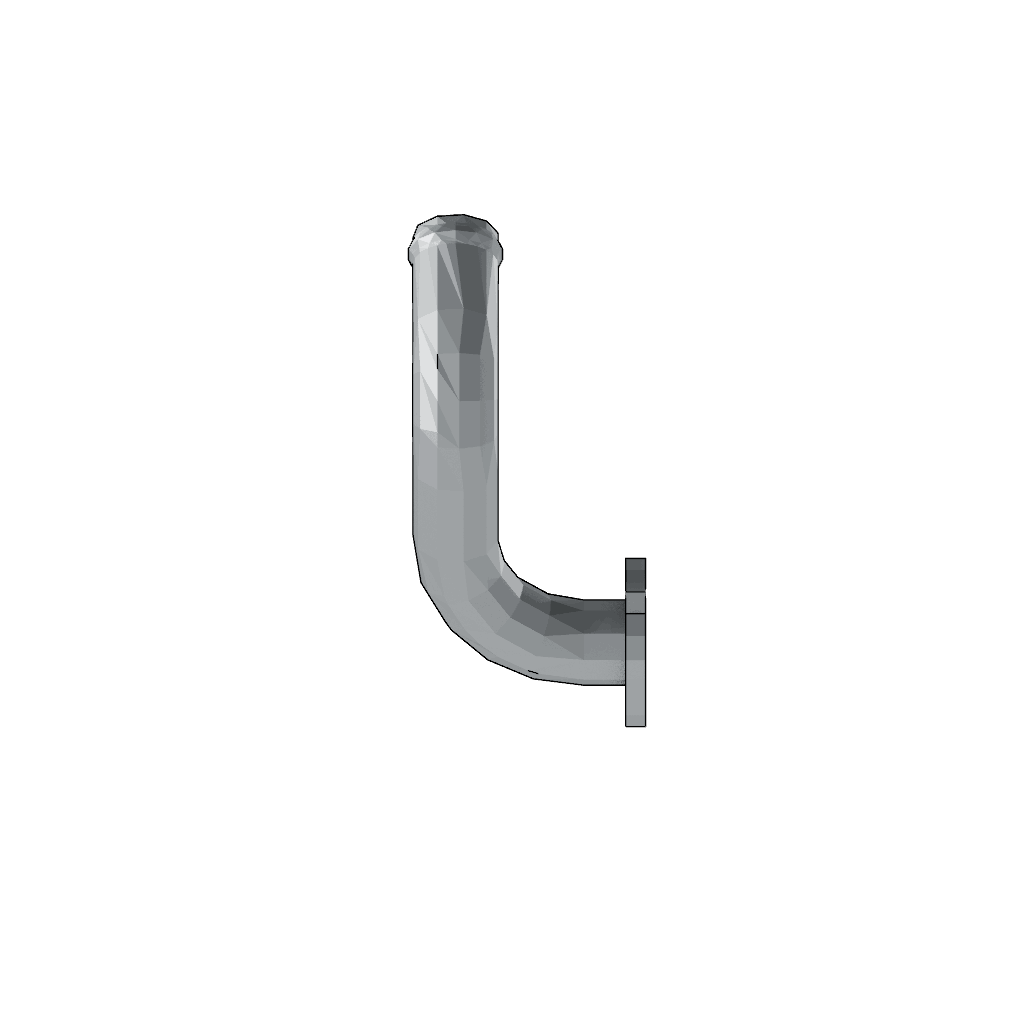

Water Inlet Tube
Cummins®

The Cummins 3067329 Water Inlet Tube is a component designed for use in the cooling systems of heavy-duty trucks. Its purpose is to facilitate the efficient flow of coolant into the engine, playing a role in maintaining optimal engine temperature and ensuring the engine operates within safe thermal limits.

Basic Concepts of Water Inlet Tubes

A Water Inlet Tube is a conduit that directs coolant from the radiator into the engine. Within the engine cooling system, it serves to regulate the flow of coolant, ensuring that the engine remains at an optimal operating temperature. This regulation is vital for the engine’s efficiency, performance, and longevity, as it prevents overheating and potential damage to engine components ¹.

Purpose of the 3067329 Water Inlet Tube

The Cummins 3067329 Water Inlet Tube is specifically engineered to direct coolant flow to the engine in heavy-duty trucks. By ensuring a consistent and adequate supply of coolant, it helps in dissipating heat generated by the engine, thereby maintaining engine temperature within specified limits. This function is integral to the overall operation and reliability of the truck.

Key Features

The Cummins 3067329 Water Inlet Tube is characterized by several key features that enhance its performance and durability. It is constructed from high-quality materials that are resistant to corrosion and wear, ensuring longevity even under the demanding conditions typical of heavy-duty truck operations. Its design includes precise fittings and connections that facilitate a secure and leak-free installation. Additionally, the tube may incorporate features such as reinforced sections to withstand high pressure and temperature fluctuations within the cooling system.

Benefits

Utilizing the Cummins 3067329 Water Inlet Tube offers several advantages. It contributes to improved engine cooling efficiency, which is crucial for maintaining engine performance and preventing overheating. The durable construction of the tube ensures it can withstand the rigors of heavy-duty use, providing long-term reliability. Furthermore, by ensuring optimal engine temperature, the tube indirectly supports overall engine performance and longevity.

Installation Process

Installing the Cummins 3067329 Water Inlet Tube requires careful attention to detail to ensure a secure and effective fit. The process involves preparing the installation site by cleaning and inspecting the area for any damage or debris. The necessary tools for installation include wrenches for tightening connections and possibly a torque wrench to ensure connections are tightened to the manufacturer’s specifications. It is important to follow the manufacturer’s guidelines for installation to ensure the tube is properly positioned and secured, preventing leaks and ensuring efficient coolant flow.

Troubleshooting Common Issues

Common issues with Water Inlet Tubes may include leaks or blockages, which can affect the efficiency of the cooling system. Troubleshooting these issues involves inspecting the tube and connections for signs of wear, corrosion, or damage. If a leak is detected, it may be necessary to replace gaskets or seals, or in some cases, the tube itself. Blockages can often be cleared by flushing the cooling system, but if the issue persists, further investigation may be required to identify the source of the blockage.

Maintenance Tips

To ensure the Cummins 3067329 Water Inlet Tube operates efficiently and has a long service life, regular maintenance is recommended. This includes inspecting the tube and connections for signs of wear or damage, cleaning the area around the tube to prevent debris accumulation, and ensuring all connections are tight and secure. Additionally, following the manufacturer’s recommendations for coolant replacement and system flushing can help maintain the efficiency of the cooling system.

Compatibility with Cummins Engines

The Water Inlet Tube, part number 3067329, manufactured by Cummins, is a critical component in the cooling system of various Cummins engines. This part is designed to facilitate the flow of coolant into the engine block, ensuring efficient thermal management and preventing overheating.

V903 and VTA903 Engines

The Water Inlet Tube (3067329) is compatible with the V903 and VTA903 engines. These engines are part of the Cummins range known for their robust performance and reliability in heavy-duty applications. The tube interfaces with the engine’s water pump and the coolant passages, ensuring a steady flow of coolant. This is crucial for maintaining optimal engine temperature and preventing thermal stress on engine components.

CM2250 V105 Engine

The CM2250 V105 engine also utilizes the Water Inlet Tube (3067329). This engine is designed for high-performance applications, often found in industrial and marine settings. The inlet tube in this engine setup connects to the water pump and directs coolant into the engine block. This ensures that the engine operates within its specified temperature range, enhancing longevity and performance.

V105 Engine

The V105 engine, when equipped with the Water Inlet Tube (3067329), benefits from the efficient coolant flow that this part provides. This engine is typically used in various applications, including construction and agricultural machinery. The inlet tube’s role is to maintain a consistent coolant flow, which is essential for the engine’s cooling system to function effectively.

Role of Part 3067329 Water Inlet Tube in Engine Systems

The part 3067329 Water Inlet Tube is a component in the efficient operation of various engine systems. It is primarily responsible for directing water into the aftercooler, which is a vital part of the cooling process in turbocharged engines.

Integration with Aftercooler and Aftercooler Mounting

The Water Inlet Tube connects to the aftercooler, a heat exchanger designed to cool the compressed air from the turbocharger before it enters the engine’s combustion chamber. The aftercooler mounting ensures that the aftercooler is securely positioned within the engine bay. The Water Inlet Tube facilitates the flow of coolant into the aftercooler, enhancing its efficiency in reducing the temperature of the air, which in turn improves engine performance and reliability.

Interaction with Turbocharger and Manifold

In turbocharged engine systems, the turbocharger compresses the intake air, which increases its temperature. The Water Inlet Tube plays a significant role here by ensuring a consistent flow of coolant to the aftercooler. This cooled air then moves into the manifold, where it mixes with fuel before entering the combustion chamber. The efficient cooling provided by the Water Inlet Tube and aftercooler setup ensures that the air-fuel mixture is optimal, leading to better engine efficiency and power output.

Contribution to Air Intake System

The air intake system is designed to draw air into the engine, where it is mixed with fuel and combusted to produce power. The Water Inlet Tube, by cooling the air before it reaches the intake, ensures that the air density is higher. This denser air allows for more efficient combustion, contributing to overall engine performance. The cooled air also reduces the risk of detonation, a condition where the air-fuel mixture ignites prematurely, which can damage the engine.

Supporting the Mounting Aftercooler Arrangement

The mounting aftercooler arrangement is critical for the physical stability and operational efficiency of the aftercooler. The Water Inlet Tube fits into this arrangement by providing a secure connection point for the coolant supply. This ensures that the aftercooler receives a steady flow of coolant, which is essential for its function in maintaining the optimal temperature of the intake air. The secure fitting also prevents leaks and ensures that the cooling process is as efficient as possible.

Conclusion

The Cummins 3067329 Water Inlet Tube is a vital component in the cooling systems of heavy-duty trucks and various Cummins engines. Its role in facilitating efficient coolant flow contributes to maintaining optimal engine temperature, preventing overheating, and ensuring engine reliability and performance. Regular maintenance and proper installation are key to maximizing the benefits of this part.
